Θυμίζει λίγο τα ηχεία του ''θείου'' στα 90s ? Trenner & Friedl Osiris

Mr Spock

demokratischer - sektor
Μηνύματα
18.410
Reaction score
50.370
Trenner & Friedl Osiris loudspeaker

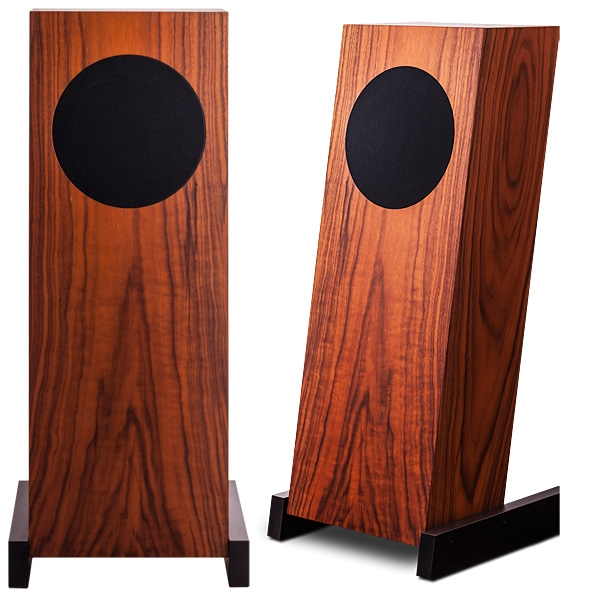

The Osiris's eye-catching 10-degree rearward slope gives it a windswept look recalling to my crusty memory the "blown away guy" from Maxell's print and television advertisements of the 1980s. The Osiris's proportions—it measures 33.5" high by 14.25" wide by 14.56" deep—reveal it for what it is: a small floorstander that should fit well in most living rooms.

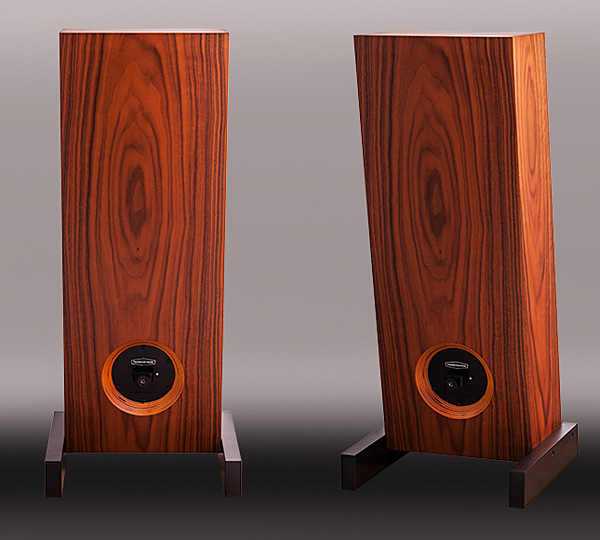

"The port is a hybrid between a classic bass reflex design and a horn," Friedl explained. "We use the floor as part of the system, so the alignment is not so dependent on the room. It's a very efficient solution. But much smaller than a real horn construction."






Description: Coaxial-driver, vented, floorstanding loudspeaker. Drive units: 6.5" paper cone woofer, coated with oil lacquer. 1" horn-loaded coaxial compression tweeter driver with titanium diaphragm. Frequency range: 38Hz–30kHz. Sensitivity: 88.7dB/2.83V/1m. Nominal impedance: 8 ohms.
Dimensions: 33.50" (850mm) H by 14.25" (360mm) W by 14.56" (370mm) D. Weight: 55lb (25kg).
Finishes: Walnut natural, walnut amaranth, walnut blazed.

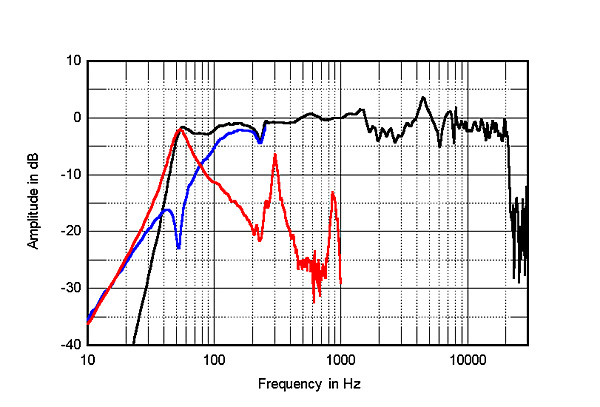

Trenner & Friedl Osiris, anechoic response on tweeter axis at 50", averaged across 30° horizontal window and corrected for microphone response, with the nearfield woofer (blue) and vent (red) responses and their complex sum (black) respectively plotted below 270Hz, 1kHz, and 270Hz.







Floor standing speaker
Golden ratio proportions
Multiplex birch wood of different densities
Multi layered lacquer finish
Paper cones impregnated with multi-layered finish of Italian oil varnish
Horn/Reflex bass alignment for ideal room matching

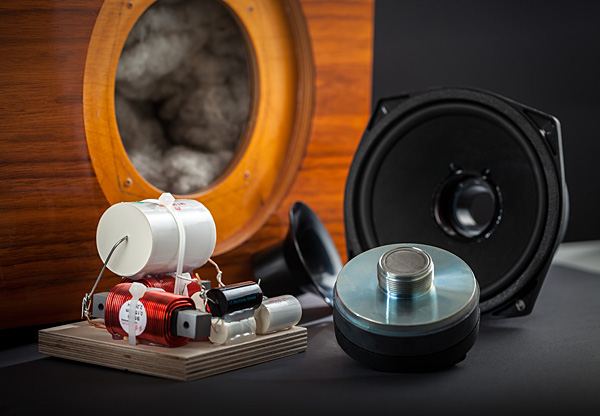

Finest crossover components by Mundorf
Coaxial loudspeaker principle; point source, smooth phase and perfect step response
Cardas Audio internal wire, also constructed in golden ratio proportions
Cardas Audio Patented Binding Posts
Can be placed close to walls and corners
Drive Units
1 x 6.5” Paper cone, coated with oil laquer

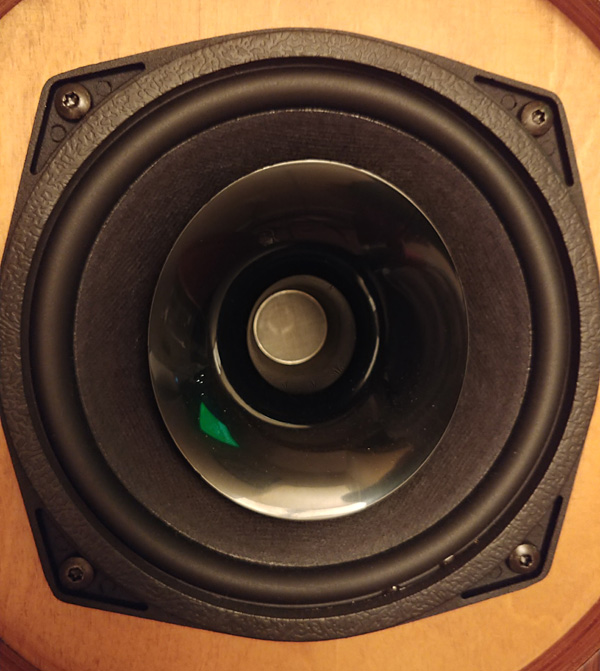

1 x 1” Horn loaded coaxial compression driver with titanium diaphragm
Frequency response
38 Hz (f-6 DB) to 30 kHz (f-3 DB)
Sensitivity
88.7 dB (2.83V/1m)
Impedance
8 Ohm






PeterMeni

DIY - "Επαγγελματίας"
Moderator
Μηνύματα
9.622
Reaction score
12.187
Δεν δικαιολογεί με τίποτε τα 8500 ντόλαρς που ζητάνε. Ακόμα και τα μισά φαντάζουν πάρα πολλά για αυτά που προσφέρει.


costas EAR

Δόκτωρ ΔιαXύσιος
Editor
Μηνύματα
51.104
Reaction score
124.664
Ελα μωρέ! ψαροκασέλλες που λέει και ο ear.
Κάνω λάθος;

Οκ, πάτε να τα πάρετε.

Καλές ακροάσεις.

Άκου κει 38 χερτζ απόκριση, με το μπας ριφλεξ να κατρακυλάει από τους 55..

Αυτό θέλει επιπρόσθετο γουφερ, και μετά σαμπ. Ούτε 100 κύκλους δε παίζει το "δήθεν γουφερ"...
Μόνο σαμπ, δε το σώζει...

Κείνη την κοκκινίλα του μπας ριφλεξ στους 300 κύκλους, μόλις 5 ντιμπι χαμηλότερα από το ηχείο; Πφχχχχχχχχχχχ



PeterMeni

DIY - "Επαγγελματίας"
Moderator
Μηνύματα
9.622
Reaction score
12.187
Κείνη την κοκκινίλα του μπας ριφλεξ στους 300 κύκλους, μόλις 5 ντιμπι χαμηλότερα από το ηχείο; Πφχχχχχχχχχχχ
Έλα τώρα πως κάνεις έτσι που ο συντονισμός του σωλήνα είναι λάθος, σε σημείο που δεν μπορεί να υποστηρίξει το σύστημα μεγάφωνο-καμπίνα. Λεπτομέρειες...
Θα έπρεπε κανονικά να είναι συντονισμένο γύρω στους 10 κύκλους υψηλότερα, βάση του μεγαφώνου, που δυστυχώς αδυνατεί να αντεπεξέλθει χαμηλά.
Πολύ θα ήθελα να γνωρίζω την τιμή του μεγαφώνου τους.


Dimifoot

General Catsicofoot Patton
Editor
Μηνύματα
27.245
Reaction score
78.922
Απίθανα πράγματα πουλιούνται :o

Και ζητάνε και λεφτά, δεν πάμε καλά...τα αγοράζει κανείς αυτά;


C

chrispo

Guest
Μπορεί η κλανιά της μαϊμούς να βγάζει πιό πολύ μπάσο.... αλλά θα έχει όμως μεταξένιες χροιές :dance2:
