Προσφέρεται χωρίς το Τροφοδοτικό του!

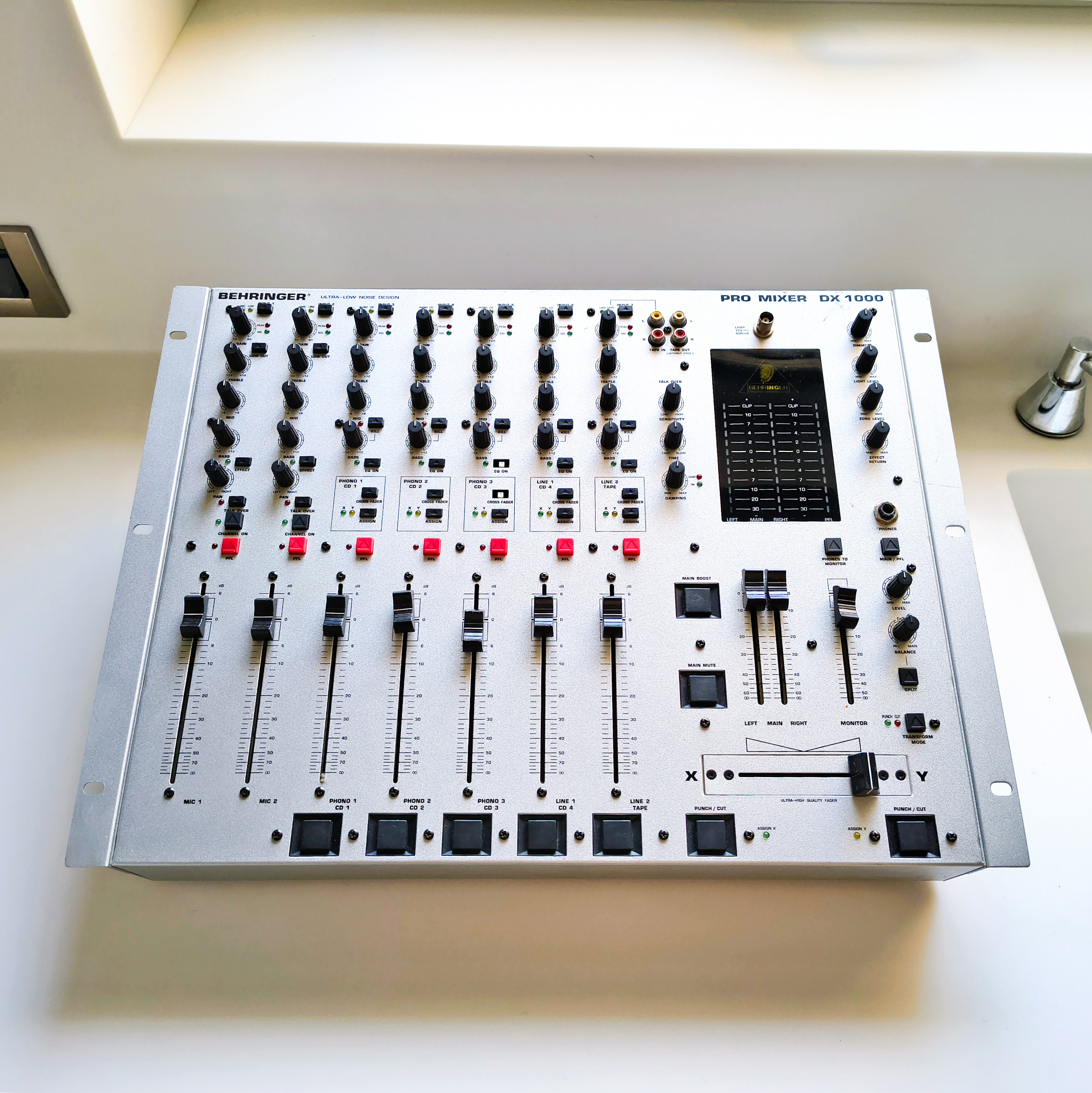

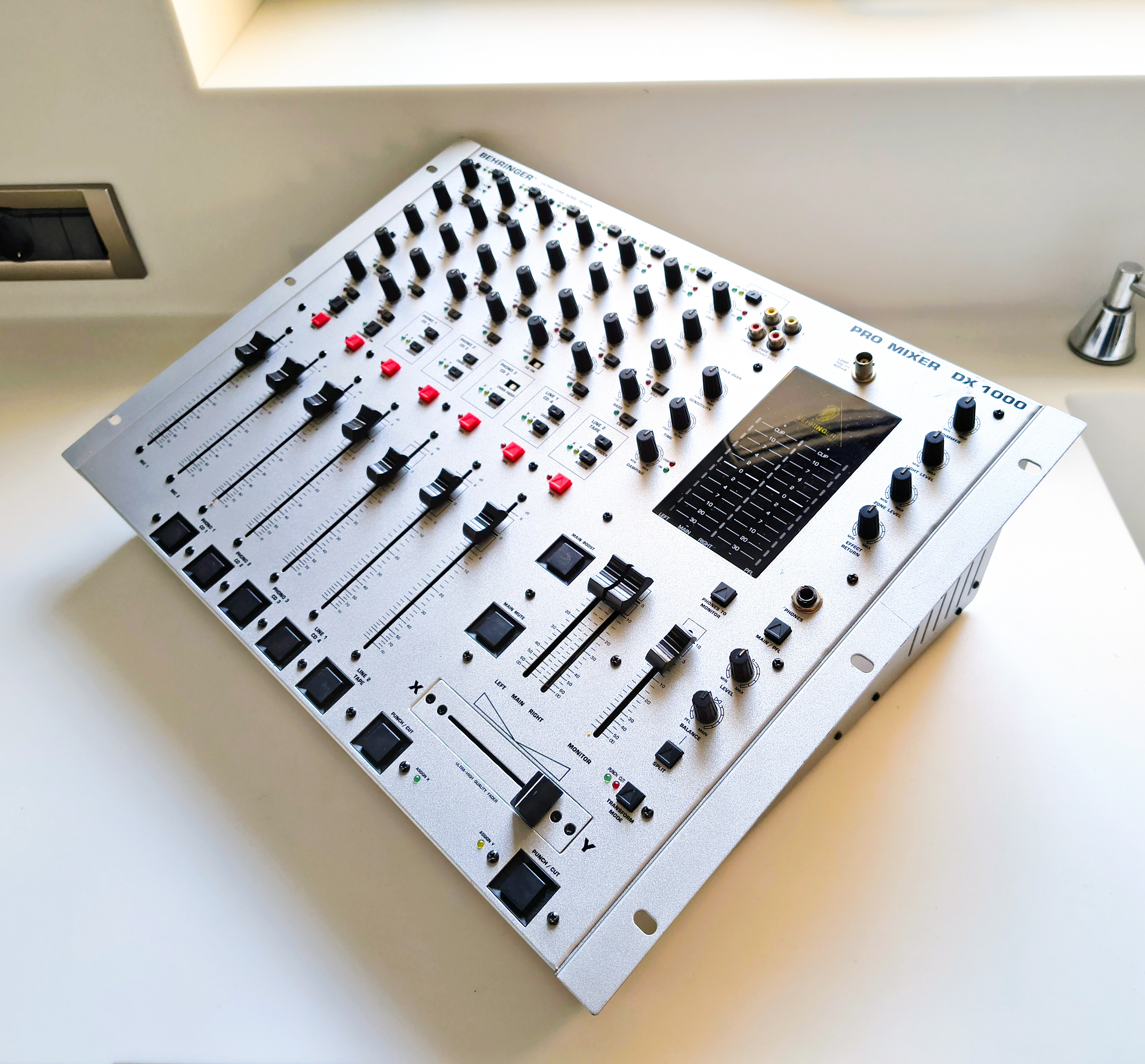

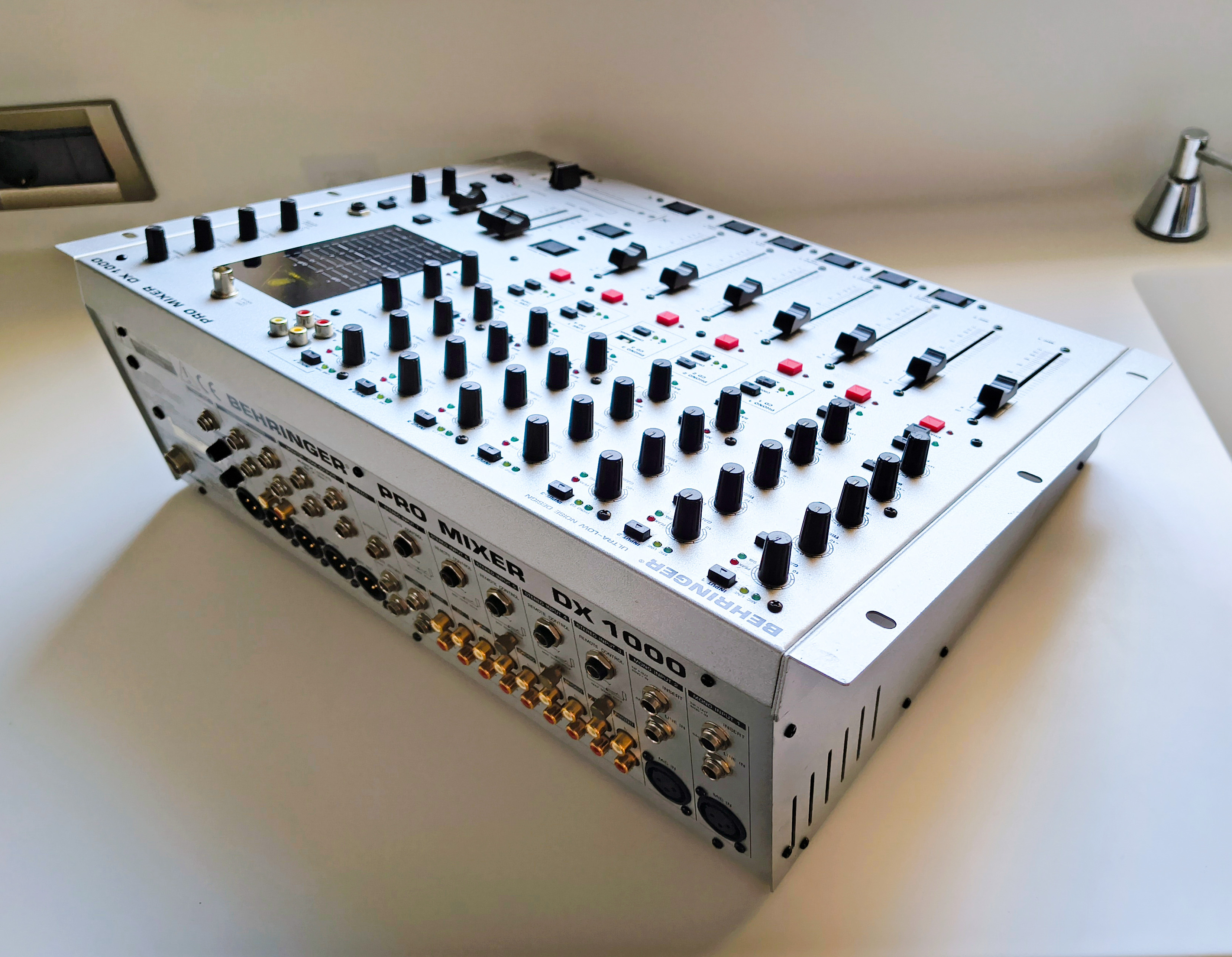

Professional DJ mixer with a total of 10 stereo sources on 5 dual-input channels
Two professional high-class microphone channels with peak indicator and effects send facility
High precision phono pre-amps for bass power and crystal clean sound
Ultra-musical 3-band EQ on all channels with independent defeat switch
Kill switch attenuates the bass for more creativity
Ultra-low noise design comparable to studio grade consoles
Replaceable and ultra-high quality cross fader
Fully adjustable talkover function automatically attenuates the main output
PFL switches on all channels with two different PFL modes
A Balance control allows you to blend between Main and PFL on the phones section
Extremely flexible and clear X-Y routing with status control LEDs on each channel
Large X-Y Punch and Cut buttons at the crossfader – your big plus for creative mixing!
Cross fader characteristic can be adjusted to your needs
Main Mute (-20 dB) and Main Boost buttons (+4 dB) give you total power
Balanced Main outputs on gold-plated XLR, 1/4" TRS and RCA connectors
Additional, adjustable Zone output allows you to control the level of a secondary area
Subwoofer output with adjustable x-over frequency and level control for separate bass amplification
Remote-start buttons to start your turntables and CD players etc. at your fingertip
Separate tape outputs with and without microphone signal
BNC socket for 12V gooseneck lamp including dimmer control
High-quality 100 mm channel faders found in professional recording consoles
Super-rugged construction ensures long life, even under the most demanding conditions
Manufactured under ISO9000 certified management system
Mono Input Channels
Mic input - electronically balanced, discrete input configuration
Gain: +10 to +60 dB
Frequency response: 10 Hz to 100 kHz, +/- 3 dB
THD: 0.004 % typ. @ -30 dBu, 1 kHz
Line Input
Gain: -10 dB to +40 dB
Frequency response: 10 Hz to 100 kHz, +/- 3 dB
THD: 0.003 % typ. @ +4 dBu, 1 kHz, Gain 1
S/N ratio: 115 dB
EQ
Low: 50 Hz, +/- 12 dB
Mid: 700 Hz, +/- 8 dB
High: 10 kHz, +/- 12 dB
Low cut: 75 Hz, 18 dB/oct.
Stereo Input Channels
Phono/line/CD input - unbalanced input
Gain
Line/CD: +/- 15 dB
Phono: +/- 15 dB (variable from 25 dB to 55 dB)
Frequency response
Line/CD: 10 Hz to 100 kHz, +/- 3 dB
Phono: 20 Hz to 20 kHz, RIAA
THD
Line/CD: 0.003 % typ. @ +4 dBu, 1 kHz, Gain 1
Phono: 0.004 % typ. @ -30 dBu, 1 kHz
S/N ratio
Line/CD: 106 dB
Phono: 105 dB
EQ
Low: 50 Hz, +/- 12 dB
Mid: 700 Hz, +/- 8 dB
High: 10 kHz, +/- 12 dB
Connectors
Master out
Jack: 0 dB
XLR: +6 dB
Monitor out
Jack: 0 dB (max. 10 dB gain)
Zone out
Jack: 0 dB (max. 10 dB gain)
Insert send: 0 dB
Insert return: 0 dB
Effect send: 0 dB

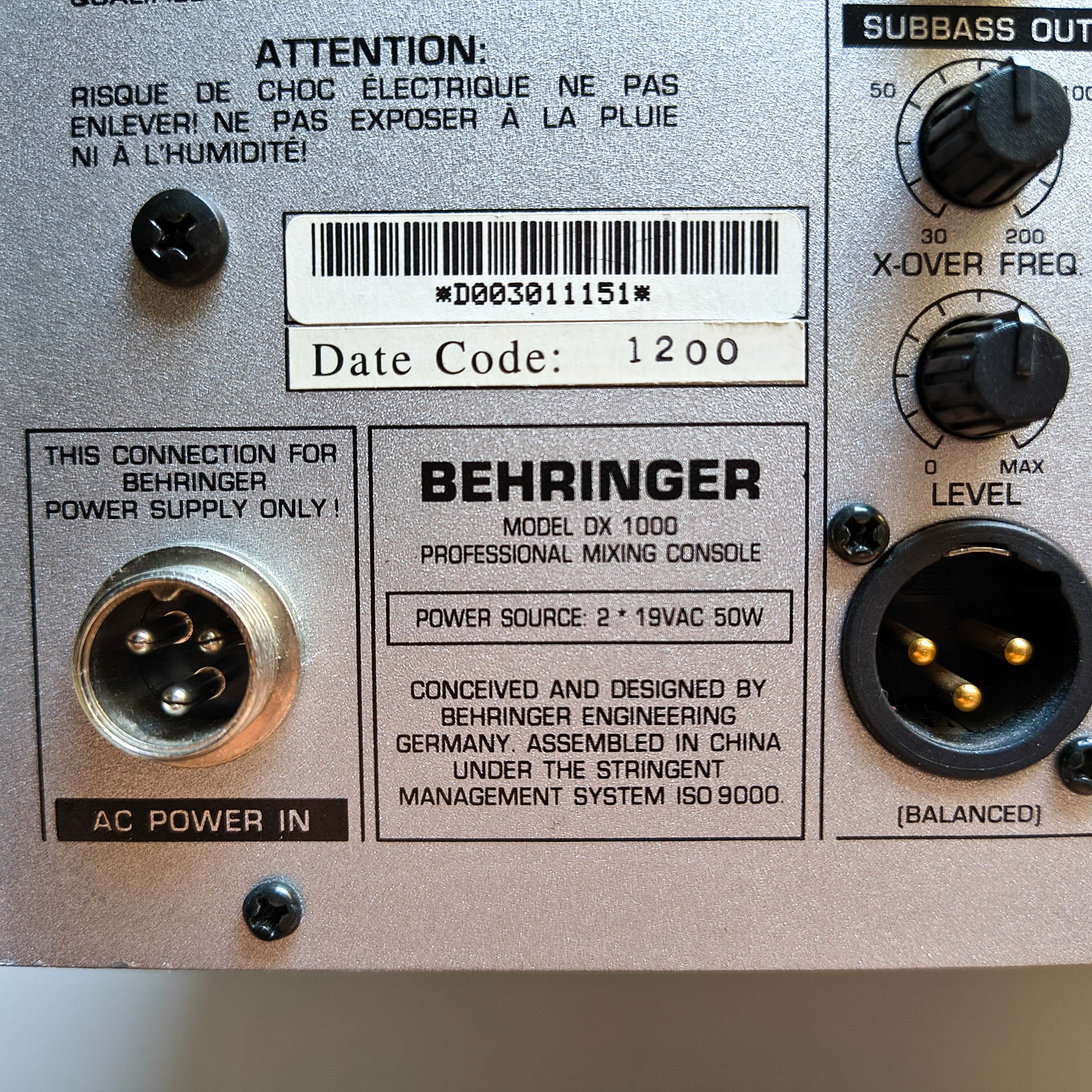

Power Supply
Mains Voltages USA/Canada ~ 120 V AC, 60 Hz, PSU MXUL 1
Physical Dimensions (W x H x D): 355.6mm x 482.6mm x 60.96/152.4 mm
Net weight (without PSU): approximately 6.5 kg
Περιοχή: Νέα Ερυθραία
Αποστολή Πανελλαδικά: με ανάλογη χρέωση Box Now (παραλαβή από το πλησιέστερο σημείο Box Now)
Ευχαριστώ
Τιμή: 70 ευρώ
