Esoteric E-02 balanced phono stage

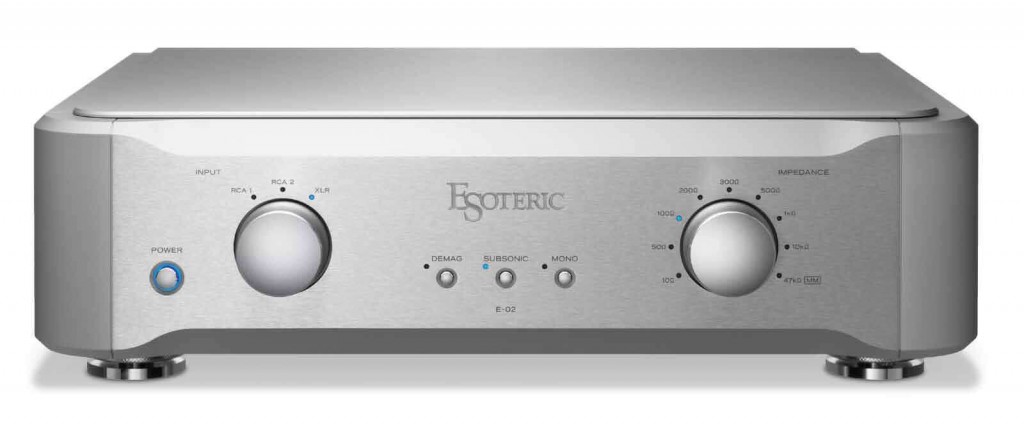

Μια χαρά τα πάει η Esoteric και στα αναλογικά. Ως εταιρία της Teac πια και μέλος του group Gibson η Esoteric ανακοίνωσε τον προενισχυτή φωνογραφικής κεφαλής E-02.
Eίναι μια εντελώς balanced υλοποίηση για κεφαλές MM και MC, έχοντας 47ΚΩ αντίσταση στο MM και επιλογή από 10Ω έως 10ΚΩ στο MC. Yπάρχουν τρεις είσοδοι, μόνο επιλογή, υποηχητικό φίλτρο και «demag» δυνατότητα απομαγνητισμού.
Η συσκευή παραδίδει το σήμα από RCA στα 2Vrms και από ΧLR στα 4Vrms.
Δέχεται από XLR κεφαλή MC, από RCA κεφαλή ΜΜ αλλά και MC. Δηλαδή μπορούμε να έχουμε τρία πικάπ συνδεδεμένα ή τρεις βραχίονες του ίδιου πικάπ ή άλλο συνδυασμό. Έχει ξεχωριστά τροφοδοτικά για κάθε κανάλι, αλλά και ανεξάρτητα κανάλια-πλακέτες, για υψηλό διαχωρισμό καναλιών. Το στάδιο εξόδου είναι εμπνευσμένο από την ακριβή σειρά Grandioso.
Η συσκευή είναι κατασκευασμένη στην Ιαπωνία για όσους σημαίνει κάτι αυτό.
http://www.hxoseikona.gr/nea/5623-esoteric-e-02-balanced-phono-stage.html
PRINTED IN JAPAN 0717O05 TECD- 0256 ESOTERIC COMPANY 1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan Fax: (042) 356-9240 www.esoteric.jp PROUDLY MADE IN TOKYO Please note that Esoteric products are only available from approved distributors in overseas territories. “ESOTERIC” is a trademark of TEAC Corporation, registered in the U.S. and other countries. “Grandioso” is a trademark of TEAC Corporation. ©2017 TEAC Corporation. All Rights Reserved. All text, images, graphics and other materials in this catalog are subject to copyright and other intellectual property rights of TEAC Corporation. These materials may not be directly or indirectly published, reproduced, modified or distributed in any medium. Other company names and product names in this document are the trademarks or registered trademarks of their respective owners. Design and specifications are subject to change without notice. Audio expression, symphonic beauty, artistic passion, a concert hall spatial feel, the excitement of the audience. Esoteric’s Master Sound Works is an audio product concept that recreates all of the music information in original master recordings with the most state-of - the-art technology available today.
Balanced Phonostage Preamplifier E-02 E-02 Balanced Phonostage Preamplifier Input selector (3 inputs) Power switch Signal ground terminal Input jacks AC cord connector "Demag" function switch Mono switch Output selector ES-LINK Analog / RCA / XLR Sub-sonic filter (17Hz -6dB/octave ) Line output jacks ES-LINK Analog/RCA/XLR Load impedance selector MM : 47kΩ M C : 10Ω/50Ω/100Ω/200Ω/300Ω/500Ω/1kΩ/10kΩ Specifications E-02 Inputs XLR connectors 1 pair (MC) RCA connectors 2 pairs (MC/MM) Input impedance MC：10,50,100,200,300,500,1k,10kΩ MM：47kΩ Outputs XLR/ES-LINK Analog Connectors 1 pair RCA Connectors 1 pair Output impedance XLR：20Ω RCA：23.5Ω Audio RIAA deviation (10 to 20kHz) ±0.2dB characteristics Total harmonic distortion 0.007％ (1kHz, MM, rated output) Rated output level RCA：2Vrms XLR：4Vrms Gain RCA：MM 40dB,MC 66dB XLR：MM 46dB,MC 72dB Input sensitivity (1kHz,rated output) MM 20mV,MC 1mV Maximum input level (at 0.1% distortion ) MM 100mV,MC 4.8mV S/N ratio(Input short,rated output, IHF-A) MM 100dB,MC 80dB Channel separation(MM,10kHz,IHF-A) ＜-96dB Sub-sonic filter 17Hz -6dB/octave General Power supply AC 220-240V, 50/60Hz AC 120V, 60Hz AC 220V, 60Hz External dimensions 445mm ×131mm × 377mm (W × H × D, including protrusions) (17 5/8″× 5 1/4″× 14 1/4″) Weight 12.5kg (27 9 /16 lb) Included Power cord × 1 accessories Felt pads × 3 Owner’s manual × 1 Warranty card × 1 PROUDLY MADE IN TOKYO Fully Balanced Circuit Design The E-02 is a fully balanced phonostage preamplifier that features fully balanced circuits from the input stage right through to the final output stage.

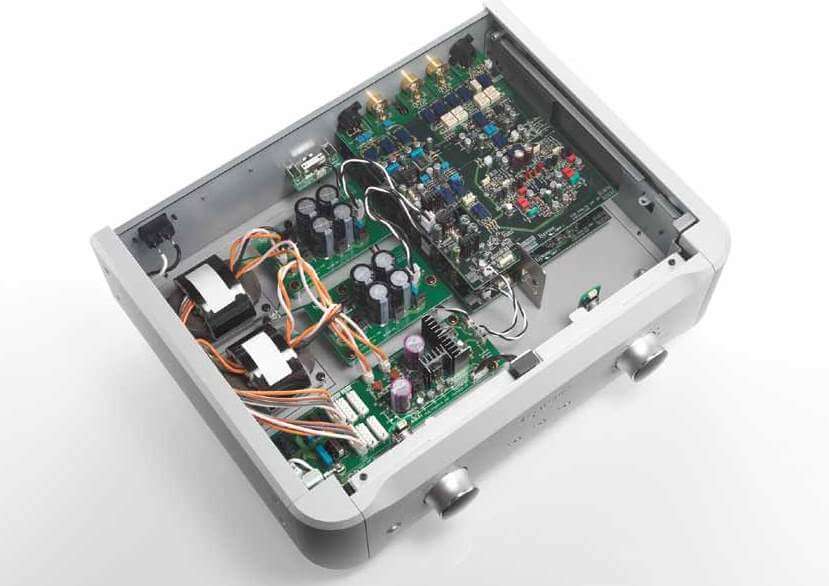

It is perfectly designed for handling the extremely low level signals from a MC cartridge, minimize noise interference and powerfully amplify signals with low impedance to bring the very best sound out of your beloved MC cartridge collection. Dual Mono Construction Identical power supply transformers, power boards and amplifier circuits are mounted independently on each channel. Outstanding channel separation and robust power supply components deliver solid, powerful, and exceptionally high quality audio playback. Super High Quality MC Head Amplifier and RIAA Amplifier The E-02 features a newly designed fully balanced MC head amplifier and RIAA amplifier. The NF-CR type RIAA amplifier achieves outstanding RIAA characteristics of ±0.2dB together with minimum Negative Feedback, and the high voltage power supply delivers an exceptionally wide dynamic headroom. Equipped with ESOTERIC-HCLD, ESOTERIC’s Proprietary Current-Enhancing Output Buffer Circuit The E-02 employs the same buffer amplifier technology as our flagship Grandioso C1 preamplifier, which features a high current output capability and an exceptionally high slew rate of 2,000V/s. Each channel is equipped with two buffer amplifiers which drive the hot and cold signals separately when the system is in XLR output mode. When switched to RCA output mode, however, the amplifiers work in parallel to maximize the output linearity. This design achieves super-fast current output, resulting in breathtaking super-dynamic sound. ES-LINK Analog Output The E-02 is compatible with ESOTERIC’s unique ES-LINK Analog current transmission in addition to regular XLR and RCA outputs. ES-LINK Analog is a current transmission method that fully utilizes the high speed and powerful capabilities of the HCLD circuit to fully maximize the potential of compatible devices. Fully balanced, dual mono audio boards Highly rigid thick aluminum enclosure and internal construction Pinpoint feet (patent no. 4075477) Selector knobs with ball-bearing structure High grade parts Dual mono power supply Three Types of Input Including XLR Balanced Input The E-02 is equipped with one XLR (MC dedicated) input and two RCA inputs, with the RCA inputs also featuring fully balanced transmission throughout all stages after the input amplifier. Cartridge impedance, filter ON/OFF and MONO switch ON/OFF settings can be configured as presets for each input, and switched easily using the large dial control on the front panel. Load impedance switching function that exploits the full potential of the cartridge The E-02 enables you to select between nine different impedance positions (MC: 10Ω, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 10kΩ, MM: 47kΩ). Various Control Functions Simply playback a record for around 30 seconds with the DEMAG function switched on to demagnetize any unexpected magnetization of the cartridge's coils or step-up transformers and recover the original sound.
The E-02 is equipped with a sub-sonic filter (17Hz, -6dB/octave), a MONO switch and output switching (XLR, RCA, ES-LINK Analog) controls. Highly Rigid Chassis Construction Phonostage amplifiers that amplify extremely low signal levels are highly sensitive to vibration, which is why ESOTERIC pays special attention to chassis construction in order to control vibration wherever possible. The arrangement of each component is designed in minute detail, and a slit construction is used in the bottom chassis that supports all of the circuits to minimize interference. The highly rigid thick aluminum enclosure and proprietary pinpoint feet (patent no. 4075477) are extremely effective in minimizing the effects of vibration from external sources. Use of High Grade Components In our uncompromising pursuit of superior sound quality, ESOTERIC uses nothing but the highest grade components including custom-designed power supply capacitors and machined gold-plated RCA terminals. The two large selector knobs on the front panel feature a ball-bearing structure based on the VRDS drive mechanism, providing a beautifully smooth analog feel without any wobble. Knobs are sculpted from solid aluminum for a truly refined, high-end look and feel. E-02 Block Diagram (1 Channel) Subsonic Filter Phase Selector Output Selector MM / MC Selector Input MM / MC Selector Differential Head Amp Subsonic Filter MM Load Impedance [ 47kΩ ] MC Load Impedance [ 10Ω ] [ 50Ω ] [ 100Ω ] [ 200Ω ] [ 300Ω ] [ 500Ω ] [ 1kΩ ] [ 10kΩ ] Gain +40dB Gain 0dB Gain 0dB Gain +40dB Gain +26dB Gain +26dB MONO The Other Channel XLR RCA2 RCA XLR/ESL-A RCA1 MC Head AMP NF-CR RIAA EQ AMP HCLD Buffer AMP The Apex of Vinyl Playback To meet the demands of vinyl lovers the world over, ESOTERIC has poured knowledge accumulated over many years of developing audio technology into the E-02, our newest phonostage preamplifier. The E-02 inherits the philosophy that guided our highly acclaimed E-03 phonostage to be a continual best-seller for the last 8 years, and adds the new fully balanced transmission and amplification circuit utilizing MC cartridges to achieve a level of analog playback that was previously unimaginable.
http://www.bm.rs/Esoteric/Esoteric E-02 product info.pdf
