ATC - C1 Sub Mk2 Active Subwoofer

[Mr Spock]

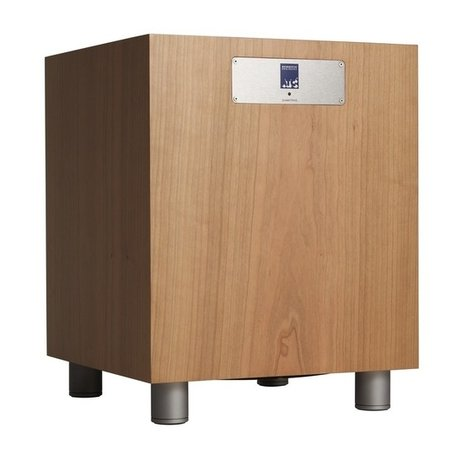

Built to provide a dynamic low-distortion bass foundation for ATC’s Entry Series speakers, its C1C and C3C center speakers, HTS Series on-wall speakers and all but the largest satellite speaker systems, the new C1 Sub Mk 2 is a compact real wood veneered design, incorporating a hand-built 12” (314mm) ATC bass driver and a fully discrete ATC 200W MOSFET power amplifier.

Designed for both music and cinema applications and replacing the Mk1 version, the new C1 Sub promises a quality of low frequency reproduction that belies its price point. The re-engineered design incorporates ATC’s customarily transparent circuits boosted by larger power supplies, the latest ATC grounded- source 200 watt Class A/B discrete MOSFET power module and improved overload protection circuitry (with front-panel indicator) for greater control at full output. The low-pass filter circuits have been comprehensively re-worked to facilitate the best possible integration with partnering speakers from ATC and other manufacturers.

Driver: 12” / 314mm
LF Cut Off Frequency (-6dB): 25Hz
Max SPL: 103dB
Amplifier Output: 200W

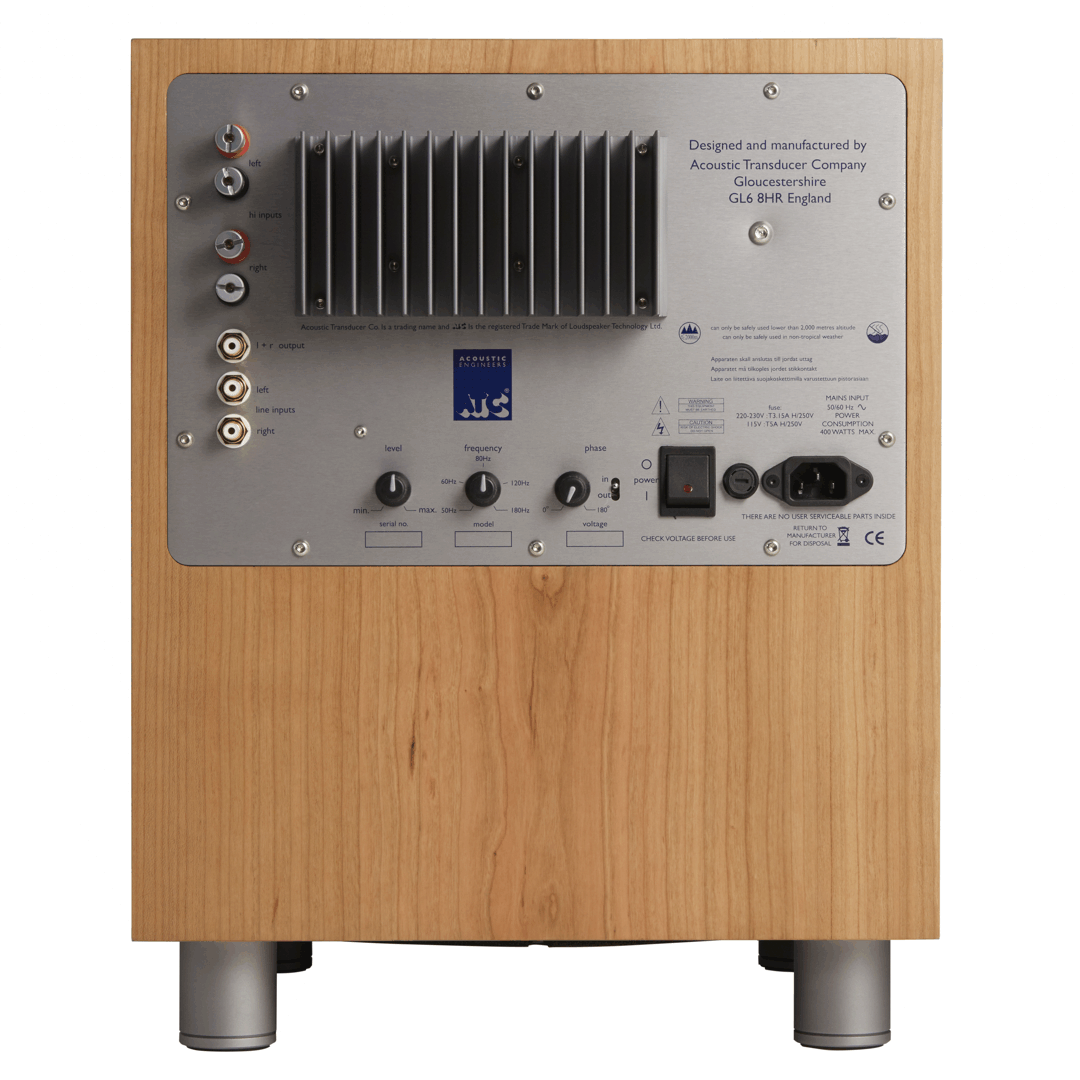

User Controls: Gain, Low Pass Frequency, Polarity, Phase
Inputs: Stereo High Level via Binding Posts & Stereo Line Level via RCA/Phono
Outputs: Mono Summed Line Level via single RCA/Phono
Dimensions (HxWxD): 450 x 360 x 400 mm / 17.72” x 14.17” x 15.75” (incl. feet and heatsink)
Weight: 26.2kg
