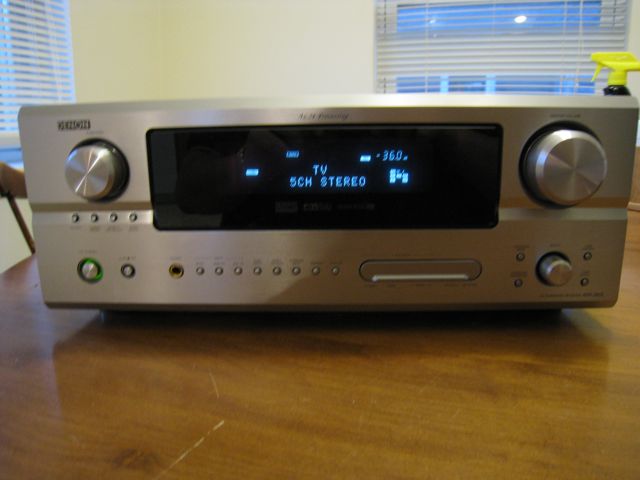

DENON AVR 2805
--------------------------------------------------------------------------------
Audio Inputs
11 Sets Analog Input .................. PHONO, CD, (TUNER), DVD, VDP,TV,
DBS, VCR-1, VCR-2, V.AUX(FRONT),
CDR/TAPE
1 Set 8-ch Analog EXT. Input ..... FRONT L/R, CENTER,
SURROUND L/R, SURROUND BACK L/R,
SUBWOOFER
5 Sets Digital (Optical) Input ....... OPTICAL x 5(FRONT x 1) (Assignable)
2 Set Digital (Coaxial) Input ........ COAXIAL x 2 (Assignable)
Audio Outputs
8 Sets Analog PRE Output ......... FRONT L/R, CENTER,
SURROUND L/R, SURROUND BACK L/R,
SUBWOOFER
3 Sets Analog REC Output ......... VCR-1, VCR-2, CDR/TAPE
1 Set Analog Multi Zone PRE Output... ZONE2 L/R
2 Set Digital (Optical) Output ...... OPTICAL x 2
Video Inputs
3 Sets Component Video Input .. VIDEO-1, VIDEO-2, VIDEO-3
7 Sets S-Video Input .................. DVD, VDP, TV, DBS, VCR-1,
VCR-2, V.AUX(FRONT)
7 Sets Composite Input .............. DVD, VDP, TV, DBS, VCR-1,
VCR-2, V.AUX(FRONT)
Video Outputs
1 Set Component Video Output . MONITOR
3 Sets S-Video Output ................ VCR-1, VCR-2, MONITOR
3 Sets Composite Output ........... VCR-1, VCR-2, MONITOR
1 Multi Zone Composite Video output...... ZONE2 VIDEO x 1
Specifications
.. Power Amplifier Section
Rated output *THD figures are power amp stage values.
Front............................................. 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
Center.......................................... 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W (6 ohms, 1 kHz, 0.7 % THD)
Surround..................................... 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
Surround Back........................... 100 W + 100W (8 ohms, 20 Hz - 20 kHz, 0.05 % THD)
135 W + 135 W (6 ohms, 1 kHz, 0.7 % THD)
.. Preamplifier Section
Analog
Input sensitivity / imepdance ................. 200mV/47kohms
Frequency response ............................. 10Hz-100kHz(+0,-3dB direct mode)
S/N .................................................. ...... 102dB(direct mode)
Rated output.......................................... 1.2V
Digital
D/A output ............................................. 2.0V
Phono
Input sensitivity / impedance ................ 2.5mV
RIAA deviation ...................................... +/-1dB(20Hz to 20kHz)
Rated output.......................................... 150mV
.. Video Section
Frequency response
Composite video/S-video ..................... 5Hz-10MHz(+0,-3dB)
Component video ................................. DC-100MHz(+0,-3dB)
.. FM Section
Tuning frequency range .................... 87.5 - 108.0 MHz
Usable sensitivity .............................. 1.0 ΅V (11.2 dBf)
.. AM Section
Tuning frequency range .................... 522 - 1611 kHz
Usable sensitivity .............................. 18 ΅V
.. General
Power supply......................................... AC230V,50Hz
Power consumption............................... 290 W (1W max at standby mode)
Dimensions ........................................... 434 (W) x 171 (H) x 429 (D) mm
Weight .................................................. . 13.5kg
Τιμη στα 450 ευρο για να φυγει
--------------------------------------------------------------------------------
