Studio 8c constant directivity louspeaker
Overview
The 8c is more than just a studio monitor. It is a unique acoustic concept. Its revolutionary cabinet design provides the 8c with constant directivity from 100 Hz upwards. As a result, the 8c is above and beyond any other studio monitor in terms of neutrality, precision, and in-room tonal balance.
Sub frequencies are handled by 500 Watts of amplifier power and two high-excursion 8” subwoofer drivers, which employ boundary loading for maximum bass precision and impact.
Sophisticated Cabinet Design
The 8c's cabinet is handcrafted of stiff, strong birch plywood. In combination with extensive and cleverly placed bracing, this reduces vibrations to an absolute minimum. The open construction of the midrange cabinet has the added advantages of minimal internal energy storage.
Advanced Connectivity
With our proprietary Clerk-powered software and electronics, all the right controls are at your fingertips. Whether you want to finetune the system to suit your acoustic environment, emulate another loudspeaker, or merely tweak the sound a bit, Clerk is ready.
Complete Control
Clerk TM powered network communication allows realtime settings updates
Optimized Dispersion
Crystal clear sound with an extremely wide sweet spot
Specifications
COMPONENTS

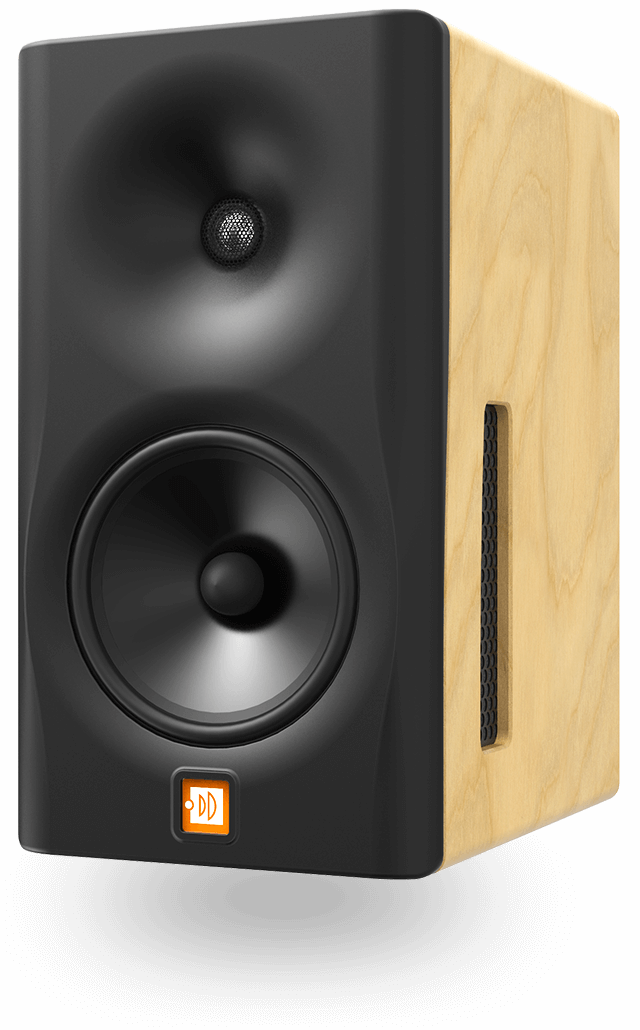

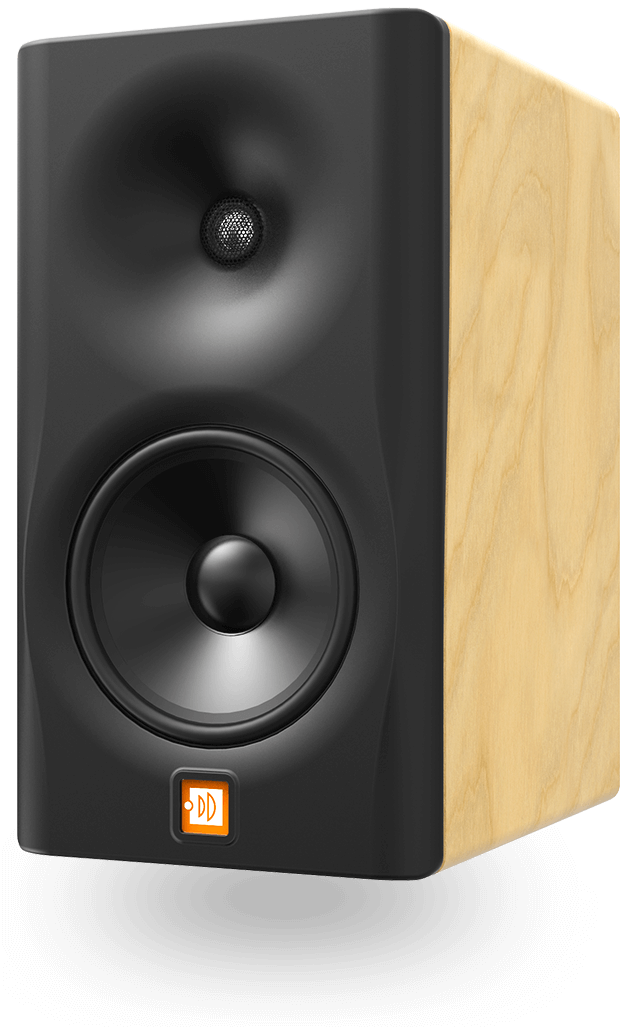

Studio 8m adaptive directivity loudspeaker
Overview
The 8m is an ideal tool for discerning audio engineers. Its highly optimized baffle geometry ensures perfectly neutral sound, a wide sweet spot, and phenomenal imaging.
On its own, the 8m is capable of providing useful output down to well below 40 Hz. If that is not enough, subwoofers can easily be added: each 8m has a DSP-controlled output can turn any active subwoofer into a Clerk-powered low frequency element.
Sophisticated Cabinet Design
The 8m's cabinet is handcrafted of stiff, strong birch plywood. In combination with extensive and cleverly placed bracing, this reduces vibrations to an absolute minimum. The large, symmetrical bass reflex port ensures optimal woofer loading and turbulence-free performance at all sound pressure levels.
Advanced Connectivity
With our proprietary Clerk-powered software and electronics, all the right controls are at your fingertips. Whether you want to finetune the system to suit your acoustic environment, emulate another loudspeaker, or merely tweak the sound a bit, Clerk is ready.
Complete Control
Clerk TM powered network communication allows realtime settings updates
Optimized Dispersion
Crystal clear sound with an extremely wide sweet spot
Specifications
COMPONENTS
FREQUENCY RESPONSE
http://dutchdutch.com/
Overview
The 8c is more than just a studio monitor. It is a unique acoustic concept. Its revolutionary cabinet design provides the 8c with constant directivity from 100 Hz upwards. As a result, the 8c is above and beyond any other studio monitor in terms of neutrality, precision, and in-room tonal balance.
Sub frequencies are handled by 500 Watts of amplifier power and two high-excursion 8” subwoofer drivers, which employ boundary loading for maximum bass precision and impact.
Sophisticated Cabinet Design
The 8c's cabinet is handcrafted of stiff, strong birch plywood. In combination with extensive and cleverly placed bracing, this reduces vibrations to an absolute minimum. The open construction of the midrange cabinet has the added advantages of minimal internal energy storage.
Advanced Connectivity
With our proprietary Clerk-powered software and electronics, all the right controls are at your fingertips. Whether you want to finetune the system to suit your acoustic environment, emulate another loudspeaker, or merely tweak the sound a bit, Clerk is ready.
Complete Control
Clerk TM powered network communication allows realtime settings updates
Optimized Dispersion
Crystal clear sound with an extremely wide sweet spot
Specifications
COMPONENTS
- LF: 8" WOOFER (2X)
- MF: 8" WOOFER
- HF: 1" ALLOW DOME TWEETER
- LF: SEALED
- MF: ACOUSTIC RESISTANCE BOX
- 30 HZ - 20 KHZ ± 1.5 DB
- -6DB @ 20 HZ
- LF: 500 W
- MF: 250 W
- HF: 250 W
Studio 8m adaptive directivity loudspeaker
Overview
The 8m is an ideal tool for discerning audio engineers. Its highly optimized baffle geometry ensures perfectly neutral sound, a wide sweet spot, and phenomenal imaging.
On its own, the 8m is capable of providing useful output down to well below 40 Hz. If that is not enough, subwoofers can easily be added: each 8m has a DSP-controlled output can turn any active subwoofer into a Clerk-powered low frequency element.
Sophisticated Cabinet Design
The 8m's cabinet is handcrafted of stiff, strong birch plywood. In combination with extensive and cleverly placed bracing, this reduces vibrations to an absolute minimum. The large, symmetrical bass reflex port ensures optimal woofer loading and turbulence-free performance at all sound pressure levels.
Advanced Connectivity
With our proprietary Clerk-powered software and electronics, all the right controls are at your fingertips. Whether you want to finetune the system to suit your acoustic environment, emulate another loudspeaker, or merely tweak the sound a bit, Clerk is ready.
Complete Control
Clerk TM powered network communication allows realtime settings updates
Optimized Dispersion
Crystal clear sound with an extremely wide sweet spot
Specifications
COMPONENTS
- LF: 8" WOOFER
- HF: 1" ALLOW DOME TWEETER
FREQUENCY RESPONSE
- 40 HZ - 20 KHZ ± 1.5 DB
- -6DB @ 35 HZ
- LF: 250 W
- HF: 100 W
http://dutchdutch.com/
