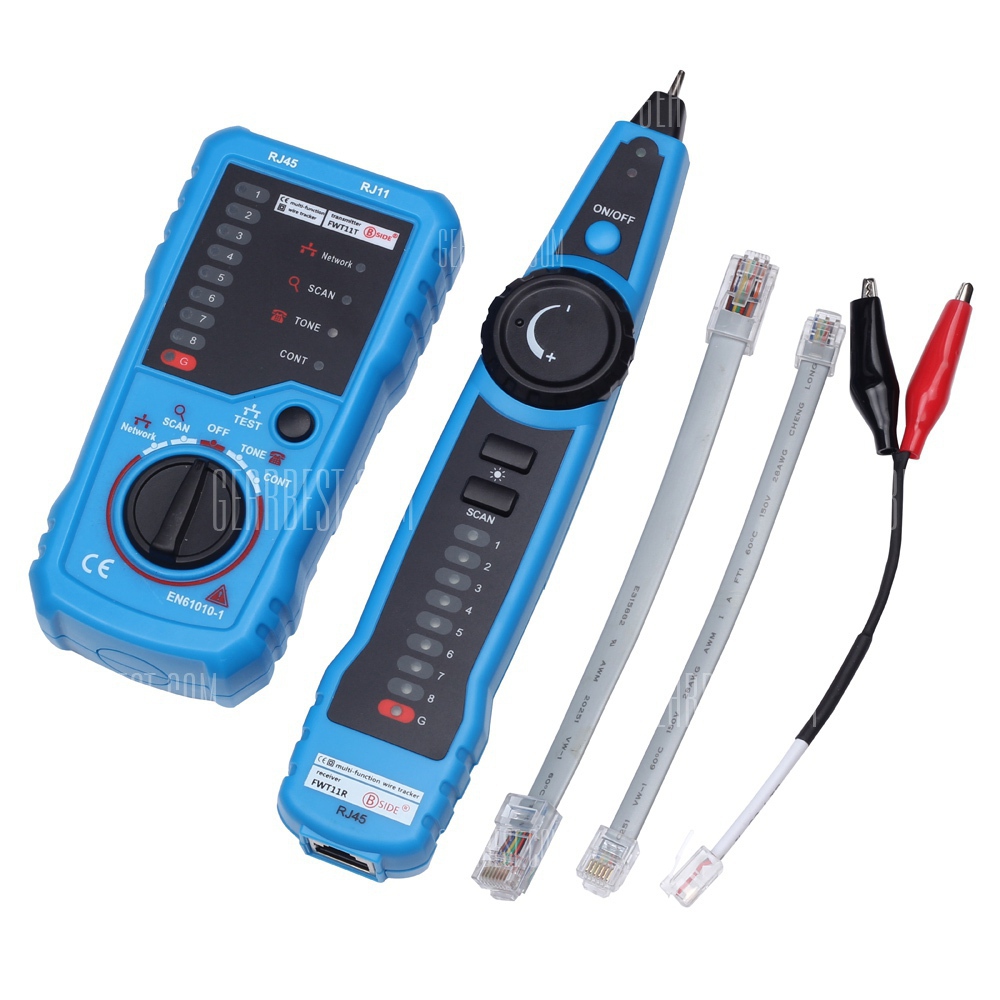

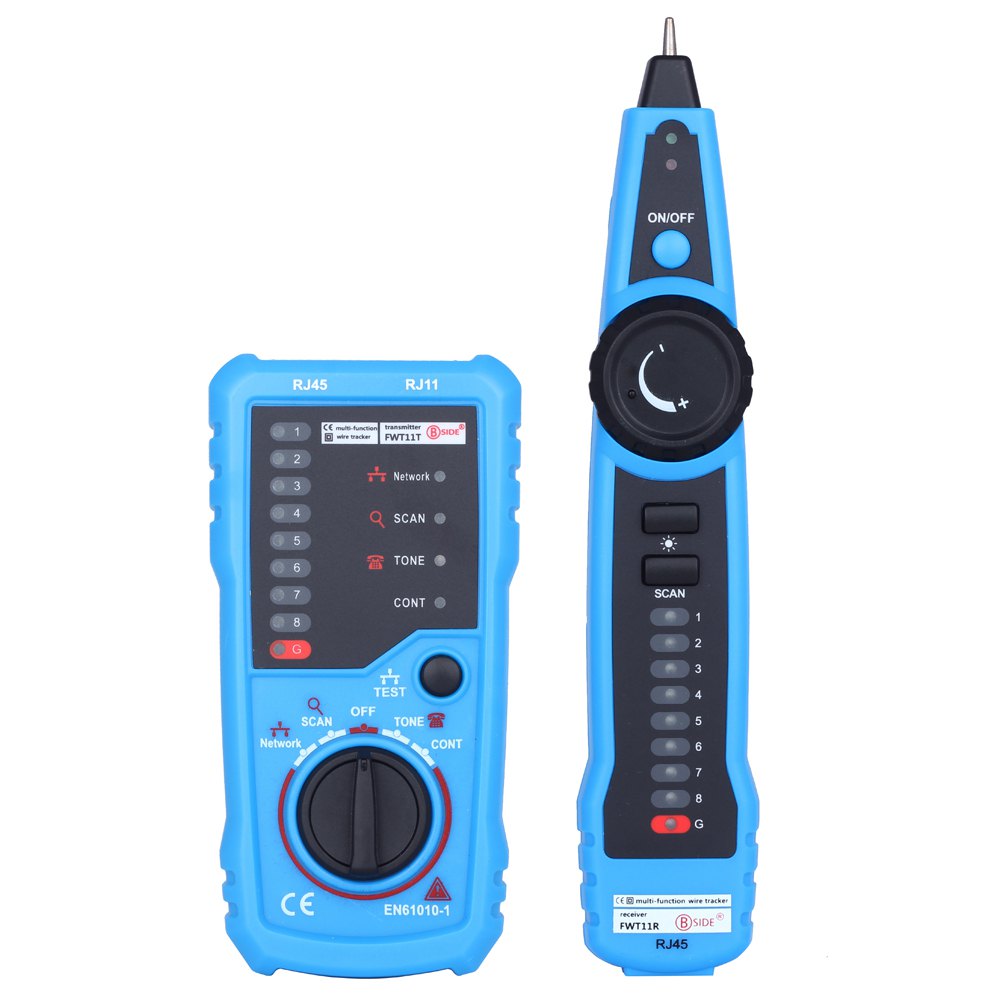

BSIDE FWT11 RJ45 RJ11 Telephone Wire Line Finder Tracker



This instrument is a multifunctional handheld cable testing tool. Work perfect when RJ11 RJ45 cable is on power. It has a wide application with reinforced cable types and multiple functions. It is a necessary testing tool for telecommunication engineering, wiring engineering, and network maintenance person

ΚΥΡΙΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

● Wire tracing Trace RJ11, RJ45, cables or other metal wire (via adapter). Easy and fast to locate the breakpoint without opening the cover of wire
● Network cable collation: judge short-circuits, breaking circuit, open circuit and crossing
● Test line level, positive and negative polarity
● Status of telephone line checking: test the working status of telephone line (idle, ringing, and off-hook) and judge TIP and RING line
● Check wire continuity

General Technical Parameters
Operating temperature: 0 - 40 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Storage temperature: -10 - 50 degrees Celsius, maximal 80 percent relative humidity (non-condensing)
Altitude: less than 2000m
Anti-explosion rating: IP40
Distance of emitting signal: 300m or so
Emitter battery: 6F22 / 9V (not included). Receiver battery: 6F22 / 9V (not included)
