Gold Note Pianosa Νέο πικάπ
Σε πολύ δραστήρια εταιρία έχει εξελιχθεί η Ιταλική Gold Note, μάλιστα φτιάχνει πικάπ για τη Bryston.

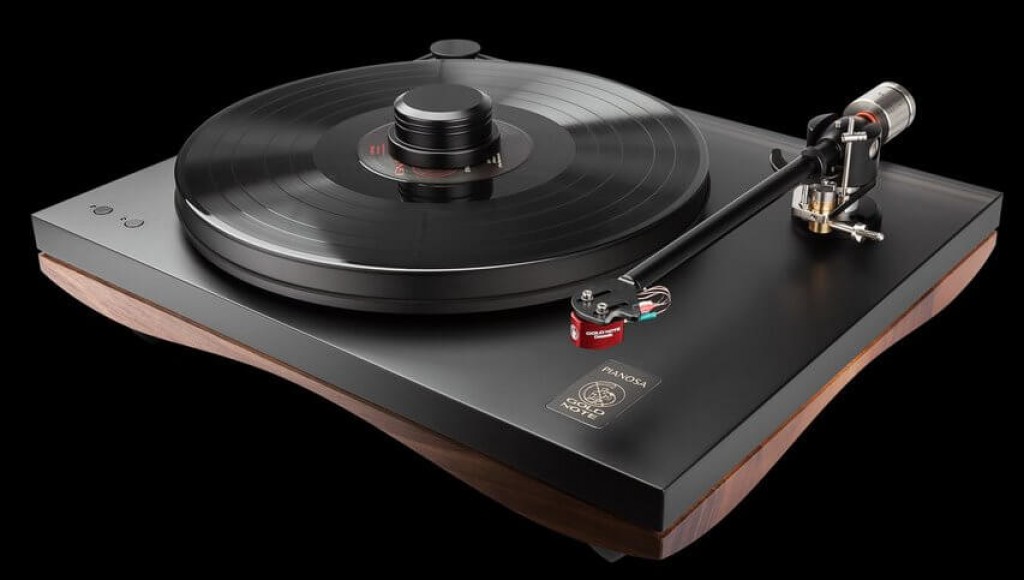

Το τελευταίο μοντέλο της Gold Note είναι το πικάπ Pianosa που φοράει τον βραχίονα Β-5 και έχει το τροφοδοτικό του μεγάλου πικάπ Meditteraneo.
To Pianosa εχεί σασί με καμπύλες από ξύλο καρυδιάς, οι καμπύλες – όπως λέει η εταιρία- επιδρούν στην αύξηση της ακαμψίας. Το ξύλο καρυδιάς είναι κολλημένο με ένα MDF πάχους 20 mm και όλο μαζί γίνονται σώμα με μια πλάκα από ατσάλι πάχους 3 mm. To τροφοδοτικό, όπως είπαμε, είναι το PWM που μετατρέπει το AC σε DC και πάλι σε AC για να περιορίσει τις δονήσεις του κινητήρα ο οποίος είναι 12V και να του αυξήσει τη ροπή.
Υπάρχει δυνατότητα επιλογής στροφών 33/45 που γίνεται με πλήκτρα. Το πλατό είναι από Sustarin, ένα ειδικό PTE πολυμερές. Το σετάρισμα του πικάπ είναι εύκολο, ενώ το Pianosa θα έχει σχετικά χαμηλή τιμή σε σχέση με τα μεγαλύτερα μοντέλα Mediterraneo και Giglio.
http://www.hxoseikona.gr/nea/5562-gold-note-pianosa-neo-pikap.html
Pianosa offers a unique combination of performance, high quality materials and Italian design
Our journey started almost 25 years ago and we’ve been focusing on analog ever since because we are in love with vinyls.
Such passion defines all our creations, especially turntables, that we always design with great care and attention to make sure that every single detail can become part of a wonderful source of music.
With Mediterraneo we introduced a new category of turntables and then we applied the same principles to Giglio and eventually to Pianosa, the new addition to the family.
This creations redefine the classic idea of turntable through innovative shapes and quality materials to merge tradition and technology in order to provide the best musical experience for all the senses.
Pianosa features a curved plinth in Italian hardwood Walnut that reminds of the Tuscan landscape and the way its rounded hills, warm sea and gentle waves are one thing with the skill of local craftsmen who hand-made every single plinth from precious woods, a material chosen for its exceptional strength and high density.
The curves of Pianosa are necessary to achieve extra rigidity, allowing us to combine a refined technical design with elegant, smooth lines. The Walnut plinth is also coupled with a 20mm thick MDF plinth and reinforced with a 3mm stainless steel plate.
The Power Supply unit is crucial to guarantee the best performances and Pianosa features electronic controls for 33/45rpm mode and for speed fine adjustments, any adjustment is saved and stored in memory even when unplugged from the AC.
Thanks to our proprietary 12Volt synchronous motor based on PWM technology [Pulse Width Modulation], that transforms the voltage from AC to DC and back to AC, the two AC semi-waves are perfectly coupled to minimise vibrations while providing high torque.
The platter Spindle/Bearing system is made of the best hardened steel and bronze to grant superior precision, the platter is made of Sustarin (23mm thick) - a special PTE rigid but dead at the same time - and the new polished hourglass pulley is shaped to improve the transmission: every detail is designed to reduce vibrations, noise and wow&flutter with improved rotational stability.
EXTRA RIGIDITY AND DAMPENING
Pianosa is built with a multiple plinth structure, with a 50mm curved plinth in Italian Walnut hardwood slats and a lacquered MDF plinth for optimal structural stability. The curved wooden plinth is reinforced with a stainless steel board and the black lacquered MDF plinth to achieve the best vibrational control.
PWM MOTOR TECHNOLOGY
Pianosa features a power control generator based on PWM [Pulse Width Modulation] that transforms the voltage from AC to DC and back to AC, the two AC semi-waves are perfectly coupled to minimise vibrations while providing high torque.
EASY SET UP
Ready to play out of the box, the set up includes a dedicated Gold Note B5.1 tone arm and a custom moulded transparent ultra resistant removable polycarbonate Dust Cover.
HIGH PRECISION SYSTEM
Pianosa features our high precision platter bearing/spindle design with the best coupling tolerance available today: the spindle is made of the hardest carbon rectified and hardened steel to guarantee perfect rotational stability and the bearing is made of polished bronze with a 2/100 mm tolerance.
SILENT PLATTER
The Ultra Dampened platter is made in Sustarin, a special PTE polymer for great rotational stability to deliver the best audio performances.
Specifications
Dimensions: 425mm W | 200mm H | 360mm D
Weight: 15Kg
MAIN DETAILS
Wow & Flutter: 0,1% . . . πολύ δεν είναι ;
Rumble: -77dB
Speed: 33-1/3 and 45 rpm +/-0,1%
Speed changing: electronic with fine pitch control
Transmission: 70 shores elasticity rectified black NBR rounded belt
Power
Mains supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power consumption: 20W max
Motor: 12 Volt High Torque synchronous externally powered
Platter: acrylic Ultra Dead Design Sustarin® 23mm height
Platter spindle: special Split-Spindle™ clamping the platter
Platter bearing: Chromed steel 5mm ball bearing with adjustable brass seat finely Polished bronze case.
Cartridge: refer to the specific model in the correct market area
Upgrades
External AC filter: Arno Power Distributor
FINISHES
Lower Plinth
Italian Walnut, Black or White Lacquered MDF
Upper Plinth
Black Lacquered MDF
Metal
Black anodised aluminium or optionally all Silver
Platter
Black Sustarin
http://www.goldnote.it/pianosa?utm_...32-d1f4db4857-27355837#pianosa-specifications
Σε πολύ δραστήρια εταιρία έχει εξελιχθεί η Ιταλική Gold Note, μάλιστα φτιάχνει πικάπ για τη Bryston.
Το τελευταίο μοντέλο της Gold Note είναι το πικάπ Pianosa που φοράει τον βραχίονα Β-5 και έχει το τροφοδοτικό του μεγάλου πικάπ Meditteraneo.
To Pianosa εχεί σασί με καμπύλες από ξύλο καρυδιάς, οι καμπύλες – όπως λέει η εταιρία- επιδρούν στην αύξηση της ακαμψίας. Το ξύλο καρυδιάς είναι κολλημένο με ένα MDF πάχους 20 mm και όλο μαζί γίνονται σώμα με μια πλάκα από ατσάλι πάχους 3 mm. To τροφοδοτικό, όπως είπαμε, είναι το PWM που μετατρέπει το AC σε DC και πάλι σε AC για να περιορίσει τις δονήσεις του κινητήρα ο οποίος είναι 12V και να του αυξήσει τη ροπή.
Υπάρχει δυνατότητα επιλογής στροφών 33/45 που γίνεται με πλήκτρα. Το πλατό είναι από Sustarin, ένα ειδικό PTE πολυμερές. Το σετάρισμα του πικάπ είναι εύκολο, ενώ το Pianosa θα έχει σχετικά χαμηλή τιμή σε σχέση με τα μεγαλύτερα μοντέλα Mediterraneo και Giglio.
http://www.hxoseikona.gr/nea/5562-gold-note-pianosa-neo-pikap.html
Pianosa offers a unique combination of performance, high quality materials and Italian design
Our journey started almost 25 years ago and we’ve been focusing on analog ever since because we are in love with vinyls.
Such passion defines all our creations, especially turntables, that we always design with great care and attention to make sure that every single detail can become part of a wonderful source of music.
With Mediterraneo we introduced a new category of turntables and then we applied the same principles to Giglio and eventually to Pianosa, the new addition to the family.
This creations redefine the classic idea of turntable through innovative shapes and quality materials to merge tradition and technology in order to provide the best musical experience for all the senses.
Pianosa features a curved plinth in Italian hardwood Walnut that reminds of the Tuscan landscape and the way its rounded hills, warm sea and gentle waves are one thing with the skill of local craftsmen who hand-made every single plinth from precious woods, a material chosen for its exceptional strength and high density.
The curves of Pianosa are necessary to achieve extra rigidity, allowing us to combine a refined technical design with elegant, smooth lines. The Walnut plinth is also coupled with a 20mm thick MDF plinth and reinforced with a 3mm stainless steel plate.
The Power Supply unit is crucial to guarantee the best performances and Pianosa features electronic controls for 33/45rpm mode and for speed fine adjustments, any adjustment is saved and stored in memory even when unplugged from the AC.
Thanks to our proprietary 12Volt synchronous motor based on PWM technology [Pulse Width Modulation], that transforms the voltage from AC to DC and back to AC, the two AC semi-waves are perfectly coupled to minimise vibrations while providing high torque.
The platter Spindle/Bearing system is made of the best hardened steel and bronze to grant superior precision, the platter is made of Sustarin (23mm thick) - a special PTE rigid but dead at the same time - and the new polished hourglass pulley is shaped to improve the transmission: every detail is designed to reduce vibrations, noise and wow&flutter with improved rotational stability.
EXTRA RIGIDITY AND DAMPENING
Pianosa is built with a multiple plinth structure, with a 50mm curved plinth in Italian Walnut hardwood slats and a lacquered MDF plinth for optimal structural stability. The curved wooden plinth is reinforced with a stainless steel board and the black lacquered MDF plinth to achieve the best vibrational control.
PWM MOTOR TECHNOLOGY
Pianosa features a power control generator based on PWM [Pulse Width Modulation] that transforms the voltage from AC to DC and back to AC, the two AC semi-waves are perfectly coupled to minimise vibrations while providing high torque.
EASY SET UP
Ready to play out of the box, the set up includes a dedicated Gold Note B5.1 tone arm and a custom moulded transparent ultra resistant removable polycarbonate Dust Cover.
HIGH PRECISION SYSTEM
Pianosa features our high precision platter bearing/spindle design with the best coupling tolerance available today: the spindle is made of the hardest carbon rectified and hardened steel to guarantee perfect rotational stability and the bearing is made of polished bronze with a 2/100 mm tolerance.
SILENT PLATTER
The Ultra Dampened platter is made in Sustarin, a special PTE polymer for great rotational stability to deliver the best audio performances.
Specifications
Dimensions: 425mm W | 200mm H | 360mm D
Weight: 15Kg
MAIN DETAILS
Wow & Flutter: 0,1% . . . πολύ δεν είναι ;
Rumble: -77dB
Speed: 33-1/3 and 45 rpm +/-0,1%
Speed changing: electronic with fine pitch control
Transmission: 70 shores elasticity rectified black NBR rounded belt
Power
Mains supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power consumption: 20W max
Motor: 12 Volt High Torque synchronous externally powered
Platter: acrylic Ultra Dead Design Sustarin® 23mm height
Platter spindle: special Split-Spindle™ clamping the platter
Platter bearing: Chromed steel 5mm ball bearing with adjustable brass seat finely Polished bronze case.
Cartridge: refer to the specific model in the correct market area
Upgrades
External AC filter: Arno Power Distributor
FINISHES
Lower Plinth
Italian Walnut, Black or White Lacquered MDF
Upper Plinth
Black Lacquered MDF
Metal
Black anodised aluminium or optionally all Silver
Platter
Black Sustarin
http://www.goldnote.it/pianosa?utm_...32-d1f4db4857-27355837#pianosa-specifications
