Σε λίγες ημέρες κυκλοφορεί το νέο ΖΕΝ phono στην ίδια φιλοσοφία σχεδίασης της σειράς ΖΕΝ με πολύ προσιτή τιμή (160 ευρω) και απόδοση που δεν περιμένεις από την κατηγορία τιμής του.
Highend features - entry level price



ZEN gets groovy with iFi’s new phono stage

Adjustable gain? Tick. Subsonic filter? Tick. Class-leading, ultra-low-noise performance? Tick. The iFi ZEN Phono is an entry-level phono stage to surpass all others.

Southport, England – iFi continues to expand its multi-ward-winning ZEN series of affordable, desktop-sized audio devices with the ZEN Phono – a phono stage (or phono preamplifier, if you prefer) with a peerless performance at just £149, (€159. US$149).

iFi’s pedigree in phono stage design is considerable. The company’s recently launched flagship model, the iPhono3 Black Label, delivers class-leading, ultra-low-noise performance at £999, while the PH-77 from iFi’s sister-company AMR is a £12,000 reference-class phono preamplifier. The ZEN Phono is the first sub-£200 phono stage iFi has made and in terms of sound-per-pound performance it is a truly remarkable device.

For anyone diving headlong into the vinyl revival, the ZEN Phono is the ideal companion for their chosen turntable. It delivers a specification and performance unparalleled at the price, able to match perfectly will all manner of phono cartridges, whether moving magnet or moving coil.

Take the stage

Every turntable needs a phono stage to amplify the low-level output from a phono cartridge to ‘line level’ and apply RIAA equalisation. Some integrated amps and preamps have phono stages built in, but these vary in quality and are rarely as good as a well-designed offboard phono stage placed in the signal chain between the turntable and a line-level input on the amp.

Designing a truly high-performance phono stage is not an easy thing to do. For one thing, it is difficult to amplify the delicate output from a phono cartridge without also amplifying noise. In addition, the wide variation in output from different cartridges means that many phono stages only work optimally with certain cartridge types. These issues are exacerbated at the entry-level end of the phono stage market, where basic circuit design using common off-the-shelf components often leads to a performance that is adequate at best – okay for entry-level, but easily outclassed by spending more.

The ZEN Phono has been designed to push the boundaries of what can be achieved in an entry-level phono stage. Its circuit design is like nothing else at the price, with a range of precisely engineered settings that ensure genuine versatility. Whatever the turntable, whatever the cartridge, the ZEN Phono always delivers a class-leading performance.


A question of balance

The ZEN Phono’s circuitry is of balanced, symmetrical dual-mono design – a topology usually reserved for high-end audio products owing to complexity and cost. Balanced circuit design has the ability the reduce noise and crosstalk, thus increasing sonic clarity, and has long been championed by renowned high-end audio electronics engineer John Curl – a man whose analogue amp designs, including several landmark phono stages, have been lauded since the 1970s.

Curl, now a technical consultant for iFi, has worked with iFi’s in-house technical team, headed by Thorsten Loesch, to produce a circuit design of exceptional quality for such an affordable phono stage. A fully balanced, ultra-low-noise design of this kind is unprecedented at such a low price point.

Sum of the parts

The ZEN Phono’s balanced circuitry contains surface-mounted components of unusual quality in an entry-level design. For example, the capacitors used include TDK C0G and Murata multilayer ceramic types, as well as Panasonic ECPU polyphenylene sulphide film devices – none of these are cheap, but their class-leading ESL (Equivalent Series Resistance) and individual qualities such as high stability and low distortion pay great dividends in terms of sound quality and the accuracy of RIAA equalisation.

In common with many iFi audio products, the ZEN Phono incorporates a custom OV Series op-amp – in this case, the OVA2637. This also contributes greatly to the price-busting audio performance, thanks to ultra-low distortion (0.0001%).

Clean power

The best phono stages on the market create their own power supply off the mains, similar to a mains regenerator, in order to amplify the audio signal from the cartridge without adding noise. The ZEN Phono achieves this aim, but not in a conventional way; it creates a power supply with an oscillation frequency of 1.2MHz, which is 20,000 times that of mains electricity. In this circuit, a filtering capacitor with a 10uF rating is equivalent to 200,000uF at lower, audible frequencies – exceptional filtering power. The power supply circuitry is located on its own ‘island’ on the circuit board to ensure there is no contamination of the audio signal – just super-clean +/-12V DC.


High-end features, entry-level price

Phono cartridges vary greatly in their technical characteristics, but few sub-£200 phono stages handle moving coil (MC) cartridges in addition to moving magnet (MM) types, let alone offer further gain adjustment to make the most of whichever MC cartridge the user chooses to employ.

The ZEN Phono is the exception, delivering a range of gain settings from 36dB to 72dB – impressive even in a much more expensive phono stage. There are four gain settings in total: 36dB (MM), 48dB (high-output MC), 60dB (low-output MC) and 72dB (very-low-output MC). This enables the ZEN Phono to take even the more exotic MC cartridge types in its stride.

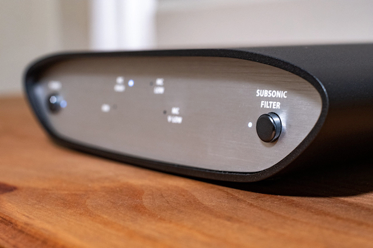

Another rarity at this price level is a subsonic filter, engaged via a front-panel button to tackle the large subsonic signal output caused by warped records. A feature of all iFi phono stages, this proprietary circuit ‘intelligently’ filters out the unwanted subsonic output without affecting any deep bass on the recording – an undesirable side effect of some warp filters.

This is how it works: vinyl cutting lathes incorporate a so-called ‘elliptical filter’, which means that low-level bass on an LP is invariably mono and creates only horizontal movement of the stylus. Therefore, any low-frequency vertical movement of the stylus as it tracks the LP can only be the result of record warp. iFi’s subsonic filter removes the effect of record warp from the vertical plane, doing its job efficiently without the common drawbacks of attenuating any low bass or adding group delay.


Ins and outs

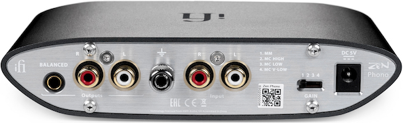

As well as the usual stereo RCA inputs and outputs, gold-plated for optimal signal integrity, the ZEN Phono’s rear sports another phono stage rarity – a 4.4mm Pentaconn balanced output. This can be used to connect to an amp or active speakers equipped with a balanced input – either a Pentaconn 4.4mm input, such as the one found on the ZEN CAN analogue headphone amp, or XLR inputs via an adapter. This enables a fully balanced connection that makes the most of the ZEN Phono’s balanced circuitry – no other phono stage at this price level offers a balanced output option.

A grounding terminal is also provided; attach a turntable’s grounding wire to this to avoid ground loop issues that can cause an audible hum. Even the way the ZEN Phono switches between settings has been engineered to ensure sonic transparency, handled by a microcontroller that only ‘wakes up’ when a setting is changed to avoid any sonically deleterious electronic noise.




Ultra Audio

Επαγγελματίας
Μηνύματα
3.763
Reaction score
2.188
Όλα όσα θέλετε να μάθετε για το ZEN Phono που είναι προσιτό για όλους


Ultra Audio

Επαγγελματίας
Μηνύματα
3.763
Reaction score
2.188
Στο τευχος του περιοδικού ΗΧΟΣ που κυκλοφορεί, θα βρείτε μεταξύ άλλων και το ριβιου του ΖΕΝ Phono.




Ultra Audio

Επαγγελματίας
Μηνύματα
3.763
Reaction score
2.188
Zen Phono στο DagoGo



Ultra Audio

Επαγγελματίας
Μηνύματα
3.763
Reaction score
2.188
Best Affordable Hi-Fi Product - iFi Zen Phono
image.php




The ZEN Phono has been awarded the Best Affordable Hi-Fi Product in the AVForums Editor's Choice Awards 2021
🥂
🎉


"It is one of the most outstanding pieces of affordable engineering in any category I have ever tested. At the asking price, it is an utter bargain and a justifiable award winner."
To read the full article, see the link below!
