Τα χαρακτηριστικα του ειναι τα εξης
https://portal.infocus.com/support/Product Pages/specs.aspx?mic=IN82&on=specs
Native Aspect Ratio:16x9
Supported Aspect Ratio:16:9, 4:3
Brightness: (max ANSI lumens)High Bright: 1500 Lumens
Eco Mode: 1200 Lumens
Contrast Ratio:12000 : 1 Full On/Full Off
Display Technology
arkChip3™ 1080p DLP™ by Texas InstrumentsData Compatibility:VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), 720p (1280x720), 1080p (1920x1080), 480p (854x480), 576p (1024x576)
Video Compatibility:Full NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1035i, 1080i, 1080p/24, 1080p/30, 1080p/50, 1080p/60
Color Wheel (DLP Only):7-segment, D65K (6500K) color calibrated
Native Resolution:1080p
Projector Placement:Ceiling Projection, Front Projection, Rear Projection
SMPTE Brightness:Up to 14.75' (4.5m) diagonal with 1.0 gain screen
Lamp Wattage:High Bright: 300 Watts
Eco Mode: 250 Watts
Lamp Life:High Bright: 2000 Hours
Eco Mode: 2500 Hours
Minimum Image Size:3.06 ft (0.93 m)
Maximum Image Size:16.92 ft (5.16 m)
Standard Lens Zoom:1.2 : 1
Standard Lens Throw Ratio:1.89-2.22:1 (Distance/Width)
Standard Lens Image Offset Ratio:136%
Standard Lens Projection Distance:4.92 - 32.8 ft (1.5 - 10 m)
Digital Keystone Correction (Vertical):+/- 13°
Digital Keystone Correction (Horizontal):Not Available
Lens Shift:Not Available

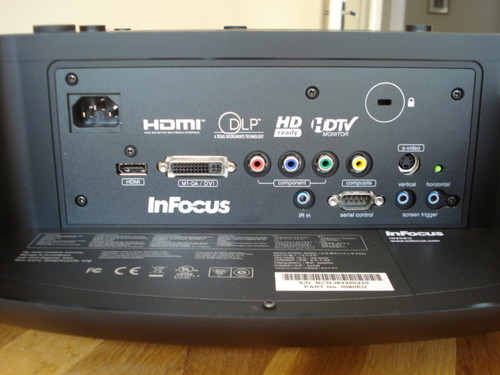

Inputs and Outputs
USB:Not Available
DVI:Number of Inputs: 1
Requires M1 to DVI cable (SP-DVI-D-R)
M1:Number of Inputs: 1
Accepts VGA, DVI, HDMI, & Component Video through optional M1-DA adapters.
HDMI:Number of Inputs: 1
HDCP Supported
BNC:Not Available
Component (RCA):Number of Inputs: 1
VESA (HD15):Number of Inputs: 1
Requires M1 to VGA cable (SP-DVI-A-R)
S-Video:Number of Inputs: 1
4-pin mini-DIN
Composite (RCA):Number of Inputs: 1
Standard Definition TV:Composite RCA, S-Video, Component RCA
Enhanced Definition TV:Component RCA, HDMI, M1-DA
High Definition TV:Component RCA, M1-DA, HDMI
Computer:M1-DA
HDCP Support:Yes
Stereo RCA Jacks Inputs:No
Stereo 3.5 mm Mini-jack Inputs:No
12v trigger for motorized screens (3.5 mm mini-jack):Yes
Projector Control:RS-232, Remote, 3.5mm Wired Remote
Speakers:Not Available
Monitor Output:No
Audio Output:Not Available
Compatibility
Data Compatibility:VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), 720p (1280x720), 1080p (1920x1080), 480p (854x480), 576p (1024x576)
H-Sync Range:Not Available
V-Sync Range:50 - 85Hz
Video Compatibility:Full NTSC, PAL, SECAM, 480i, 480p, 576i, 576p, 720p, 1035i, 1080i, 1080p/24, 1080p/30, 1080p/50, 1080p/60
General
Audible Noise:30 dB
Actual Dimensions:Height: 5.83 in (14.81 cm)
Length: 17 in (43.18 cm)
Width: 18.75 in (47.63 cm)
Actual Weight:14.1 lbs (6.4 kg)
Shipping Dimensions:Height: 10.5 in (26.67 cm)
Length: 23.4 in (59.44 cm)
Width: 21.6 in (54.86 cm)
Shipping Weight:21.2 lbs (9.62 kg)
Projector Warranty:2 years
Lamp Warranty:6 months
Accessories Warranty:90 days
Operating temperature:
(at sea level)50 - 95° F (10 - 35° C)
Maximum Altitude Supported:7500 ft (2286 m)
Typical Power Consumption:350 Watts
Maximum Power Consumption:375 Watts
Power Supply:100 - 240 Volts at 50 - 60 Hz
Menu Languages:English, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese
Approvals:UL, c-UL, TUV GS, GOST, C-Tick, NOM, IRAM, FCC Class B, ICES-003 Class B, CISPR22/EN55022, EN55024/CISPR24, CB certified in accordance with IEC60950-1/EN60950-2, MIC, CE, VCCI, WEEE
