Luxman SQ-N150 integrated amplifier

Mr Spock

demokratischer - sektor
Μηνύματα
18.407
Reaction score
50.360

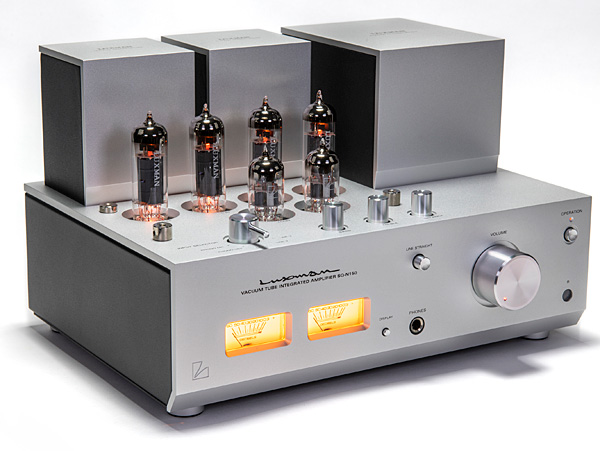

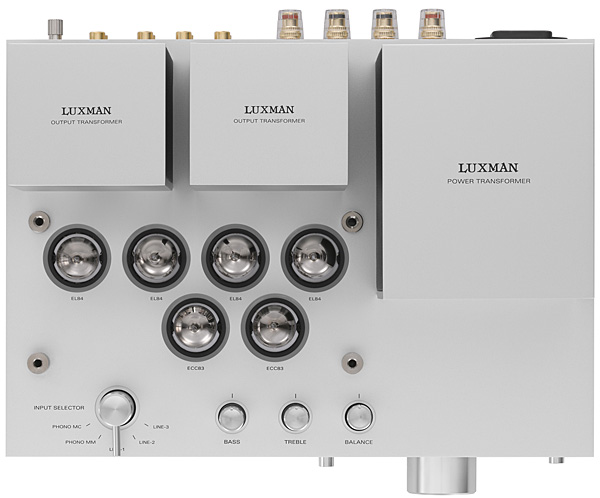

The amp's user controls are spread across its top and front panels. On the former are a rotary Input Selector switch, followed by three small potentiometers for Bass, Treble, and Balance. On the SQ-N150's front panel are twin output-level VU meters, with a single Display control button. To the right of that are a Line Straight pushbutton switch—this bypasses the tone controls—plus a Phones jack, a Volume knob (with an embedded orange LED that flashes when the volume level is changed), an on-off button labeled Operation (with its own orange LED), and an IR receiver for the remote handset



My favorite bass-range torture test track is side A of Kraftwerk's Tour De France Soundtracks (2-LP, Astralwerks ASW 91708-1, 2003). Through serene synthesizer blips and bleeps, the album travels a marathon journey of rolling melodies and chirpy drum machine rhythms. Side A culminates in a shuddering 8th-note synthesizer pattern, a stream of nearly subsonic bass notes that some amplifiers might have trouble reproducing clearly. I was surprised when the SQ-N150 replicated this sequence with good warmth and weight in a large soundstage, if not achieving the definition or detail I've heard from my reference equipment. The SQ-N150 replicated the note pattern's pulsing, strobe-like character without sacrificing its flow. Stereo images were well-proportioned in a soundstage that was wider than it was deep




The SQ-N150 is one of the most transparent components I've had in my system. It exposed the sonic qualities of ancillary components both upstream and down. It was largely neutral, but when it did impose a personality on music, from vinyl or CD, it veered toward a crisp treble allied to a natural, fleshy, warm midrange. Acoustic and electric bass, bass drum, timpani, organ bass pedal notes, and lower-register string and brass instruments could sound soft with a lack of inner detail. But the Luxman could also surprise with full, rich bass notes, depending on the recording. While the Luxman didn't match the saturated tonal color or large images of my Shindo separates, or the low-end traction of a solid-state amplifier, it provided sweet upper frequency tonality and satisfying bass notes overall—especially so for its 10Wpc output power rating. And as a bonus, the Luxman obviously has a good phono stage and headphone output. And while the amp's 10Wpc may be suited only to speakers of high sensitivity, that narrowed field just makes the choice easier


Luxman SQ-N150, frequency response at 2.83V into: simulated loudspeaker load (gray), 8 ohms (left channel blue, right red), 4 ohms (left cyan, right magenta), 2 ohms (green) (1dB/vertical div.)





Tubed integrated amplifier with remote control. Tube complement: 4 EL84 output tubes, 2 12AX7/ ECC83 small-signal tubes. Inputs: 3 line, single-ended (RCA), phono MM/MC (RCA). Maximum power output: 10Wpc into 6 ohms (8.25dBW). Frequency response: 20Hz–20kHz ±0.5dB (phono); 20Hz–80kHz, –3dB (line). THD (1kHz, 10W into 6 ohms): 1% or less. Sensitivity/Input impedance: 3.0mV/47k ohms (phono, MM); 0.33mV/100 ohms (Phono, MC); 180mV/47k ohms (line). S/N (IHF-A): >84dB (phono, MM); >64dB (phono, MC); >95dB (line). Power consumption: 98W.



Post automatically merged:

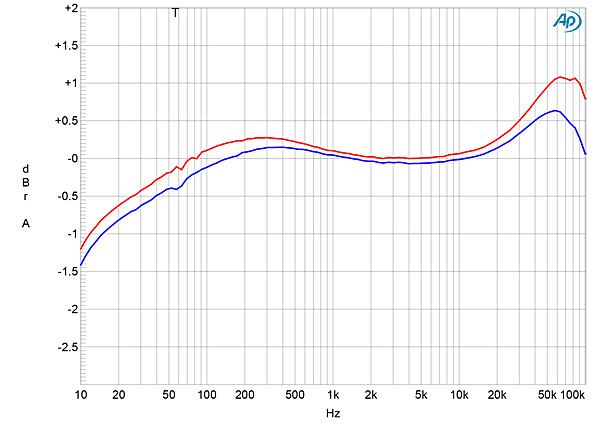

Luxman SQ-N150, MM input, response with RIAA correction (left channel blue, right red) (0.5dB/vertical div.).

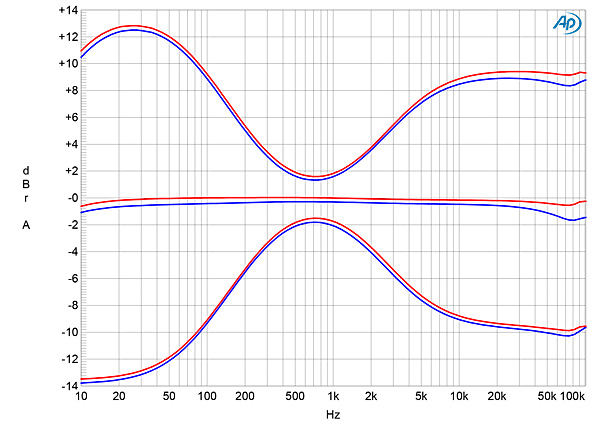

Luxman SQ-N150, frequency response at 300mV into 8 ohms with Bass and Treble controls set to "0dB," maximum, and minimum (left channel blue, right red) (5dB/vertical div.).

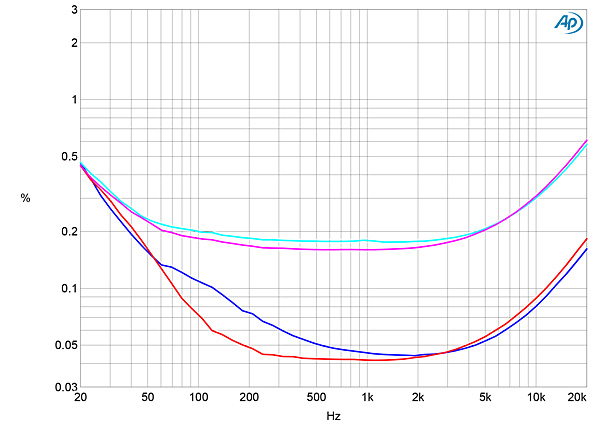

Luxman SQ-N150, THD+N (%) vs frequency at 2.38V into: 8 ohms (left channel blue, right red), 4 ohms (left cyan, right magenta).

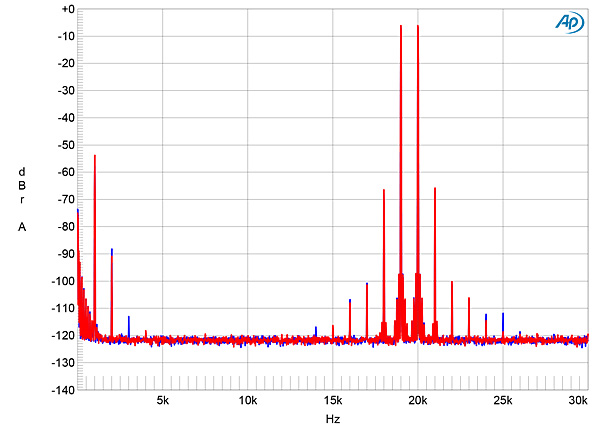

Luxman SQ-N150, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 3W peak into 8 ohms (left channel blue, right red; linear frequency scale).








Decembered

Μαϊμού
Μηνύματα
16.492
Reaction score
37.569
"used to own a sweet-sounding Vox AC30 guitar amplifier back in the 1960s, which also used a quartet of EL84s."
... και οχι μονο ο Vox.. να διαβασω παρακατω ?



Abessalom

Βαρώνος
Μηνύματα
18.096
Reaction score
30.053
10 βατακια ( στα 6 ω κιολας ) ?
αλλα απ τα καλα, τα μαγικα , τα μουσικα?

Δεν μπορούν να πουλήσουν μόνο το σασί (με τα συμπαραμαρτούντα του εννοείται) για να βάλουμε κανένα θηρίο ψηφιακό;
Βλέπω τα VUμετρα και το φωτιζόμενο ποτ της έντασης και μου τρέχουν τα σάλια λεμε!
Δεν μπορούν να καταλάβουν ότι υπάρχει μερίδα του κοινού που έλκεται από το λεγόμενο old school όχι τόσο λόγω του ήχου αλλά της αισθητικής;







Μηνύματα
3.860
Reaction score
632
Μάλλον δεν είναι καλός, έχει ρυθμιστικά τονικότητας!... :p

Απίθανος σχεδιασμός, respect...



Mr Spock

demokratischer - sektor
Μηνύματα
18.407
Reaction score
50.360
Όλοι οι Luxman έχουν ρυθμιστικά
- και οι περισσότεροι γιαπωνέζικοι . . . respect . . . σέβονται τις προσωπικές μας ιδιεταιρότητες . . . γιατί δηλαδή να μήν μπορείς να μειώσεις μπάσο στο mezzanine των massive attack ( πρέπει να είναι 10db+ , πάνω από το υπόλοιπο φάσμα ) , εάν δεν σου αρέσει ή δεν το σηκώνει το σύστημα/χώρος


Μηνύματα
261
Reaction score
80
Δεν μπορούν να πουλήσουν μόνο το σασί (με τα συμπαραμαρτούντα του εννοείται) για να βάλουμε κανένα θηρίο ψηφιακό;
Βλέπω τα VUμετρα και το φωτιζόμενο ποτ της έντασης και μου τρέχουν τα σάλια λεμε!
Δεν μπορούν να καταλάβουν ότι υπάρχει μερίδα του κοινού που έλκεται από το λεγόμενο old school όχι τόσο λόγω του ήχου αλλά της αισθητικής;


Attachments


Μηνύματα
1.768
Reaction score
2.802
Είναι ο δικός σου;
Ελπίζω να του έχεις βάλει κάποια ματόχαντρα μη στον ματιάσει κάνεις, υπάρχουν πολύ ρετρολάγνοι εδώ..:smile:


Μηνύματα
261
Reaction score
80

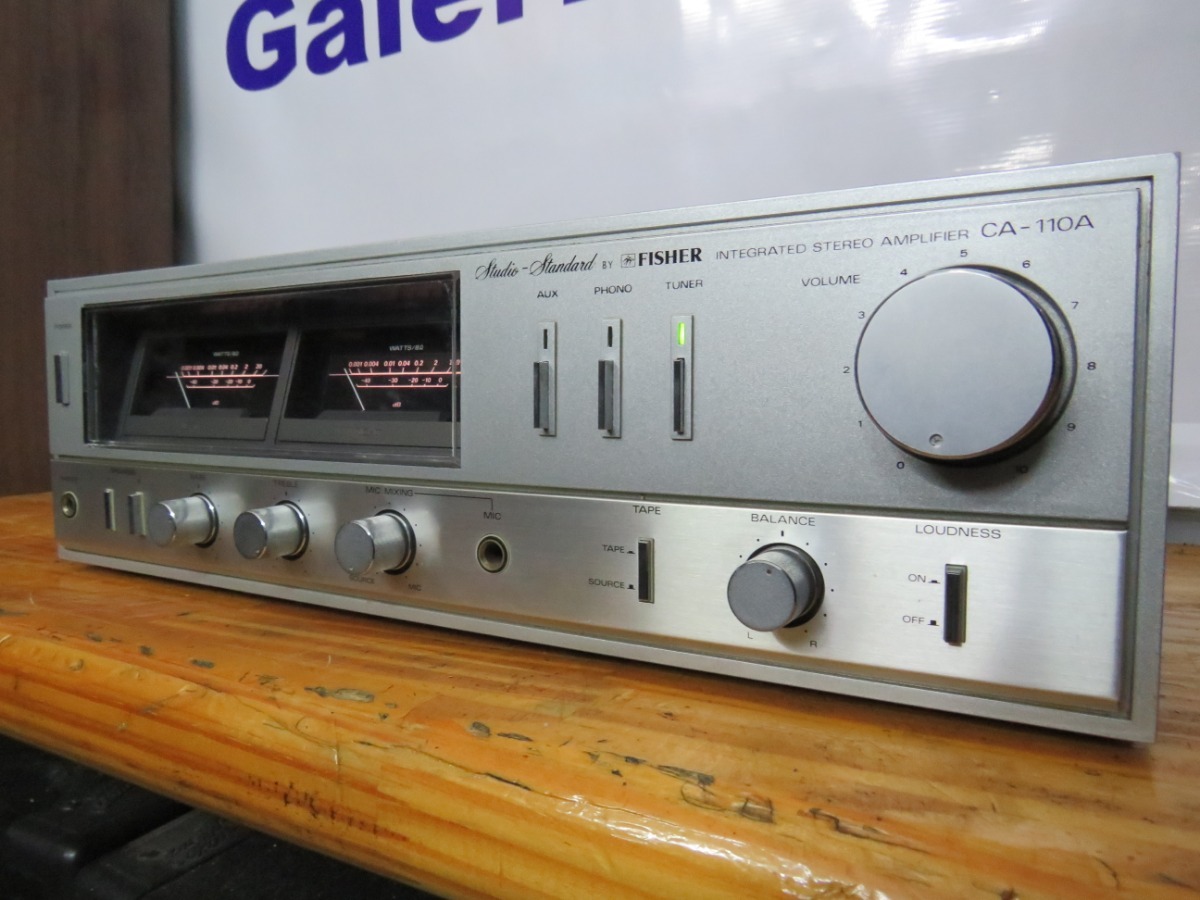

...δεν ειναι o δικός μου, αύριο όμως με το φως της ημέρας θα τον φωτογραφησω και θα αναρτηθεί μαζί με τα αντίστοιχα vu meters και του deck ! Χαχαχα επειδή το σύστημα περιλαμβάνει και fisher deck με vu meters παρακαλώ! Χαχαχα
Α ! Και για την ματοχαντρα, δεν έχει ανάγκη, δεν παθαίνει τίποτα! Εδώ έχει αντέξει κι επιβιώσει από το "κοντινό" 1982 !!! :)
