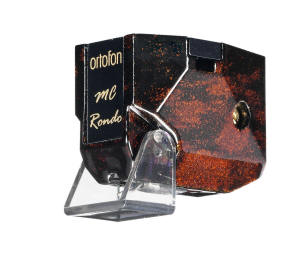

Ortofon Rondo

[Σπύρος Μπλάτσιος]

Μία νέα σειρά από προσιτές κεφαλές MC παρουσίασε η Ortofon. Η σειρά Rondo περιλαμβάνει 3 κεφαλές την Blue, την Red και την Bronze.

TECHNICAL DATA MC RONDO BRONZE
Output voltage at 1000 Hz, 5cm/sec. 500 µV

Channel balance at 1 kHz 1 dB

Channel separation at 1 kHz 25 dB

Channel separation at 15 kHz 18 dB

Frequency range 20-40.000 Hz

Frequency response 20-20.000 Hz ±1,5 dB

FIM distortion at recommended tracking force, DIN 45.542 < 1%

Tracking ability at 315Hz at recommended tracking force 90 µm

Compliance, dynamic, lateral 15 µm/mN

Stylus type Nude FG80, tapered Al. cantilever

Stylus tip radius r/R 5/80 µm

Equivalent stylus tip mass 0,30 mg

Tracking force range 2-2,5 g (20-25 mN)

Tracking force, recommended 2,3 g (23 mN)

Tracking angle 20°

Internal impedance, DC resistance 6 Ohm

Recommended load impedance 10-200 Ohm

Cartridge body material Grinded wood/Resin comp.

Cartridge colour Bronze

Cartridge weight 10,5 g

TECHNICAL DATA MC RONDO BLUE
Output voltage at 1000 Hz, 5cm/sec. 500 µV

Channel balance at 1 kHz 1,5 dB

Channel separation at 1 kHz 25 dB

Channel separation at 15 kHz 18 dB

Frequency range 20-35.000 Hz

Frequency response 20-20.000 Hz ±1,5 dB

FIM distortion at recommended tracking force, DIN 45.542 < 1%

Tracking ability at 315Hz at recommended tracking force 85 µm

Compliance, dynamic, lateral 15 µm/mN

Stylus type Nude FG70, Al. cantilever

Stylus tip radius r/R 5/70 µm

Equivalent stylus tip mass 0,30 mg

Tracking force range 2-2,5 g (20-25 mN)

Tracking force, recommended 2,3 g (23 mN)

Tracking angle 20°

Internal impedance, DC resistance 6 Ohm

Recommended load impedance 10-200 Ohm

Cartridge body material Grinded wood/Resin com.

Cartridge colour Blue

Cartridge weight 10,5 g

TECHNICAL DATA MC RONDO RED
Output voltage at 1000 Hz, 5cm/sec. 500 µV

Channel balance at 1 kHz 2 dB

Channel separation at 1 kHz 22 dB

Channel separation at 15 kHz 15 dB

Frequency range 20-30.000 Hz

Frequency response 20-20.000 Hz ±2 dB

FIM distortion at recommended tracking force, DIN 45.542 < 1%

Tracking ability at 315Hz at recommended tracking force 80 µm

Compliance, dynamic, lateral 15 µm/mN

Stylus type Nude elliptical Al. cantilever

Stylus tip radius r/R 8/18 µm

Equivalent stylus tip mass 0,30 mg

Tracking force range 2-2,5 g (20-25 mN)

Tracking force, recommended 2,3 g (23 mN)

Tracking angle 20°

Internal impedance, DC resistance 6 Ohm

Recommended load impedance 10-200 Ohm

Cartridge body material Grinded wood/Resin comp.

Cartridge colour Red

Cartridge weight 10,5 g



[Σπύρος Μπλάτσιος]

Οι τιμές στην Γερμανία είναι 360€ η red, 460€ η Blue και 600€ η Bronze...
