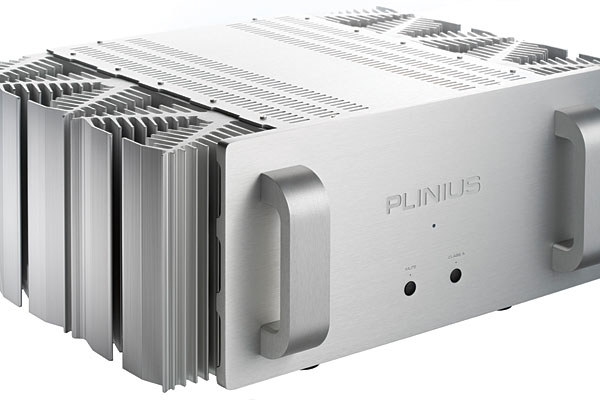

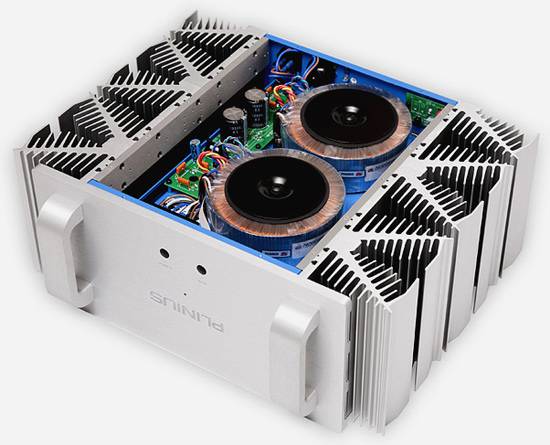

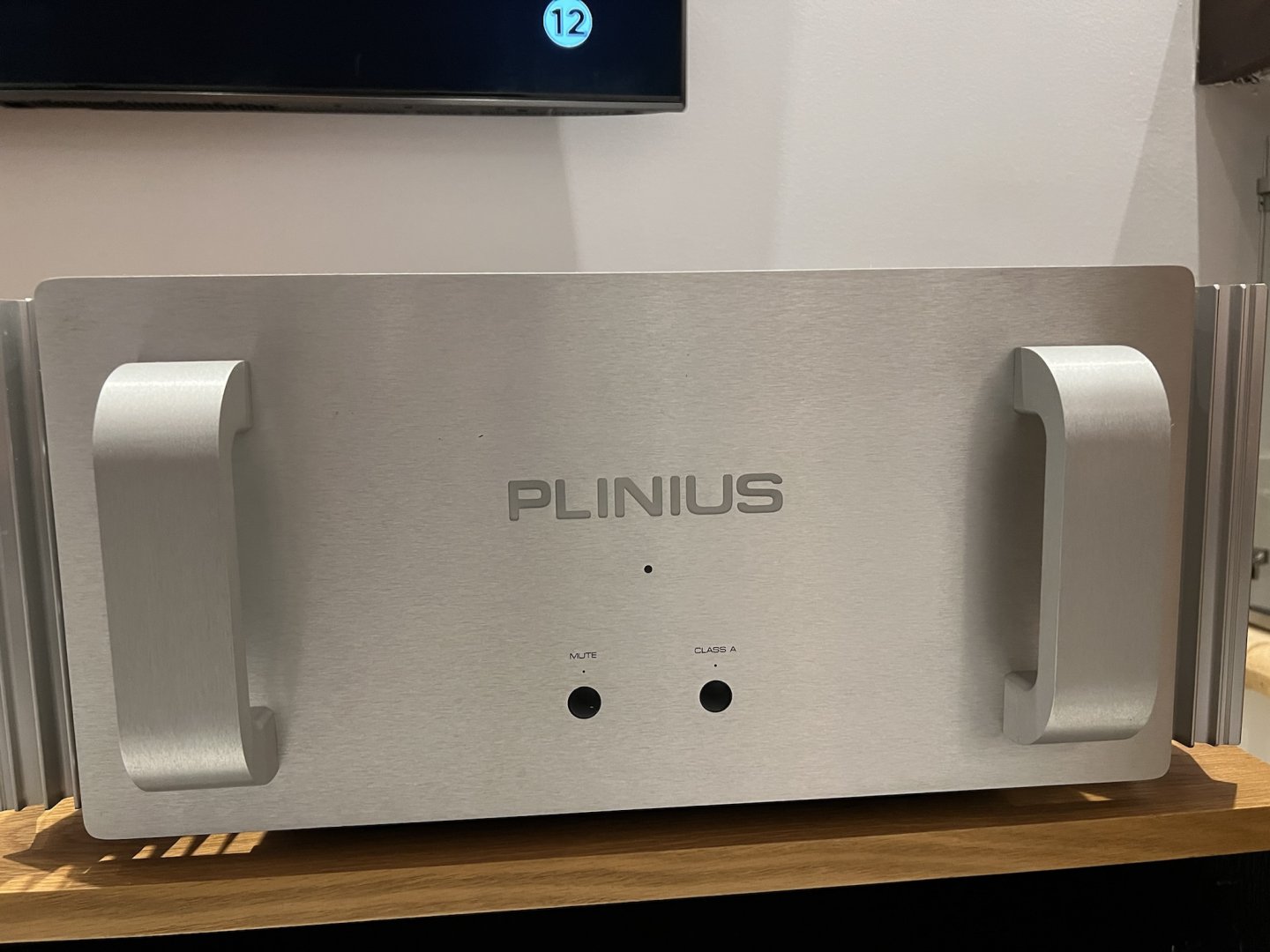

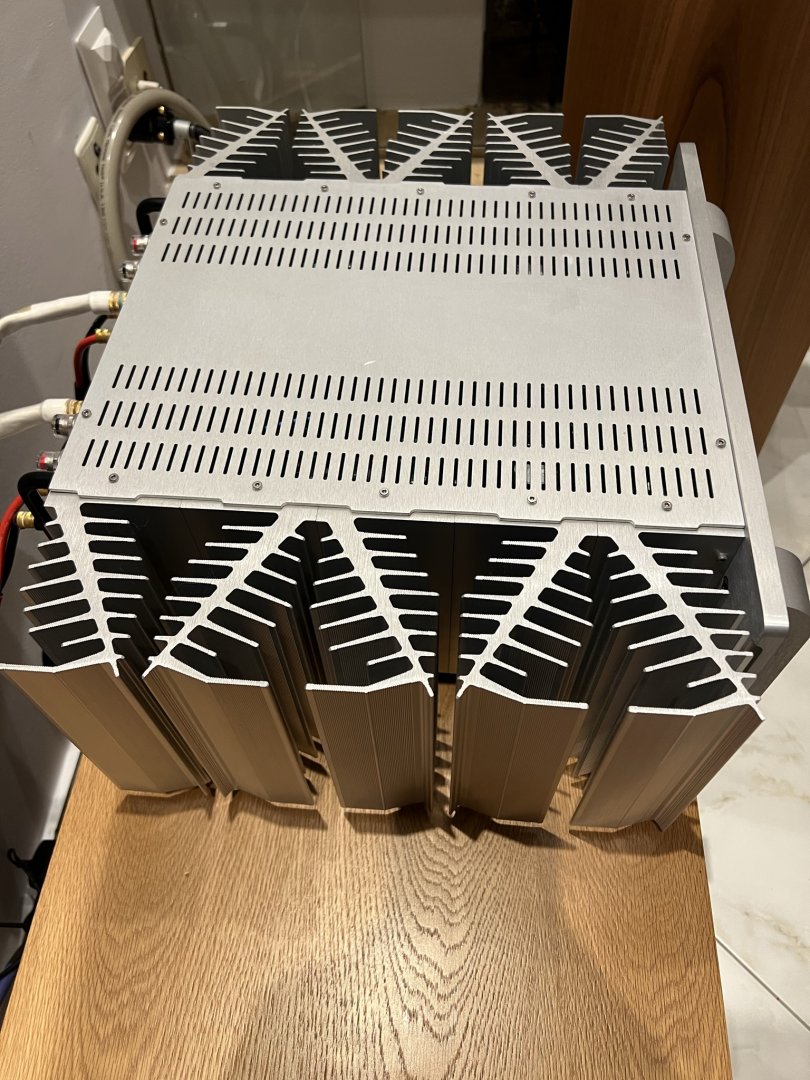

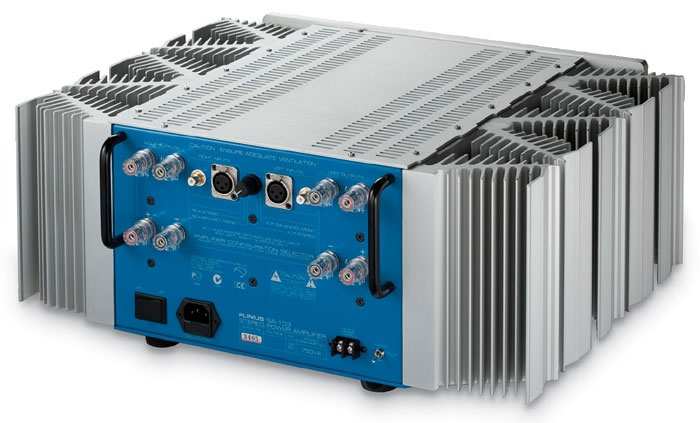

Plinius SA 103 Power Amp

Status
Not open for further replies.
Μηνύματα
33
Reaction score
10

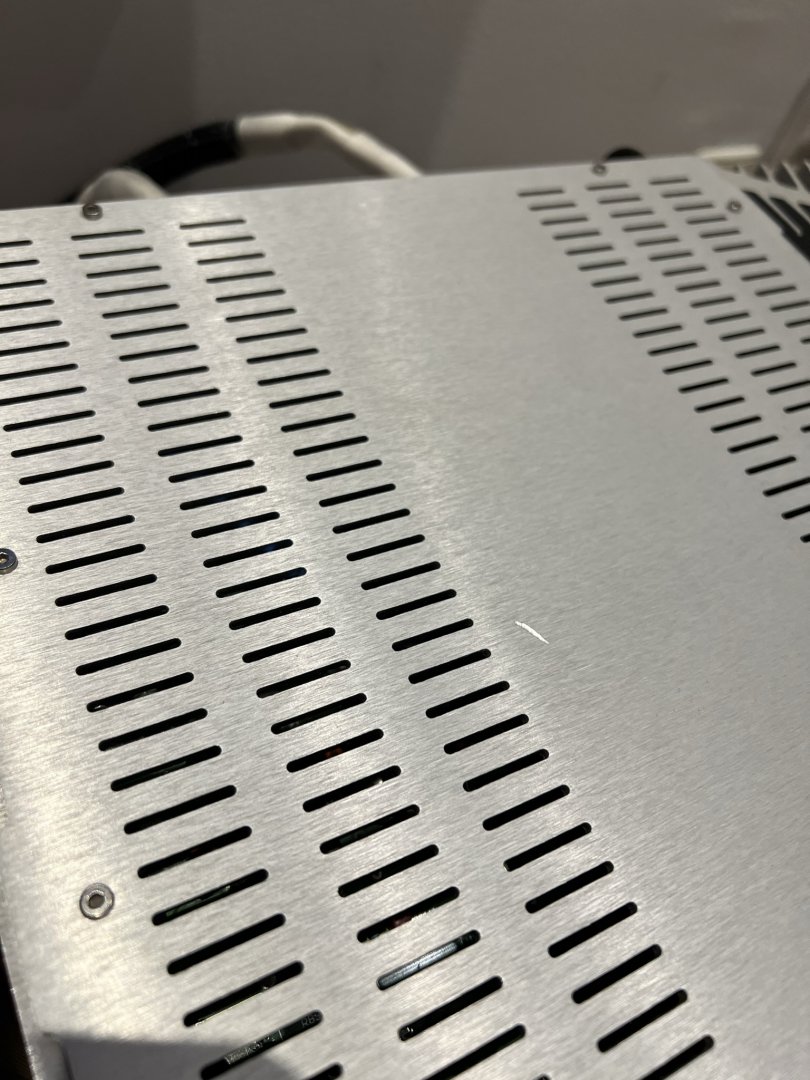

Σε τέλεια κατάσταση με λίγες ώρες, αγορασμένο απο την αντιπροσωπία το 2017 με όλες του τις συσκευασίες. Ενα πολύ μικρό σημαδάκι έχει στο πάνω μέρος φαίνεται κα στις φωτογραφίες.
Τιμη: 3.900

STEREOPHILE

SIXMOONS

Description: Solid-state, two-channel power amplifier with an output stage that can be operated in either class-A or class-A/B. Maximum output power (both channels driven, 20Hz–20kHz, at <0.05% THD): 125Wpc into 8 ohms (21dBW), 220Wpc into 4 ohms (20.4dBW); switched to bridged mono mode, 400W into 8 ohms (26dBW), 730W into 4 ohms (25.6dBW). Frequency response: 20Hz–20kHz, ±0.2dB, 0dB at 1Hz and –3dB at 70kHz. Distortion: typically <0.05% THD at rated power, 0.1% THD and IM worst case prior to clipping. Current output: 50A short-duration peak per channel. Input impedance: 47k ohms. Voltage gain: RCA inputs, 32dB; balanced inputs, 38dB. Power/Current consumption: 485W/2.1A, class-A Idle. 92W/0.4A class-A/B Idle/Standby.


Attachments

Last edited:
