Sony SA-Z1

m1ts0s

News poster
Editor
Μηνύματα
2.331
Reaction score
3.635


Sony has announced the latest addition to its Signature Series with the SA-Z1 near field powered speaker system. This speaker system is ideal for those who pursue music with ultimate resolution and spatial representation in their own personal space. Its variety of input functions allow for easy installation with your current personal or headphone audio setup. Part of Sony’s Signature Series, the SA-Z1 achieves breath-taking sound reproduction thanks to years of audio mastery, combining the highest quality acoustic, electronic and signal processing technologies.

Orchestration of Sony’s audio expertise

The acoustic design concept of SA-Z1 is an ideal point sound source. The physical layout of the driver units, along with the time alignment of soundwaves from each driver unit, is the key in realising this concept. A coaxial layout of woofers and tweeters is an ideal physical arrangement, to better integrate the sound from every driver unit. Sony pursued the accuracy of the coaxial layout in micro meter order. Time alignment of the sound waves is achieved by Sony’s unique algorithm on the FPGA processor. This precisely controls the timing of every driver unit’s output so that the leading edge of the sound waves align. Thanks to this engineering, the SA-Z1 produces a level of audio quality, resolution and sound stage like you’ve never heard from any speakers before.

The SA-Z1 speakers realistically reproduce a wide and deep acoustic field. Gone are the days of narrow and flat sound where you only feel the front side of the speaker system. Now you can feel the height and depth of the music thanks to the “Tsuzumi" layout with side ducts. The horizontally opposed layout of two woofers cancel out each other’s vibrations. Sound from the assist woofer, is radiated through side ducts, re-creating a spatial acoustic field.

The I-ARRAY System consists of three tweeters that work together as one to ensure wide directivity and to deliver rich musical expression. The layout of tweeters is a surgical process. Careless layout easily leads to wave interference that makes peaks and dips on the frequency response. Sony’s advanced computer based physical simulation technology found a single point where interference doesn’t happen for superior sound.

The D.A. Hybrid Amplifier Circuit, inherited from the TA-ZH1ES Signature Series headphone amplifier, has evolved with a newly applied GaN (Gallium Nitride) power semiconductor. GaN significantly reduces distortion and gives 100kHz reproduction ability to the D.A. Hybrid Amplifier Circuit.

The SA-Z1 has a solid and resonance-free body structure that delivers clear and pure sound. The enclosure is made of six pieces of aluminium plate. Every plate is joined in a special way inspired by Japanese traditional construction methods.

Compatible with your current personal audio setup

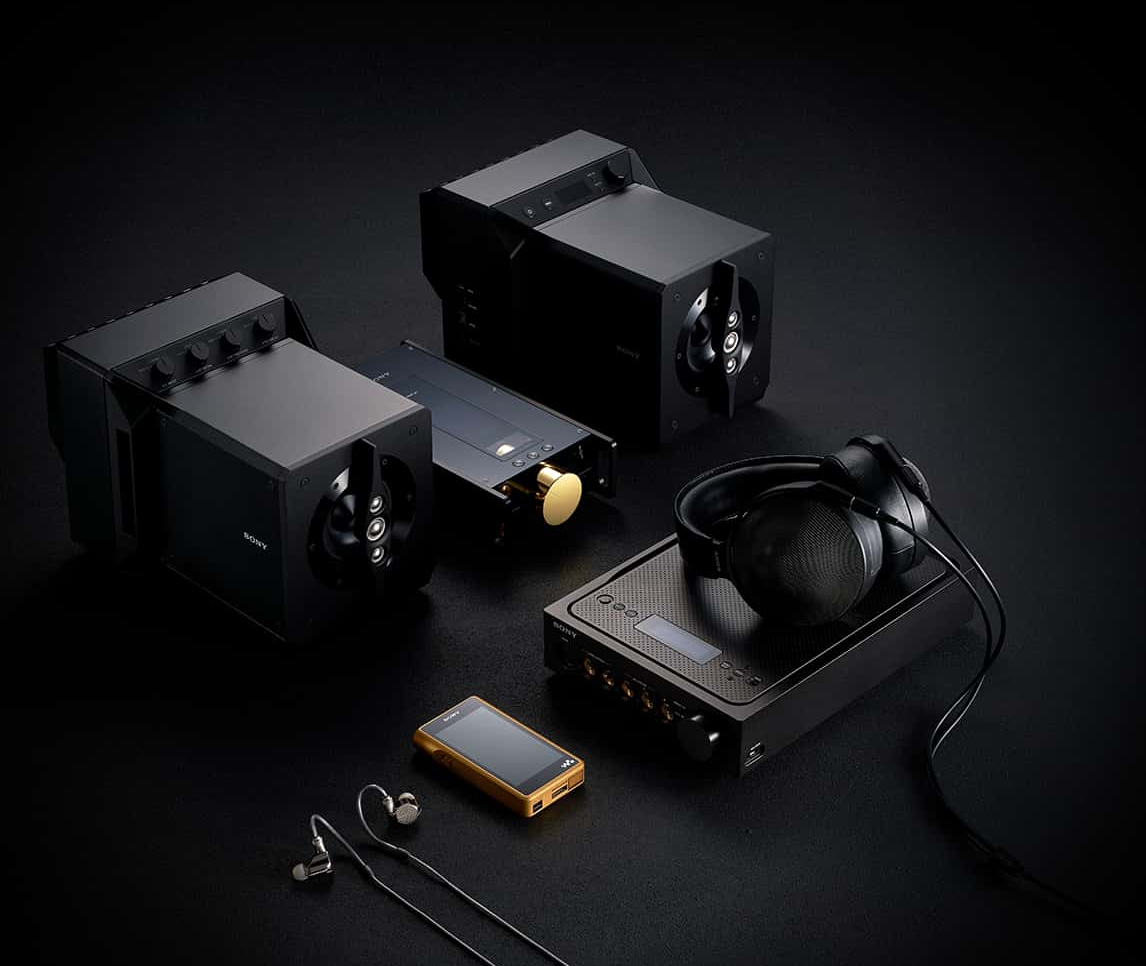

You can easily install the SA-Z1 in your current personal or headphone audio setup with its variety of digital and analogue inputs. A PC, Walkman, and other Sony Signature Series music players make for perfect pairings. The SA-Z1 is designed for use in your own personal space, like a desktop environment. Since near field speakers are relatively free from room acoustic conditions that seriously affect audio performance, the SA-Z1 effortlessly spreads out its large sound stage right in front of you.

Discover your own sound
The SA-Z1 has four unique sound tuning settings, with the default position designed to release the full musical potential of an audio track. There’s also room for you to fine tune the sound to your personal taste without any signal loss. You can change settings, including the blending ratio of the digital and analogue amplifier, control of the assist woofer motion, the cut off frequency of the assist woofer and adjust the “assist tweeter” time alignment. With these customisable functions, you can create an ideal sound tuned specifically to your ears.

The SA-Z1 will be priced at approximately €7,000 / £6,500 and available from Spring 2020.

https://www.sony.com/electronics/hd-speakers/sa-z1


Mr Spock

demokratischer - sektor
Μηνύματα
18.411
Reaction score
50.379

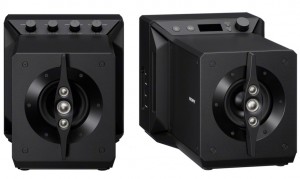

View attachment 137050

Τα SA-Z1 έχουν καμπίνες χονδρού αλουμινίου, δύο μιντ-γούφερ πλάτη με πλάτη και μια συστοιχία τουίτερ στην πρόσοψη, ομοαξονικά με το ένα μιντ-γούφερ. Έτσι είναι χρονικά ευθυγραμμισμένα μεταξύ τους.

Κάθε μεγάφωνο οδηγείται από τον δικό του ενισχυτή, ενώ παράλληλα συστήματα DSP ρυθμίζουν το σύστημα για μεγαλύτερη ακρίβεια σε επίπεδο μικρομέτρου.

Τα μιντ-γούφερ είναι αντίθετα τοποθετημένα μεταξύ τους ώστε να ακυρώνει το ένα του άλλου τις δονήσεις, ενώ ο ήχος του δεύτερου μιντ-γούφερ που είναι τοποθετημένο μέσα στο ηχείο… εξάγεται από πλευρικές οπές προσδίδοντας μια μεγάλη χωρική έκταση στον ήχο. Τα τρία τουίτερ, το κύριο και τα δύο βοηθητικά, ονομάζονται ως σύστημα I-ARRAYTM.

Έχουν XLR και RCA εισόδους, αλλά και USB και οπτική. Τα ηχεία συνδέονται μεταξύ τους με ένα χονδρό καλώδιο που μεταφέρει ακόμη και σήματα συγχρονισμού. Οι ενισχυτές είναι

Τύπου D.A. Hybrid Amplifier Circuit, με ημιαγωγούς ισχύος από Νιτρίδιο Γαλλίου GaN (Gallium Nitride).
Το ένα ηχείο έχει ρυθμιστικά σχετικά με την γεύση του προσωπικού ήχου που θέλουμε να δημιουργήσουμε και το άλλο την οθόνη ενδείξεων, την ένταση και την επιλογή εισόδων.
Το ρυθμιστικό έντασης είναι αναλογικό, ενώ από την USB παίζουν μέχρι και DSD υψηλής ανάλυσης.



View attachment 137051


View attachment 137052


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Coherent impulse response
Well-designed multi-way speakers have a flat and broad frequency response, but disengaging the impulse response (time-coherence) risks a compromised soundstage. Conversely, single driver units offer excellent impulse response but sacrifice frequency response. The SA-Z1’s custom digital processing and coaxial layout delivers both – the sonic realism of a precise impulse response, along with a wide soundstage and frequency presentation. [1. Input signal (impulse) 2. Accurate wave form 3. Incorrect wave form]


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Time coherence
The SA-Z1’s multi-amplifier system and unique Field Programmable Gate Array (FPGA) perfectly synchronises the wave front between driver units. The precisely aligned wave front and broad frequency response are capable of delivering both the power of an expansive orchestral sound stage or the focus of an intimate solo.


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Coaxial driver layout
For reference-quality near field listening, the SA-Z1 features a coaxial speaker layout. Combined with the FPGA for time coherence, this design offers ideal acoustic centring across the frequency range. The result is phase coherence – essential for clear stereo imaging.


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Bass expansion duct
The unique ‘Tsuzumi’ design also supports wide sound dispersion. Unlike conventional speakers, the rear bass expansion duct lets bass radiate to the sides as well as forward – just like sound sources in nature – so you experience a natural, realistic sound field that describes an even depth and height of sound space.


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Aluminium body
Featuring body parts using two different alloys of aluminium, the SA-Z1 effectively minimises noise distortion caused by resonance of enclosure.


Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series

Gallium Nitride
MOSFET transistors are typically used for digital amplifier switching, however they can produce ringing distortion due to slow switching speed. By using Gallium Nitride (GaN), we can suppress the ringing through high-speed switching. This means that amplification errors are significantly reduced, even before the signal is error-corrected by the feed-forward analogue amplifier. [1. Ideal 2.GaN 3.MOSFET]



  • Like
Reactions: vet

vet

Audio, Δημοσιογράφος
Μηνύματα
8.231
Reaction score
8.114
Picture of SA-Z1 Hi-Res Near Field Powered Speaker System Signature Series


Aluminium body
Featuring body parts using two different alloys of aluminium, the SA-Z1 effectively minimises noise distortion caused by resonance of enclosure

Δηλαδή το υπέροχο ηχόχρωμα της καμπίνας το λέει noise distortion;
Θα στείλω λινκ εκεί στην Sony της Αγγλικής τεράστιας εταιρείας να μάθουν να κουρδιζουν τα ηχεία τους.


costas EAR

Δόκτωρ ΔιαXύσιος
Editor
Μηνύματα
51.114
Reaction score
124.689
Στειλτους μια μέτρηση των μπρρρζζζζζτ της καμπίνας των χαρμπεθ, και μόλις μάθουν την τιμή των χαρμπεθ, θα κάνουν χαρακίρι.
Post automatically merged:

Πέραν του χαβαλε, εντάξει, εξαιρετικό το ηχείο της Σόνι, σκίζει στη θεωρία και είμαι βέβαιος και στην πράξη θα παίζει ανάλογα.

Αλλά 7.000€ ???

3.500 € το τεμάχιο;;;;

Ξέρεις τι τζενελεκ παίρνω σε αυτά τα λεφτά;

Τι Άνταμ; Τι Κλάιν Μάιν; Τι νταϊναόντιο;
Τυρί και ψωμί Σόνι...
Το γ@μησες και ψόφησε.

Στο 1,5 χιλιάρικο το τεμάχιο αν έβγαινε, θα έκανε θραύση.
Τώρα, στα 3,5; Θα πάρουν τα 3 μου.

Βέβαια η Σόνυ είναι γνωστό πως που και που χαϊεντιζει, βγάζοντας κάτι πολύ ακριβό και τεχνολογικά άρτιο, ξεφεύγοντας από το επίπεδο του consumer.
Post automatically merged:

Λυπάμαι, αλλά δε μπορεί το κορ59 να βγαίνει στα 2,5 και το Σόνι στα 3,5, δε γίνεται.
Το 8351 στα 3 και το Σόνι στα 3,5; Ανέκδοτο.
Κακόγουστο αστείο.

Last edited:

m1ts0s

News poster
Editor
Μηνύματα
2.331
Reaction score
3.635
Εννοείται πως έχεις δίκιο, αλλά τους δίνω εύσημα επειδή παρουσιάζουν μια πιο ορθολογική υλοποίηση στο χώρο του hi end.


Μηνύματα
252
Reaction score
645
Πολλή τεχνολογία πολλά woofers και tweeters αλλά και πολλά χρήματα σε σχέση με τον ανταγωνισμό.
Επίσης, επειδή είμαι σε φάση στησίματος ενός desktop nearfield συστήματος με ζεύγος ενεργά και ακουστικά, παρατηρώ πως η μεγαλύτερη διάσταση των ηχείων είναι το βάθος. Δεν έχω ακριβείς διαστάσεις αλλά νομίζω πως το μεγάλο βάθος των ηχείων κάνει γενικά δύσκολη την desktop τοποθέτηση,


Μηνύματα
4.867
Reaction score
3.925
Πολλή τεχνολογία πολλά woofers και tweeters αλλά και πολλά χρήματα σε σχέση με τον ανταγωνισμό.
Επίσης, επειδή είμαι σε φάση στησίματος ενός desktop nearfield συστήματος με ζεύγος ενεργά και ακουστικά, παρατηρώ πως η μεγαλύτερη διάσταση των ηχείων είναι το βάθος. Δεν έχω ακριβείς διαστάσεις αλλά νομίζω πως το μεγάλο βάθος των ηχείων κάνει γενικά δύσκολη την desktop τοποθέτηση,
Για πες εστω στο περιπου, ποσο θα πρεπει να εχει βαθος ένα ενεργο ηχειο για να είναι ευκολη η τοποθετηση.


Μηνύματα
252
Reaction score
645
Μα δεν μιλώ για "ένα ενεργό ηχείο" γενικά. Μιλώ για desktop σύστημα που θα τοποθετηθεί πάνω σε ένα μέτριο γραφείο για nearfield ακρόαση. Αν είναι 40-50 πόντους (κάπου εκεί υπολογίζω το Sony) το βάθος του ηχείου δεν μπορώ να το βάλω πάνω στο γραφείο του σπιτιού μου που έχει βάθος 60 πόντους. Τώρα αν το γραφείο σου έχει βάθος 1 μέτρο, βάζεις επάνω ότι θέλεις.
Αν πάμε σε άλλα nearfield ή desktop :
Το Genelec 8341 ας πούμε είναι 243 mm
Το Focal Shape 65 είναι 285 mm
Το Dynaudio LYD-7 είναι 296 mm
Το Adam A7X είναι 280 mm

Σε όλα αυτά τα ηχεία η μεγαλύτερη διάσταση είναι το ύψος και η μικρότερη το βάθος. Στο Sony συμβαίνει το ανάποδο. Μου κάνει εντύπωση η σχεδίασή του αφού η Sony το πλασάρει ως Desktop. Ακόμα και στη φωτό που τα έχουν τοποθετήσει σε τεράστιο γραφείο φαίνεται το μεγάλο βάθος του.



Mr Spock

demokratischer - sektor
Μηνύματα
18.411
Reaction score
50.379
- αποφεύγω να βάζω τιμές, εξάλλου δεν γνωρίζουμε την πραγματική τελική

- είναι όντως ακριβά αλλά η Sony το κάνει κατά καιρούς και μετά από κάποιο διάστημα η τιμή προσγειωνεται


Μηνύματα
252
Reaction score
645
Η Sony το κάνει αυτό μια στο τόσο. Κυκλοφορεί κάτι super τεχνολογικά και μηχανολογικά, πολλές φορές και σε limited κομμάτα και το τιμολογεί hiendικά. Έτσι επειδή μπορούν.





Μηνύματα
7.219
Reaction score
4.602
Είναι μεγάλη εταιρεία η Σόνυ .
Αν αποφασίσει να ασχοληθεί με κάτι αλλάζουν τα δεδομένα .
Τιμολόγιακα βέβαια πάντα ξεφεύγει ...
