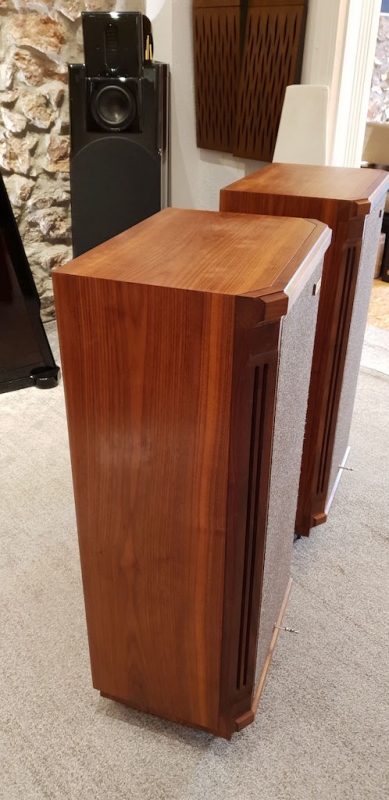

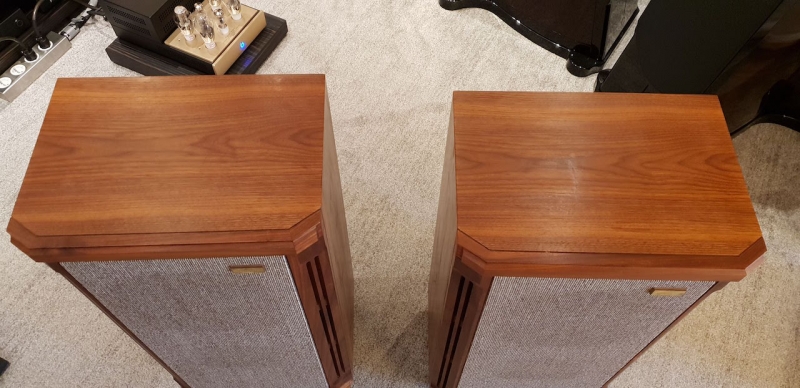

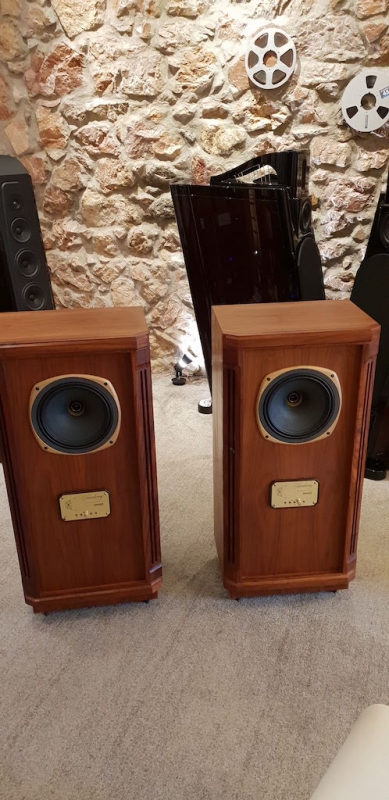

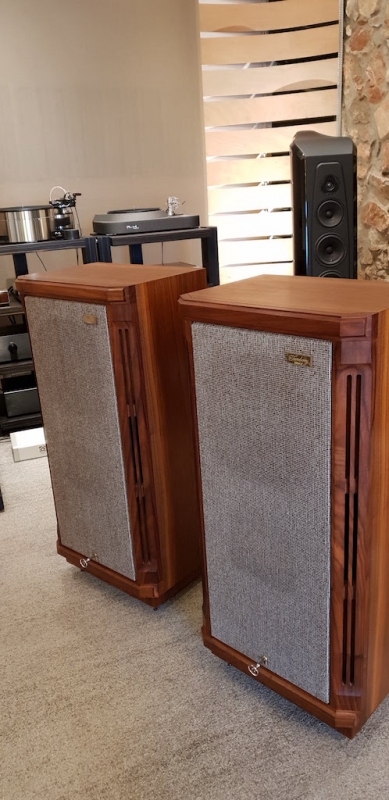

Tannoy Turnberry prestige series σε αριστη κατασταση
Τιμη 2250
Νικος
76972288374
Tannoy Turnberry HE .
the situation is perffect
Recommended amplifier power 30 - 180 Watts
Continuous power handling 110 Watts RMS
Frequency response 34Hz - 25kHz -6dB
Sensitivity 93dB (2.83 Volts @ 1 metre)
Nominal impedance 8 Ohms
DRIVE UNITS
Dual Concentric™ high frequency 33mm (1.30") aluminium alloy dome with Tulip Waveguide™
Dual Concentric™ low frequency 250mm (10.00") treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00”) edge wound voice coil
Dispersion 90 degrees conical
CROSSOVER
Frequency 1.3kHz
Type Bi-wired, hard wired passive, low loss 2nd order compensated LF, 1st order HF
Adjustment +/- 3dB over 1.3kHz to 25kHz shelving
CONSTRUCTION
Enclosure type Distributed Port
Volume 100L (3.5 cu.ft)
Dimensions 950 x 456 x 336mm
(37.50 x 18.00 x 13.25”)
Τιμη 2250
Νικος
76972288374
Tannoy Turnberry HE .
the situation is perffect
Recommended amplifier power 30 - 180 Watts
Continuous power handling 110 Watts RMS
Frequency response 34Hz - 25kHz -6dB
Sensitivity 93dB (2.83 Volts @ 1 metre)
Nominal impedance 8 Ohms
DRIVE UNITS
Dual Concentric™ high frequency 33mm (1.30") aluminium alloy dome with Tulip Waveguide™
Dual Concentric™ low frequency 250mm (10.00") treated paper pulp cone with HE twin roll fabric surround. 52mm (2.00”) edge wound voice coil
Dispersion 90 degrees conical
CROSSOVER
Frequency 1.3kHz
Type Bi-wired, hard wired passive, low loss 2nd order compensated LF, 1st order HF
Adjustment +/- 3dB over 1.3kHz to 25kHz shelving
CONSTRUCTION
Enclosure type Distributed Port
Volume 100L (3.5 cu.ft)
Dimensions 950 x 456 x 336mm
(37.50 x 18.00 x 13.25”)
