The TD 124 DD uses "a 12-pole ... direct drive motor"—the quote is from Thorens press materials. That direct-drive motor replaces the original's most distinctive feature: a drive mechanism that utilized both a belt and an idler wheel
"The purist design and basic construction are based on the original," Thorens's press materials state. "The ... aluminum chassis now rests on vibration-damping elastomer elements whose viscosity is identical to the original's rubber 'mushroom' isolators." Also included in the package is a handsome plinth made from black-painted wood and a new tonearm, the TP 124
Listening to jazz vinyl on the Prestige, Blue Note, and Savoy labels was like a night out listening to live jazz: hard-plucked acoustic bass, pungent horns, and those visceral drums and cymbals, which aroused my inner 15-year-old drummer, who first rattled rudiments in marching corps.
Favorite records became new events, communicated in lush tones and big yet finely wrought images. The TD 124 DD/SPU 124 pairing made music that unfurled from my O/96 speakers in big, bold strokes of color and hypertexture

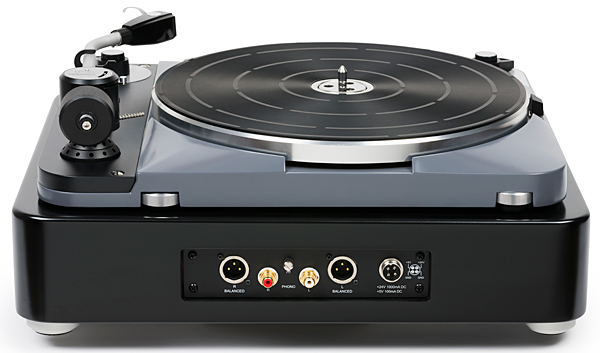

Description: TD 124 DD turntable: Direct drive AC motor. Speeds: 33 1/3, 45rpm. Wow and flutter: DIN/WRMS <0.04%. Platter material: aluminum. Platter weight: 7.7lb (3.5kg). Outputs: Balanced stereo (XLR) pair, unbalanced stereo (RCA) pair, ground connection.

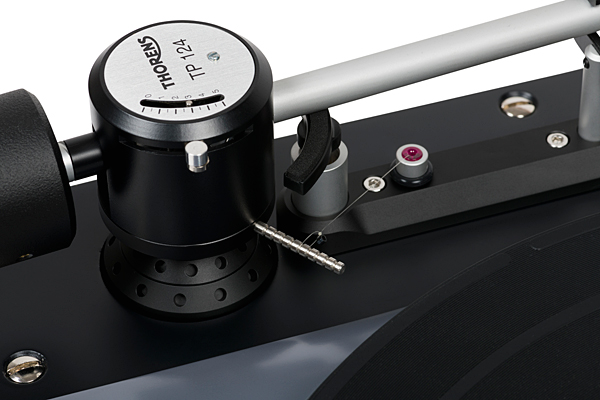

TP 124 tonearm: 9" tonearm with adjustable VTA and azimuth, antiskating with a ruby-mounted counterweight. Effective length: 9.17" (232.8mm). Offset angle: 23.66°. Overhang: 17.8mm. Effective mass: 15gm. Bayonet style headshell included.
SPU 124 MC cartridge (not included): Output voltage at 1000Hz, 5cm/s: 0.5mV. Channel balance at 1kHz, <1.5dB. Channel separation at 1kHz, >23dB; at 15kHz, >15dB. Frequency response: 20Hz–20kHz ±2dB. Tracking ability at 315Hz at recommended tracking force: >70µm. Compliance, dynamic, lateral: 8µm/mN. Stylus type: nude elliptical. Stylus tip radius: r/R 8/18µm. Tracking force range: 2.5–3.5gm. Tracking force, recommended: 3.0gm. Tracking angle: 20°. Internal impedance: 2 ohms. Recommended load impedance: 10–50 ohms. Weight: 30gm.
Dimensions: 16.7" (425mm) W × 13.8" (350mm) H × 7.3" (185mm) D. Weight (not including power supply): 37.5lb (17kg).
www.stereophile.com
www.thorens.com
"The purist design and basic construction are based on the original," Thorens's press materials state. "The ... aluminum chassis now rests on vibration-damping elastomer elements whose viscosity is identical to the original's rubber 'mushroom' isolators." Also included in the package is a handsome plinth made from black-painted wood and a new tonearm, the TP 124
Listening to jazz vinyl on the Prestige, Blue Note, and Savoy labels was like a night out listening to live jazz: hard-plucked acoustic bass, pungent horns, and those visceral drums and cymbals, which aroused my inner 15-year-old drummer, who first rattled rudiments in marching corps.
Favorite records became new events, communicated in lush tones and big yet finely wrought images. The TD 124 DD/SPU 124 pairing made music that unfurled from my O/96 speakers in big, bold strokes of color and hypertexture
Description: TD 124 DD turntable: Direct drive AC motor. Speeds: 33 1/3, 45rpm. Wow and flutter: DIN/WRMS <0.04%. Platter material: aluminum. Platter weight: 7.7lb (3.5kg). Outputs: Balanced stereo (XLR) pair, unbalanced stereo (RCA) pair, ground connection.
TP 124 tonearm: 9" tonearm with adjustable VTA and azimuth, antiskating with a ruby-mounted counterweight. Effective length: 9.17" (232.8mm). Offset angle: 23.66°. Overhang: 17.8mm. Effective mass: 15gm. Bayonet style headshell included.
SPU 124 MC cartridge (not included): Output voltage at 1000Hz, 5cm/s: 0.5mV. Channel balance at 1kHz, <1.5dB. Channel separation at 1kHz, >23dB; at 15kHz, >15dB. Frequency response: 20Hz–20kHz ±2dB. Tracking ability at 315Hz at recommended tracking force: >70µm. Compliance, dynamic, lateral: 8µm/mN. Stylus type: nude elliptical. Stylus tip radius: r/R 8/18µm. Tracking force range: 2.5–3.5gm. Tracking force, recommended: 3.0gm. Tracking angle: 20°. Internal impedance: 2 ohms. Recommended load impedance: 10–50 ohms. Weight: 30gm.
Dimensions: 16.7" (425mm) W × 13.8" (350mm) H × 7.3" (185mm) D. Weight (not including power supply): 37.5lb (17kg).

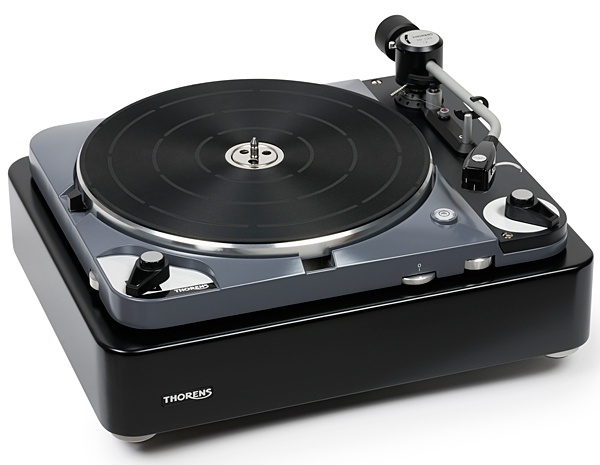

Thorens TD 124 DD Record Player
In 1957, Switzerland-based Thorens introduced the TD 124 turntable, a record player destined to become a classic. (TD is an initialism for tourne disque, French for turntable.)
