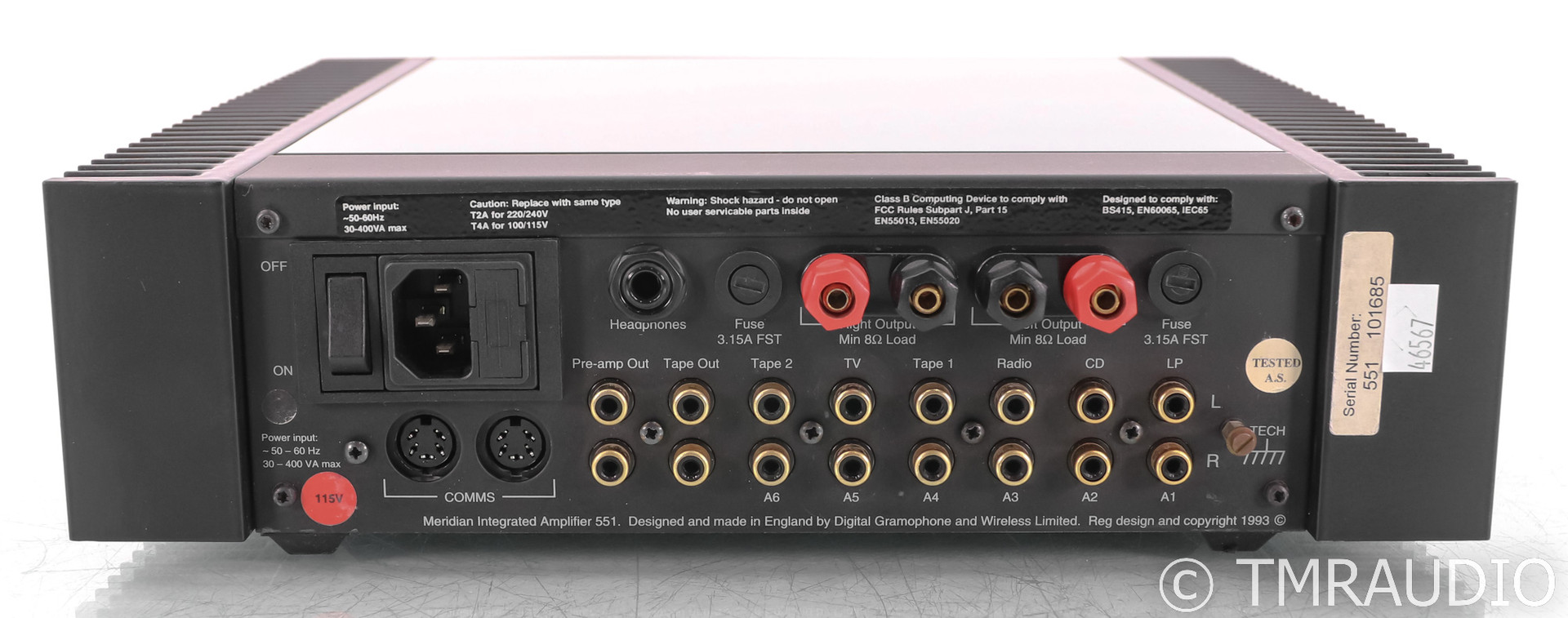

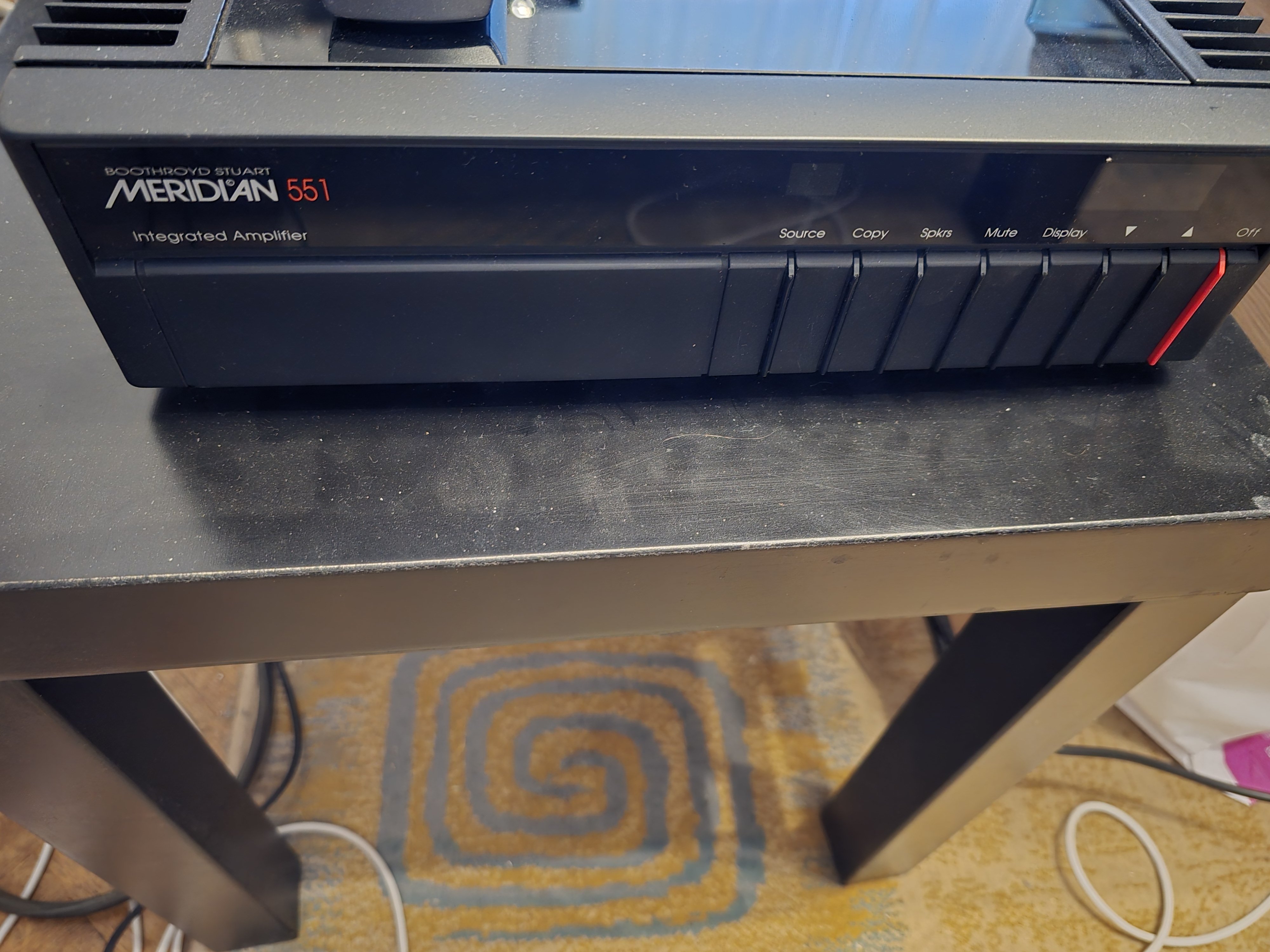

Πωλείται ο ανωτέρω ενισχυτής με το τηλεκοντρόλ του σε κατάσταση βιτρίνας στην τιμή των 580 ευρώ.
Χαρακτηριστικά
Specification and accessories
Specification
MM input option Sensitivity adjustable 0.5 – 3mV for
5cm/s @ 1kHz.
Overload point 47mV @ 1kHz.
Cartridge load 47kΩ || 100pF.
MC input option Sensitivity adjustable 38 – 210μV for
5cm/s @ 1kHz.
Cartridge load 220Ω || 10nF.
A2 – A6 inputs Sensitivity adjustable 27 – 150mV.
Input impedance 20kΩ.
Output 65W per channel into 8Ω.
100W per channel into 4Ω.
Tape output Output 1.5V.
Pre-amp output Output 1.4V rms, 3V rms maximum.
Headphone output 2V maximum.
Distortion Less than 0.05%.
Noise and hum Less than -90dB for high-level
analogue inputs.
Less than -70dB for MM input.
Less than -60dB for MC input.
Display Four character display for current
source, volume, mute, and copy
source.
Communications Two 5 pin 240° DIN sockets.
Finish Black textured enamel and glass.
Heatsinks black painted aluminium.
Dimensions 88mm x 321mm x 332mm
(3.46" x 12.64" x 13.07").
Weight 10kg (20lbs).
Consumption 30VA quiescent, 300VA max.
Meridian Audio reserves the right to amend product
specifications at any time
Επικοινωνία με pm ή στο e-mail: [email protected]
Παρακαλώ όχι παζάρια ή αντάλλαγες
