Πωλείται ο παραπάνω εξαιρετικός 6/ακακάναλος τελικός σε υπέροχη εμφανισιακή κατάσταση με πραγματικά λίγες ώρες λειτουργίας. Δίνεται στα 520e χωρίς ανταλλαγές και με δυνατότητα αποστολής.
Ακούγεται πραγματικά υπέροχα και αποδίδει τα πρώτα 30 watt σε τάξη Α. Είναι βαριά κατασκευή /24 κιλά περίπου και διαθέτει αρκετά ρεύματα για να οδηγήσει εύκολα οποιαδήποτε ηχεία.
Σε σύνδεση ως δικάναλος + Διπλοενίσχυση !! (bridged , 3+4, 5+6) αποδίδει 180 watt/ RMS ανά κανάλι στα 8 ohm / < 30 amps .
Tηλ. επικοιν. : 6934-440902
/

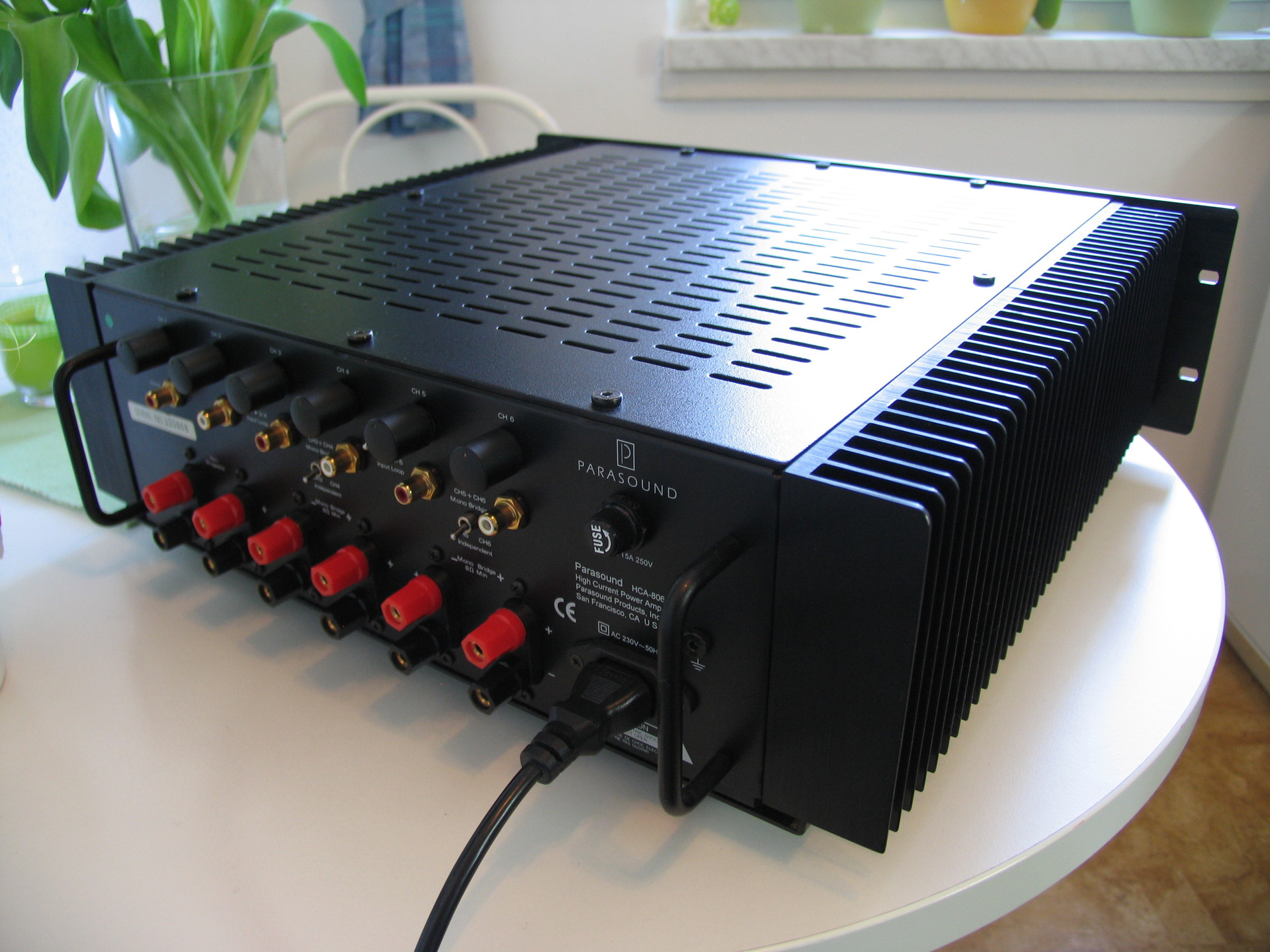

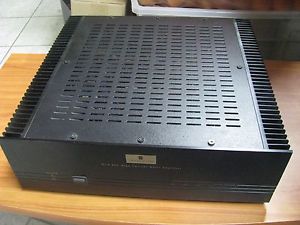

HCA-806A 6/5/4 MULTI CHANNEL AMPLIFIER.
Cascoded Class A input stages with matched JFET pairs, high-bias Class A/AB operation and hand-picked complementary transistors place this multi-channel power amplifier in a world class league. 80 watts per channel at 8 Ω, 120 watts at 4 Ω, 30 amps peak current per channel, Four bridgeable channels, each pair bridges to 240 watts, Input/looping switches for multi-zone stereo.
FEATURES
Ακούγεται πραγματικά υπέροχα και αποδίδει τα πρώτα 30 watt σε τάξη Α. Είναι βαριά κατασκευή /24 κιλά περίπου και διαθέτει αρκετά ρεύματα για να οδηγήσει εύκολα οποιαδήποτε ηχεία.
Σε σύνδεση ως δικάναλος + Διπλοενίσχυση !! (bridged , 3+4, 5+6) αποδίδει 180 watt/ RMS ανά κανάλι στα 8 ohm / < 30 amps .
Tηλ. επικοιν. : 6934-440902
/
HCA-806A 6/5/4 MULTI CHANNEL AMPLIFIER.
Cascoded Class A input stages with matched JFET pairs, high-bias Class A/AB operation and hand-picked complementary transistors place this multi-channel power amplifier in a world class league. 80 watts per channel at 8 Ω, 120 watts at 4 Ω, 30 amps peak current per channel, Four bridgeable channels, each pair bridges to 240 watts, Input/looping switches for multi-zone stereo.
FEATURES
- Massive 1.2 kVA Power Transformer
- 90,000 uF Computer-grade Capacitors in the Power Supply
- Multiple Polystyrene Film Bypass Capacitors in the Power Supply
- Cascode Class A Input Stages with Matched J-FET Pairs
- Hand Picked Complementary Transistors in High Voltage Driver Stages
- 24 50 MHz, 15 Ampere Output Transistors, Beta-Matched Complementary Pairs
- Can be powered with external DC source
- Output Transistors Direct-Coupled to Speakers Without LRC Networks
- Linear Tracking, Instantaneous Acting DC Servos
- High-Bias Class A/AB Operation
- Gold-Plated Metal Structure RCA Input Jacks
- Multiple Temperature Sensors and Silver-Cadmium Relay Protection
- FR-4 Glass Epoxy Circuit Boards, Double-Sided for Precision
- Proprietary Quick-Settling Bias Circuits Obviates Warm-Up Period
- Custom Designed Audiophile-Grade AC Power Cord
- Configurable for Multi-Channel Home Theater, Multi-Zone Stereo, Biamp or Triamp Operation
- Continuous Power Output
> 80 watts RMS x 6, 20 Hz - 20 kHz, 8 Ω, all channels driven
> 120 watts RMS x 6, 20 Hz - 20 kHz, 4 Ω, all channels driven - Continuous Power Output - Bridged
> 180 watts RMS, 20 Hz - 20 kHz, 8, each bridged channel, 3+4, 5+6 - Current Capacity
30 amperes peak, per channel - Slew Rate
> 130 V/µsecond - Frequency Response
20 Hz - 120 kHz, +O/-3 dB - Total Harmonic Distortion
< 0.05% at full power < 0.02% typical levels - lM Distortion
< 0.03% - TIM
Unmeasureable - Dynamic Headroom
> 2 dB - lnterchannel Crosstalk
> 75 dB at 1 kHz
> 55 dB at 20 kHz - Input Impedances
50k Ω per channel, without looping inputs 1/2 to Ch. 3/4 or Ch. 5/6
25k Ω per channel, if looping inputs 1/2 to either Ch. 3/4 or Ch. 5/6
17k Ω per channel, if looping inputs 1/2 to both Ch. 3/4 and Ch. 5/6 - Input Sensitivity
1.0 V - S/N Ratio
> 118 dB, input shorted, IHF A-weighted - Damping Factor
> 800 at 20 Hz - Dimensions
19" wide x 5 1/4 " high x 18.5 " deep (6 1/8 high with feet) - Weight
24 kg / 50 lbs. net
