Anthem announced the Statement M1 single rack unit Class D mono power amplifier offering sophisticated monitoring circuits that maintain proper frequency response, even when powering the heaviest speaker loads using a 120V line.
Engineered with advanced load monitoring and power factor correction technology to satisfy demands up to 2400 W, even when connected to a 120V/15A line. Anthem claims the M1 will win over skeptics who think Class D amplifiers aren't suitable for hi-end sound systems. The M1's frequency response is load-independent with the difference in response between a 2-ohm load and an open circuit is just 0.1 dB. Between 4 ohms and 8 ohms there is no change in frequency response at all.
The M1 is also a true "double-down" amplifier with 1000W into 8 ohms and 2000W into 4 ohms, with total harmonic distortion remaining under 0.1% from 20 Hz to 20 kHz. Class D amplifiers provide tremendous value over traditional amps because of their efficient output from a smaller form factor, and the M1 is no different. Occupying only a single rack unit, Anthem also outfitted the new Statement amplifier with a heat pipe cooling system that allows multiple M1s, with feet removed, to be rack-mounted directly on one another. Fanless and easy-to-integrate, the M1's design makes it a serious contender whether installed in the listening room or in an equipment closet.
Specifications:
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N
8 Ω 1000 W
4 Ω 2000 W
3 Ω 2400 W
2 Ω >2000 W depending on line voltage regulation
With 120V AC supply the amplifier's maximum output into impedances 4 Ω and lower, as well as its maximum duration, vary depending on line voltage regulation.

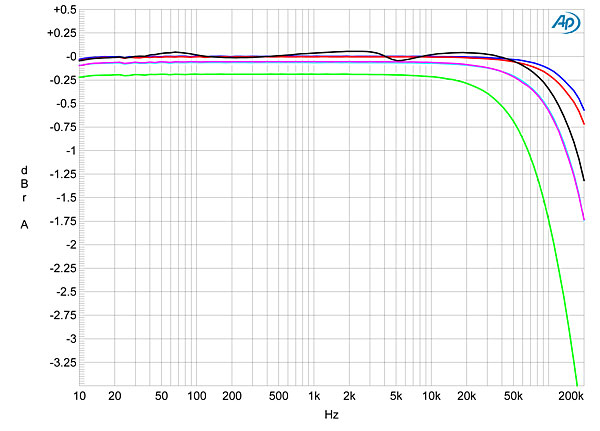

Frequency Response 20 Hz to 20 kHz
open circuit ±dB
8 Ω ±0.1 dB
4 Ω ±0.1 dB
2 Ω ±0.2 dB
Power Bandwidth 1000 W at 8 Ω 5 Hz to 45 kHz
THD+N at 1 kHz, 8 Ω
1 W = 0.01 %
10 W = 0.01 %
100 W < 0.03 %
1000 W < 0.06 %
IMD 19 kHz + 20 kHz, CCIF 0.003 %
Damping Factor 800 to 1400 depending on frequency
$7000 pr
Engineered with advanced load monitoring and power factor correction technology to satisfy demands up to 2400 W, even when connected to a 120V/15A line. Anthem claims the M1 will win over skeptics who think Class D amplifiers aren't suitable for hi-end sound systems. The M1's frequency response is load-independent with the difference in response between a 2-ohm load and an open circuit is just 0.1 dB. Between 4 ohms and 8 ohms there is no change in frequency response at all.
The M1 is also a true "double-down" amplifier with 1000W into 8 ohms and 2000W into 4 ohms, with total harmonic distortion remaining under 0.1% from 20 Hz to 20 kHz. Class D amplifiers provide tremendous value over traditional amps because of their efficient output from a smaller form factor, and the M1 is no different. Occupying only a single rack unit, Anthem also outfitted the new Statement amplifier with a heat pipe cooling system that allows multiple M1s, with feet removed, to be rack-mounted directly on one another. Fanless and easy-to-integrate, the M1's design makes it a serious contender whether installed in the listening room or in an equipment closet.
Specifications:
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N
8 Ω 1000 W
4 Ω 2000 W
3 Ω 2400 W
2 Ω >2000 W depending on line voltage regulation
With 120V AC supply the amplifier's maximum output into impedances 4 Ω and lower, as well as its maximum duration, vary depending on line voltage regulation.
Frequency Response 20 Hz to 20 kHz
open circuit ±dB
8 Ω ±0.1 dB
4 Ω ±0.1 dB
2 Ω ±0.2 dB
Power Bandwidth 1000 W at 8 Ω 5 Hz to 45 kHz
THD+N at 1 kHz, 8 Ω
1 W = 0.01 %
10 W = 0.01 %
100 W < 0.03 %
1000 W < 0.06 %
IMD 19 kHz + 20 kHz, CCIF 0.003 %
Damping Factor 800 to 1400 depending on frequency
$7000 pr
