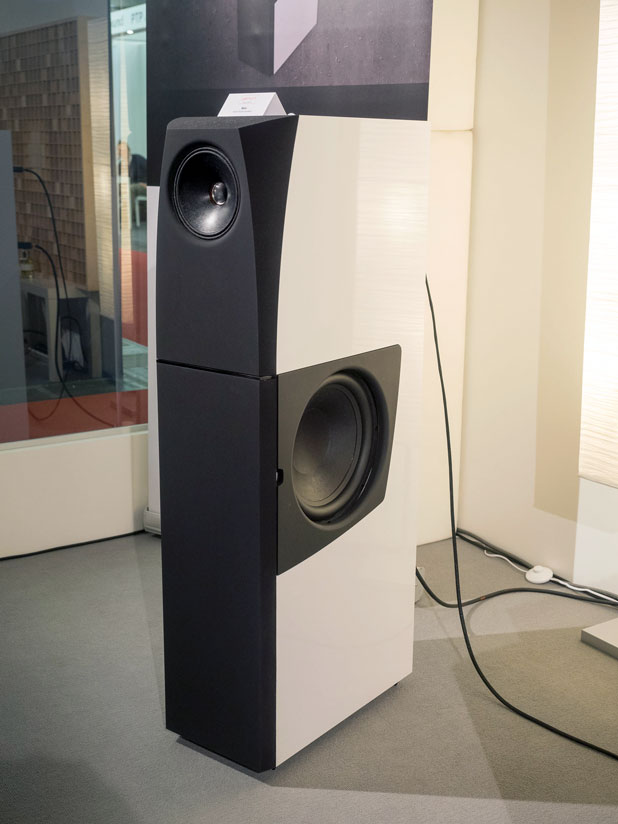

Neo
The heart of the fully active 3-way speaker is a digital signal processor. The 32-bit DSP not only replaces a passive crossover and allocates woofer, midrange and tweeter to their respective operating range but the entire speaker system is perfectly in tune with its time coherence and frequency response. In addition to an IIR filtering, notably the technology of performance-data-based linear-phase FIR filtering is used, which Neo’s renowned developer team has successively optimized since the 80s.
Every single chassis is tested, and based on these individual test results, tailored programming is carried out for perfect signal processing. In this way, the temporal behavior of the overall system can be so designed that the propagation speed of all frequency components in the music signal is constant. This time-coherence is an essential feature to achieve genuin audio’s central goal of a convincingly authentic music reproduction.
Balanced radiation characteristics
The horizontal dispersion relative to the central axis is uniform across a large frequency range. Through the corresponding digitally filtered coaxial chassis, the genuine audio neo reaches approx. 90 ° beam width without jumps in any spatial direction.
The frontally positioned coaxial loudspeaker on neo is supplemented by a laterally mounted woofer, which operates below 180 Hz and whose frequency response reaches down to 27 Hz (-6 dB). This very long excursion 30-cm bass chassis with extra large voice coil provides for Neo’s physically powerful bass and creates the basis for an uncompromising “full-range” music experience.
At the same time, the mighty woofer relieves the coaxial speaker of the demanding task of bass processing and allows it to focus on its core competence: the authentic presentation of space, detail and homogeneity.
Neutral sound in every environment
Basically, the genuin neo is absolutely neutral in frequency response – under optimal listening conditions. Since such an ideal is very rare among ordinary living situations, the control software of the loudspeaker offers complex solutions for spatial correction. Therefore, even in acoustically unprepared rooms, perfect listening experience can be realised.
The genuine neo comes with three presets, which can be selected on the rear touch panel and cover common scenarios: neutral, wall position and hi-fi. For further adaptation to individual room conditions, genuin audio offers an on-site service where a trained acoustician optimizes the speaker to the respective listening situation.
Ava
Focused energy
The “Bookshelf” version of the revolutionary floor-standing loudspeaker neo by genuin audio. This compact DSP-controlled active box is based on the same principles, but more suitable for smaller spaces or interior designs where a high-end loudspeaker should appear less dominant.
Like neo, ava has a quality level which conventional passive systems can no longer reach. Using complex digital signal processing, the built-in chassis are permanently monitored and accurately driven for them to interact optimally. That way, ava achieves brilliantly the central goal of all genuin audio components with a cabinet half the size of that for neo: a genuinely dynamic, transparent and natural music reproduction.
The heart of this fully active 3-way speaker beats digitally. A 32-bit digital processor handles all control tasks. It assigns the woofer, midrange and tweeter their respective work and makes an analogue crossover obsolete. In addition, the DSP tunes the entire speaker system perfectly in terms of its time and frequency response.
In addition to IIR filtering, there is linear-phase FIR filtering. This specific technology has been gradually perfected by the renowned ava development team since the eighties. Each individual chassis is tested for FIR filtering. Based on these individual results, tailored programming will be carried out in the DSP. This process leads to the perfect signal processing of the specific speaker. The temporal behavior of the overall system can therefore be designed with the aim of keeping the propagation speed of all frequency components in the music signal constant. The time-coherence achieved is crucial for a convincingly authentic music reproduction.
The coaxial speaker at the front is accompanied by a side-mounted woofer. This very long-excursion 200 mm bass driver with extra-large voice coil acoustically couples below 170 hertz and frees the coax from the demanding bass processing. This allows it to focus on its core tasks in the mid / high range: building a wide stage and presenting the smallest details – always ensuring a comprehensive homogeneity.
Despite the compact cabinet format of the box, the digitally controlled woofer plays as low as 33 Hz (-6 dB) and thus almost reaches the level of the much larger floor-standing speaker neo. Even though ava is only half as voluminous in appearance, the musical experience remains excellent in every respect.
https://www.genuin-audio.de/en/produkte/neo/
https://www.genuin-audio.de/en/produkte/ava/
The heart of the fully active 3-way speaker is a digital signal processor. The 32-bit DSP not only replaces a passive crossover and allocates woofer, midrange and tweeter to their respective operating range but the entire speaker system is perfectly in tune with its time coherence and frequency response. In addition to an IIR filtering, notably the technology of performance-data-based linear-phase FIR filtering is used, which Neo’s renowned developer team has successively optimized since the 80s.
Every single chassis is tested, and based on these individual test results, tailored programming is carried out for perfect signal processing. In this way, the temporal behavior of the overall system can be so designed that the propagation speed of all frequency components in the music signal is constant. This time-coherence is an essential feature to achieve genuin audio’s central goal of a convincingly authentic music reproduction.
Balanced radiation characteristics
The horizontal dispersion relative to the central axis is uniform across a large frequency range. Through the corresponding digitally filtered coaxial chassis, the genuine audio neo reaches approx. 90 ° beam width without jumps in any spatial direction.
The frontally positioned coaxial loudspeaker on neo is supplemented by a laterally mounted woofer, which operates below 180 Hz and whose frequency response reaches down to 27 Hz (-6 dB). This very long excursion 30-cm bass chassis with extra large voice coil provides for Neo’s physically powerful bass and creates the basis for an uncompromising “full-range” music experience.
At the same time, the mighty woofer relieves the coaxial speaker of the demanding task of bass processing and allows it to focus on its core competence: the authentic presentation of space, detail and homogeneity.
Neutral sound in every environment
Basically, the genuin neo is absolutely neutral in frequency response – under optimal listening conditions. Since such an ideal is very rare among ordinary living situations, the control software of the loudspeaker offers complex solutions for spatial correction. Therefore, even in acoustically unprepared rooms, perfect listening experience can be realised.
The genuine neo comes with three presets, which can be selected on the rear touch panel and cover common scenarios: neutral, wall position and hi-fi. For further adaptation to individual room conditions, genuin audio offers an on-site service where a trained acoustician optimizes the speaker to the respective listening situation.
Ava
Focused energy
The “Bookshelf” version of the revolutionary floor-standing loudspeaker neo by genuin audio. This compact DSP-controlled active box is based on the same principles, but more suitable for smaller spaces or interior designs where a high-end loudspeaker should appear less dominant.
Like neo, ava has a quality level which conventional passive systems can no longer reach. Using complex digital signal processing, the built-in chassis are permanently monitored and accurately driven for them to interact optimally. That way, ava achieves brilliantly the central goal of all genuin audio components with a cabinet half the size of that for neo: a genuinely dynamic, transparent and natural music reproduction.
The heart of this fully active 3-way speaker beats digitally. A 32-bit digital processor handles all control tasks. It assigns the woofer, midrange and tweeter their respective work and makes an analogue crossover obsolete. In addition, the DSP tunes the entire speaker system perfectly in terms of its time and frequency response.
In addition to IIR filtering, there is linear-phase FIR filtering. This specific technology has been gradually perfected by the renowned ava development team since the eighties. Each individual chassis is tested for FIR filtering. Based on these individual results, tailored programming will be carried out in the DSP. This process leads to the perfect signal processing of the specific speaker. The temporal behavior of the overall system can therefore be designed with the aim of keeping the propagation speed of all frequency components in the music signal constant. The time-coherence achieved is crucial for a convincingly authentic music reproduction.
The coaxial speaker at the front is accompanied by a side-mounted woofer. This very long-excursion 200 mm bass driver with extra-large voice coil acoustically couples below 170 hertz and frees the coax from the demanding bass processing. This allows it to focus on its core tasks in the mid / high range: building a wide stage and presenting the smallest details – always ensuring a comprehensive homogeneity.
Despite the compact cabinet format of the box, the digitally controlled woofer plays as low as 33 Hz (-6 dB) and thus almost reaches the level of the much larger floor-standing speaker neo. Even though ava is only half as voluminous in appearance, the musical experience remains excellent in every respect.
https://www.genuin-audio.de/en/produkte/neo/
https://www.genuin-audio.de/en/produkte/ava/
