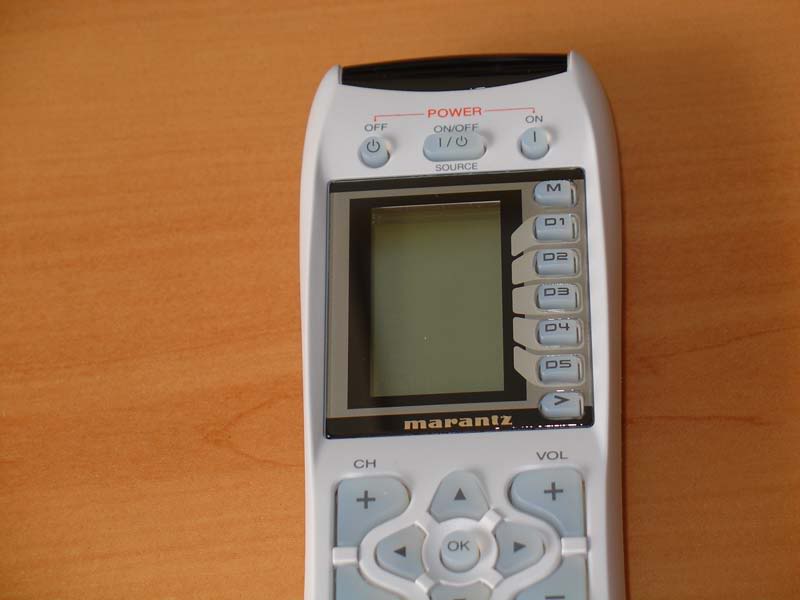

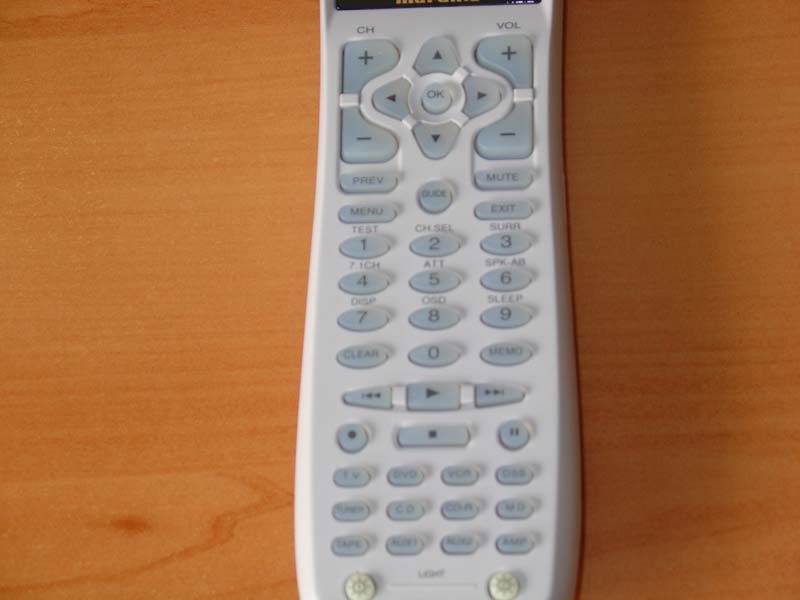

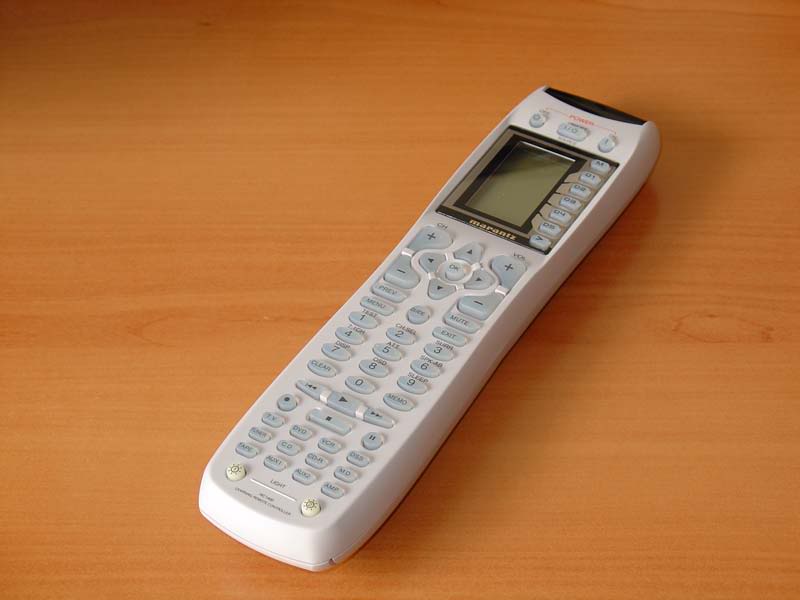

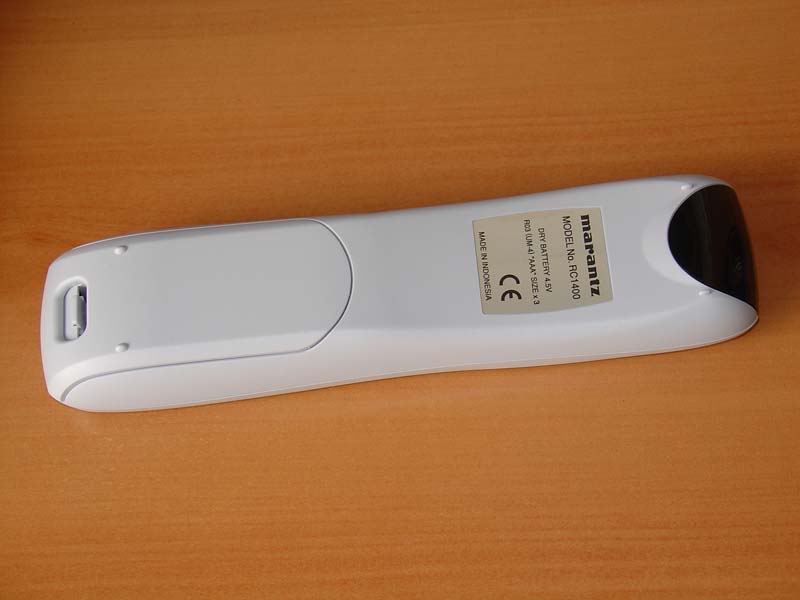

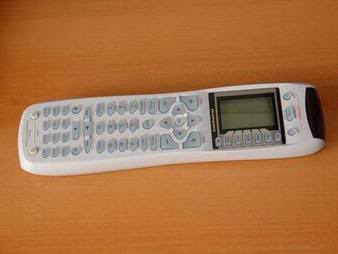

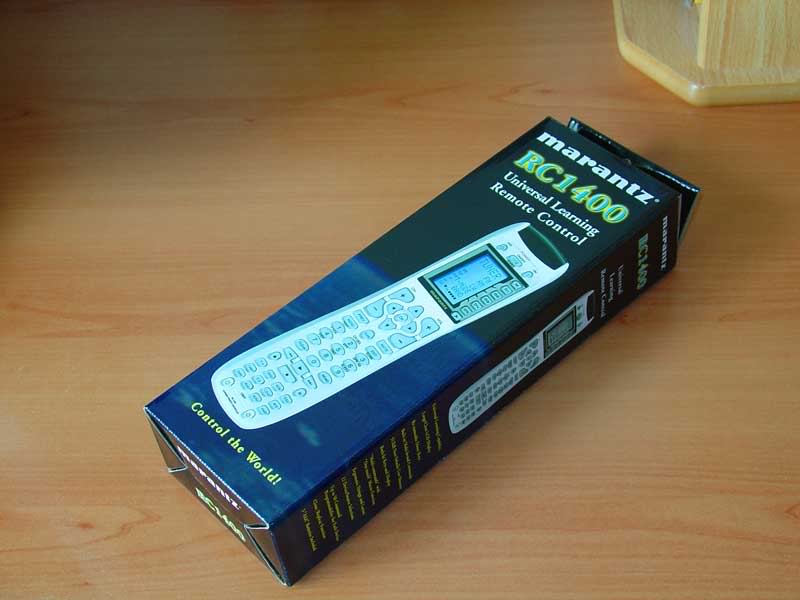

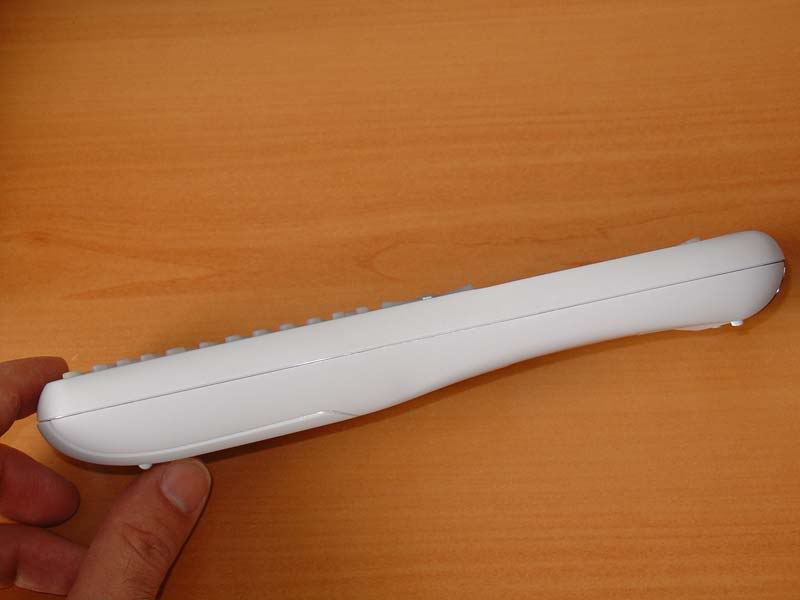

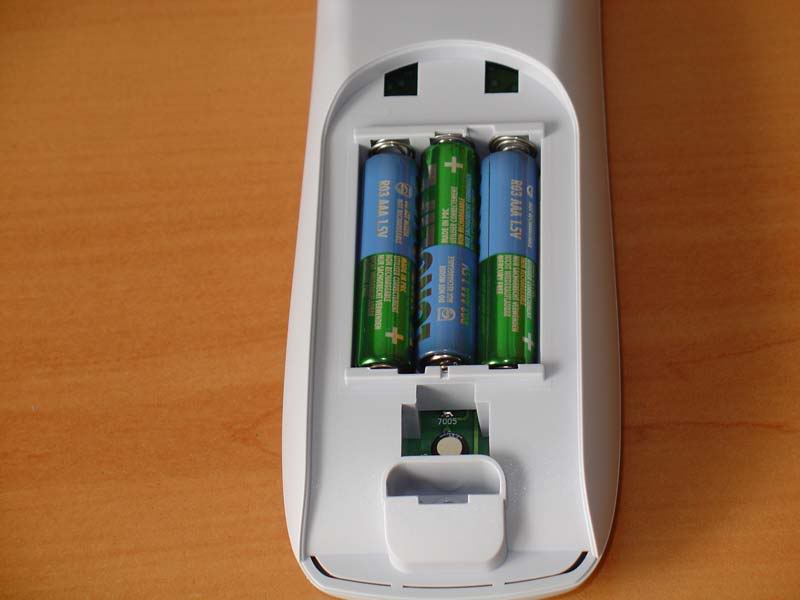

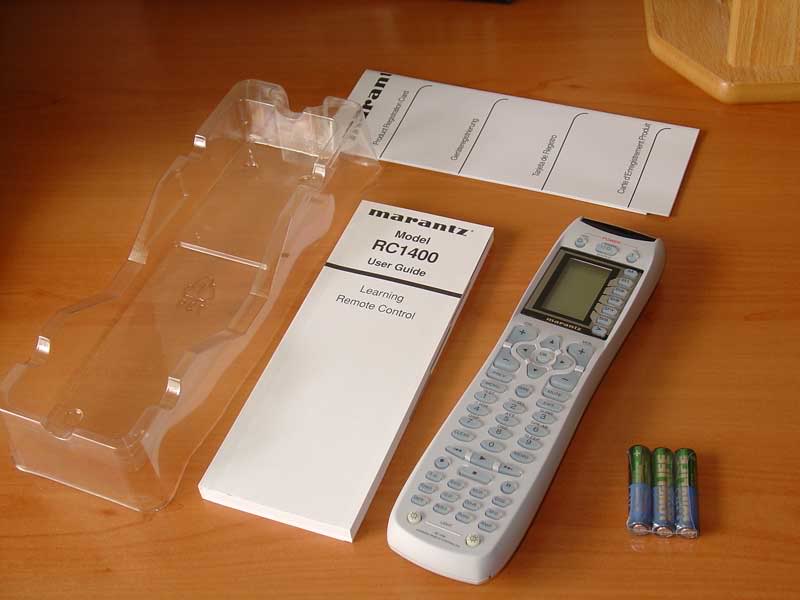

Χτες πήγα και παρέλαβα το δώρο που κέρδισα από την εκδήλωση που οργανώνει το AVSite αυτή την εβδομάδα.Όλα έγιναν ύστερα από συνενώηση που είχα πρώτα με τον Ανδρέα και μετά με τον υπεύθυνο στην Adamco κ. Βαγγέλη Σκανδάλη.Μέσα από εδώ θα ήθελα λοιπον να ευχαριστήσω τον Ανδρέα και όλη την ομάδα του AVSite που συνέβαλαν γι αυτή την διοργάνωση και την εταιρία Adanmco για την προσφορά του δώρου.Παίρνοντας το δώρο στα χέρια μου αποφάσισα να του κάνω μια μίνι παρουσίαση που ακολουθεί παρακάτω :
Τα τεχνικά χαρακτηριστηκά του είναι :
Τα τεχνικά χαρακτηριστηκά του είναι :
Και οι δυνατότητες :Transmission IR/RF/2w-IR/2w-RF •/-/-/-
Learnable: IR/RF •/-
Pre-Programmed (RC-5) •
Pre-Programmed (Other than RC-5) •
Screen Type: Touch / Display -/•
Direct Access Buttons 54
Programmable Direct Access Buttons 52
Display: Color / BW -/•
Contrast Control -
Backlight Screen: white/blue/green -/•/-
Backlight Hard Buttons: blue/green •/-
File Type -
PC Editing Program -
PC Software Compatibility -
Setup Protection -
Macros •
PC Connection: Serial / USB -/-
Non-Volatile Flash Memory •
Clock •
Timer •
Motion Sensor -
Light Sensor -
Universal DB -
SPECIFICATIONS
LCD Screen Size (W x H) 24x40.5 mm
Editable Screen Area -
Resolution 5x7dot, 5digit x 1 line
Colors -
Greyscale Levels 1
Flash Memory Size 512kB
SRAM Memory Size -
IR Operating Distance 8 m
IR Angle 160°
IR Carrier frequency 14KHz - 70KHz
Learning Distance 3-10 cm
Learning Angle 15°
RF Operating Distance (Open Air) -
RF Carrier Frequency -
2w-IR Operating Distance -
Number of Commands per Macro 20
Battery Life (normal use) 6 m
Operating Temperature 5-45° C
GENERAL
Color Light silver
Dimensions (W x H x L) 57x224x30 mm
Weight (With Batteries) 200 g
■ LCD display read out
■ Programmable keys
■ Macro function keys
■ EL back light
■ Rename function
■ Clone function
■ Clock and timer function
■ Complete and userfriendly control feedback using LCD
readout
■ Entire system control by assigning IR commands from any
device, into one learnable remote
■ Multiple IR commands activated with one key for maximum
ease of use
■ Easy read out and operation, even in the dark
■ Conveniently change and personalize the screen button labels
■ Transfer all the IR codes and macros from a fully
programmed RC1400, to prevent repetitive programming or
to make a back-up remote
■ Let the remote operate your home environment every day
again with user friendly convenience
