MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

Μηνύματα
2.868
Reaction score
250
Απάντηση: MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

Για να δούμε τι λέει ο κατασκευαστής :


The transformer is housed in a Mu-metal shielding can that measures


60.25mm (23/8in) in diameter x 72mm (213/16in) in height, excluding the


connecting leads. No inbuilt mounting hardware or mounting provisions are


included, due the substantial size and weight of the transformer which


would make the conventional methode unreliable.




The input and output connections are made via silver coated 0.6mm dia.


(22gauge) copper wire. The transformer has the primary winding split into


two identical, separately accessible sections.





The secondary (output) winding offers a number of taps allowing the


following attenuation values:


0 db, 3 db, 6 db, 8 db, 10 db, 12 db, 14 db, 16 db, 18 db, 20 db, 22 db, 24


db, 26 db, 28 db, 30 db, 32 db, 34 db, 40 db, 46 db


With these values the steps by which the volume is changed over the


majority of the range is smaller than the commonly acknowledged limit of


audibility (3db), giving a sufficiently fine control over the volume, when


compared to continuous controls. Obviously, any attenuation is reliably


repeatable.





The full primary (split primaries in series) has around 200 Ohm DC Winding


resistance. The same applies for the secondary winding. The primary


inductive reactance at 20 Hz is in excess of 50 kOhm (400 H Primary


Inductance) and thus provides an input impedance of more than 50 kOhm


across the audio band if the secondary loading is infinite.





If the split primary sections are wired for 6db voltage step-up with both


sections in parallel, the input impedance is 12.5kOhm or higher across the


whole audio band. In the case of the split primaries in parallel a 6db voltage


step-up is obtained for the no attenuation output tap, at the cost of lower


input impedance. So to speak a passive Voltage gain of 6db is obtained.


This is especially useful with power amplifiers having a minimal number of


stages and thus lowers gain than common.


An example may be a 2-Stage Single Ended Valve Amplifier using Western


Electric 437A or Reflektor 6S45PE Valves in the input stage and 45/2A3 or


300B DHT as output valves. Such an Amplifier often has a gain of only 16 –


18db and requires around 1.5V RMS for full power. Depending upon the


source and recording the added 6db Voltage gain may make the difference


between subjectively satisfying volume levels in such a system or requiring


more gain.


Μηνύματα
2.868
Reaction score
250
Απάντηση: MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

Connection considerations

The transformer has distinctly separate primary and secondary windings allowing full galvanic insulation between the input and output circuit. The fully symmetrical primary winding structure allows the connection of the primary in balanced or unbalanced mode and with either normal or inverting polarity regardless of the output connection..





The secondary can be operated in floating balanced mode or in single ended connection. In the case of the floating balanced connection the common connection for the secondary should be connected to the cold (pin 3 on XLR connectors for European standard) connection, as this would be bridged to ground (pin 1 on XLR connectors) with balanced to unbalanced converters or unbalanced gear with XLR inputs. The output from the switch that selects the various taps is connected to the hot (pin 3 on XLR connectors for European standard) connection for balanced systems. For unbalanced (RCA) outputs the secondary common connection connects to ground (ring of RCA connector) with the switch output (signal) connected to the tip of the RCA connector.





The Electrostatic screen should be connected to the output Ground. For balanced connections this is Pin 1 on XLR connectors, for RCA Outputs the Ring of connector. If RCA and XLR outputs are fitted to a device containing the transformer only one set of connectors should normally be used and a switch is required to connect the XLR connectors pin 1 to the ring of the RCA jack if the RCA output is in use.





Depending upon specifics of the design of the sources it may be desirable to connect the ground from the source to the electrostatic screen and output ground to avoid common mode induced hum. The transformer has a quite large degree of common mode rejection, but if for example a VCR has it's ground at around 100V AC at high impedance and it is not referenced to the electrostatic screen, the whole 100V AC forms the common mode voltage. Even with a high 70db common mode rejection ratio this common mode noise level on the input will lead to around 30mV Hum on the output, clearly by far too much. Thus such floating chassis design consumer devices require a "hard" connection to the electrostatic screen and output to ensure the common mode noise is minimised.


Μηνύματα
2.868
Reaction score
250
Απάντηση: MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

Συνοψίζοντας έχουμε :







Χρησιμοποιεί μετασχηματιστές πολλαπλών λήψεων για τον έλεγχο της


στάθμης . Για αυτό έχει το πλεονέκτημα της γαλβανικής απομόνωσης.


Ετσι απομονώνεται η πηγή από το φορτίο (ενισχυτής) και αποφεύγονται



οι βρόχοι γείωσης .








Στην περίπτωση του προενισχυτή μας αυτό συνεπάγεται την δυνατότητα



πλήρους απόζευξης (από την γείωση του συστήματος ) και της πηγής



και του φορτίου.



Σε ένα ιδανικό σύστημα αυτό προσφέρει την ιδανική λύση.



Αλλά το σύστημα ενίοτε απέχει από το ιδανικό (όσον αφορά στις



γειώσεις ). Επειδή όλα τα συστήματα συνεπώς διαφέρουν προσφέρεται



ένας διακόπτης επιλογής μεθόδου γείωσης.



Αυτός διαθέτει τρεις επιλογές!












Οι πρώτες 5 είσοδοι συνδέονται με την εσωτερική γείωση αναφοράς



του προενισχυτή (η οποία με την σειρά της συνδέεται στο κουτί του)



μέσω αντίστασης 51 Ω ("μαλακή" γείωση). Αυτό συμβαίνει για να




διοχετεύεται ο στατικός ηλεκτρισμός στην γείωση των πηγών




(cd,tuner ).Αυτός είναι υπεύθυνος για τα κλικ-ποπ κατά την




επιλογή των πηγών.Η είσοδος F συνδέεται κατευθείαν με το κουτί


("σκληρή" γείωση ) για χρήση πηγών με ιδιαίτερο θόρυβο (ψηφιακοί


δέκτες κ.λ.π.)









Ο διακόπτης επιλογής γείωσης είπαμε ότι έχει τρείς θέσεις!



Αυτός επιλέγει πως θα γειωθεί ή έξοδος του προενισχυτή (προς τον



τελικό) . Στο lift η γείωση εξόδου είναι τελείως απομονωμένη .



To pin 1 της εξόδου xlr συνδέεται με την εσωτερική γείωση αναφοράς



του προενισχυτή και στο RCA το εξωτερικό περίβλημα του βύσματος



εξόδου συνδέεται με την εσωτερική γείωση αναφοράς .Αυτή



η θέσει γειώνει το pin3 του XLR εξόδου.







Ο χρήστης πρέπει να δοκιμάσει την "απομονωμένη" γείωση και εάν



δεν υπάρχουν θόρυβοι να μείνει εκεί.



Εάν όμως υπάρχουν θόρυβοι τότε πρέπει να δοκιμάσει και επιλέξει την θέση



εκείνη που η γείωση εισόδου και εξόδου ταυτίζονται .







Ο κλωβός των μετασχηματιστών και το αλουμινένιο κουτί προστατεύει




απο τις ανεπιθύμητες RF συχνότητες ! ( κάθε κέλυφός του



μετασχηματιστή είναι πλήρες απο κηρώδες υλικό που


περιβάλλει-εμποτίζει τον μετασχηματιστή!







Μηνύματα
2.868
Reaction score
250
Απάντηση: Re: MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

Eρώτηση: Εξ όσον γνωρίζω (καθώς ο εν λόγω προ φιγουράρει ήδη αρκετούς μήνες στον ξένο τύπο όπου και έχει δεχθεί πολύ θετικές κριτικές...) βγαίνει σε δυο διαφορετικές βερσιόν όπου η διαφορά αφορά στην εσωτερική καλωδίωση. Η μία εκδοχή έχει χάλκινα και η άλλη ασημένια καλωδίωση και η τιμή της πρώτης εκδοχής είναι περίπου κατα 2/3 φθηνότερη από την δεύτερη. Εσείς ποια βερσιόν παρουσιάζετε?

Δεν είμαι απόλυτα σίγουρος (τελευταία δεν έχω πολύ χρόνο για διάβασμα) αλλά τόσο στο thread όσο και στην πρόσφατη παρουσίαση στο high fidelity δεν υπάρχει αναφορά σχετικά. Μπορείτε να μας διαφωτίσετε κάποια στιγμή, αρχικά σε ακαδημαικό επίπεδο αλλά και σε πρακτικό (σε περίπτωση που η εταιρία σας παρέχει και την άλλη βερσιόν για δοκιμή?)

Αγαπητέ Φίλε η έκδοση που δοκίμασα εγώ είναι

με την "χάλκινη" καλωδίωση.

Μου υποσχέθηκε όμως ο Αντιπρόσωπος ότι μόλις παραλάβει

την έκδοση με την "ασημένια" καλωδίωση θα μου την

δώσει για δοκιμή !



Κώστας Φ.

Truth hurts. Here's a teddy bear.
Μηνύματα
8.978
Reaction score
894
Απάντηση: MUSIC FIRST AUDIO PASSIVE MAGNETIC PREAMPLIFIER

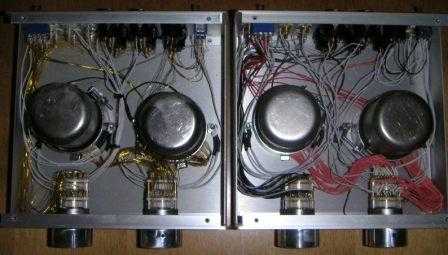

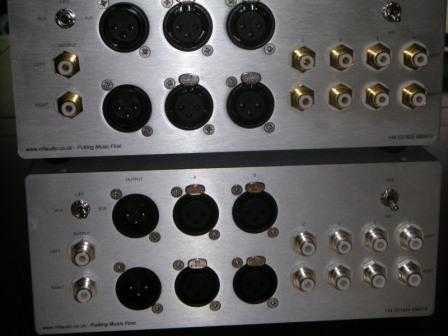

Mία συγκριτική δοκιμή των δύο εκδόσεων από το TNT-Audio: Click


"I am very impressed by both of these pre amps. Either represents a very worthwhile step towards hi-fidelity musical reproduction in the home. That the silver version offers performance improvements over the copper version is clear. Perhaps less clear is whether you consider these benefits to be worth the extra cost.From my perspective I thoroughly enjoyed my time with the silver wired amp. It is superior to the copper version in many respects but those silver wires come at a cost and herein lies my dilemma. Is the performance increase worth an additional £1000 for those silver wires? Ultimately I decided that it wasn't and will be sticking with my copper wired version.

If however, you own a more esoteric system than mine, or want to prise the very last ounce of performance from your set up, then you must evaluate the silver amp in your system. At the end of the day you pay your money and make your choice."
