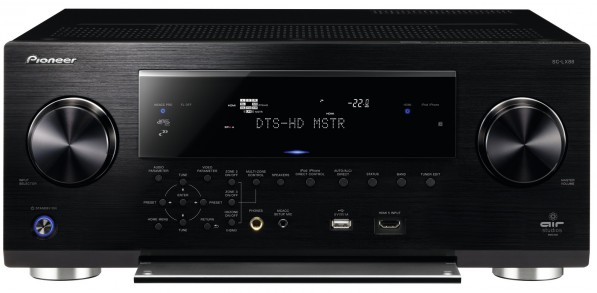

Pioneer SC-LX88

Μηνύματα
21.685
Reaction score
14.973





9.2 amplifier, EQ Sub 4 bands , HDMI 2.0, USB-B, Bluetooth

Specifications of Pioneer SC-LX88:



    • Amplifier audio / video 9.2
    • Class D amplification: 9 x 220 Watts / 6 Ohms
    • Decoders: DTS-HD MA, TrueHD, Pro Logic IIz, WMA Pro, DTS Neo: X, Dolby Atmos, Air Studios
    • 8 HDMI inputs including 3 HDMI 2.0 (Deep Color, 4K and 3D passthrough, CEC, xvColor, MHL 2.0 HDCDP 1.1et HTC Connect)
    • 3 HDMI 2.0 inputs handle the 2160p at 24, 25 and 30 im / s 4:4:4 / 36-bit 2160p 50 and 60 im / s and 24 bit 4:4:4.
    • 5 other inputs HDMI 1.4 2160p manage the 24, 25 and 30 im / s 4:2:0 and 24-bit
    • 3 HDMI outputs, one HDMI 2.0 (ARC, Deep Color, 4K and 3D passthrough, CEC, xvColor, MHL 2.0 and HDCP 1.1)
    • 1 HDMI Output Zone 4
    • No MHL 3.0 n, or HDCP 2.2
    • Marvell Qdeo video processor: 1080p upscaling and 4K filters improvements configurable picture (sharpness, noise reduction, improvements in video streaming))
    • Asynchronous USB-B compliant DSD256 and PCM 192/32
    • HDMI SACD: Transfer Multichannel DSD 5.1 (but only native filter the DSD stereo, SA-CD and 5.1 are converted to PCM)
    • Texas Instruments Aureus DSP (15 DSP Mode 1 + speaker Wide)
    • ESS Sabre DAC 2 x ES9016 to handle 11 channels (9.2)
    • Hi-Bit Sampling at 192 khz and 32-bit, Auto Sound Retriever for TV (ARC), Auto Phase Control +
    • PQLS Bit-stream/Multi-Surround/2ch
    • Controllable via iPhone / iPad / Smartphones & Tablets Android (ControlApp & iControlAV 2013)
    • Apple AirPlay & HTC Media Link - iTunes Album Art
    • Bluetooth aptX integrated and compatible AirJam via Bluetooth
    • Wi-Fi dongle comes with the amp
    • The front panel features a USB port with the ability to connect the iPad, iPhone, but Android smartphones and tablets and a (composite video and stereo RCA) AUX input
    • Network support (UPnP & DLNA): Internet radio, DLNA, AirPlay, Spotify, playing audio file streaming, Windows 8 certified
    • USB & UPnP: LPCM, MP3, WAV, AAC, WMA Lossless, Apple Lossless, FLAC 192/24, and DSD64 DSD128 (DSF DSDIFF); FLAC and WAV 5.1
    • AV Navigator: Wizard (setup) Interactive on PC or iPad
    • Advanced MCACC room correction, 9-band EQ, 6 MCACC memories, X-Curve, Symmetric EQ, Standing Wave Control
    • Subwoofer EQ with 4-band EQ and independent management of the two channels of subwoofers
    • Configurations possible speakers (11 pairs of terminals): Surround Back / Front Height / Front Wide / Front Bi-Amp / Surround High / Zone 2 / B-Speaker
    • OSD graphic Color
    • 7.1 RCA input
    • Two outputs for PREOUT Sub, PREOUT 9.2 (11.2 hp terminals), asynchronous USB-B, 2 USB port
    • Zone 2 & 3, Zone 2 Subwoofer Out, Zone 2 Preout Vol / Bal / Tone Control
    • Gold-plated connectors, copper screws, reinforced chassis, internal shocks
    • Dimensions (W x H x D): 435 x 185 x 441 mm
    • Weight: 18.1 kg

Last edited by a moderator:


gkontoletas

trouble in my brain
Μηνύματα
16.841
Reaction score
2.191
καλός είναι, αλλά αυτός ο αχταρμάς με τις θύρες HDMI προκαλεί αρνητική εντύπωση....
πολύ θα 'θελα να έβλεπα μια DP 1.2/1.3...


Zizik

Gardener
Moderator
Μηνύματα
39.296
Reaction score
62.073
Δεν πρόκειται να δεις DP.-

Αν και είναι μεταβατικό προϊόν, είναι φανταστικό και για πολλά χρόνια.





Μηνύματα
21.685
Reaction score
14.973
και ο δικο σου μαρη θα παρει αναβαθμιση σε atmo .....
....μην μου στεναχωριεσαι... ;)


vlasis

Φωτογράφος!
Μηνύματα
11.330
Reaction score
5.801
και ο δικο σου μαρη θα παρει αναβαθμιση σε atmo .....
....μην μου στεναχωριεσαι... ;)
εκανε καμια αναφορα στο θεμα η Πιονερρρρρρ.......και ειναι σιγουρο οτι τα τσιπακια που φοραει ο 85 θα μπορουν να παιξουν ΑτμοDolby???????:D:D




Μηνύματα
21.685
Reaction score
14.973
λογικα οσοι av ειναι 9.1 και πανω μπορουν να αναβαθμιστουν.....

αλλα ιδωμεν......:)




vlasis

Φωτογράφος!
Μηνύματα
11.330
Reaction score
5.801
βρε ice σιχτηρ λεω εγω με εσας που εχω μπλεξει......:fuckyou::fuckyou::roflmao:



vlasis

Φωτογράφος!
Μηνύματα
11.330
Reaction score
5.801
με νεο
MCACC Pro.....


Now, MCACC® (Multi-Channel Acoustic Calibration) is taken to a new level of performance with MCACC Pro. Designed by Pioneer for the Atmos-enabled Elite system, MCACC Pro calibrates sound output using a microphone to monitor the sound environment and an equalizer to optimize and precision-tune each speaker to the room. How advanced is MCACC Pro? So advanced that Pioneer engineers have included dual independent subwoofer outputs, each with individual EQ. Tailoring left- and right-channel low frequency response curves lets you achieve optimum subwoofer performance based on specific room placement, creating powerful bass response and seamless integration with your main speaker system. With the push of a button, it’s like having a professional acoustical engineer fine-tune your home theater system.

και φυσικα αυτο...........
Get the Big Picture with Qdeo® Video Processing
Experience an exceptional, virtually noise-free picture regardless of the source. Qdeo video processing technology by Marvell and a 4K Scaler allows you to upscale any video source for improved picture quality and compatibility with next generation TVs, and makes Blu-ray Disc and DVD content look more detailed and cinematic than ever before.

http://www.marvell.com/digital-entertainment/qdeo/


vlasis

Φωτογράφος!
Μηνύματα
11.330
Reaction score
5.801
Jun 16, 2014 at 5:08pm
Quote

Post by bootman on Jun 16, 2014 at 5:08pm
I'm a fan of Pioneer AVRs.
They have been good for me as far as HDMI compatibility, features, etc.

MCACC has worked reasonably well in my family room in the past.

www.pioneerelectronics.com/PUSA/Home/AV-Receivers/Elite+Receivers/SC-89

Should be coming this fall and I'm liking the enhancements to MCACC. (four sub EQs and independent Dual Subwoofer Output
)

The ipad app to control everything has been a work in progress and keeps getting better.
Just wish they were backward compatible. >:(


The rest looks like the standard set of features coming for AVRs this fall.





AIR Studios Monitor Certification
Dolby Atmos®/Dolby® TrueHD/Dolby Digital Plus/Dolby Surround
DTS-HD Master Audio/DTS-ES/DTS Neo:X
USB-DAC 192 kHz/32-bit with DSD Native Playback
DSD Direct Playback via USB Memory Devices (5.6 MHz, 2.8 MHz)
DSD Disc (SACD) Playback via HDMI (2.8 MHz)
Digital Core Engine with Texas Instruments Aureus™ DSP
SABRE32 Ultra DAC (ES9016+ES9016) for 9.2ch <---------is everyone using these now????
Audio Scaler 192 kHz/32-bit Enhancer
HDMI 2.0

Also some good networking features:

HOME NETWORK FEATURES
Apple AirPlay Certified
DLNA Certified™ (1.5)
HTC Connect™ Certified
Windows® 8 Compatible
Music File Playback/Seek*1 via Network/USB: AIFF, Apple
Lossless, WAV, FLAC, MP3, WMA, AAC, DSD 192 kHz/24-Bit Audio playback (AIFF, WAV, FLAC)
Multi-Channel (5.1ch, 5.0ch) Audio Playback*2 (WAV, FLAC) <-------------------------------yes!
Gapless Playback for AIFF, Apple Lossless, WAV*3, FLAC*3, AAC, MP3
Spotify® Digital Music-Streaming Service Ready*4
Internet Radio with vTuner


gstriftos

gilectronikos
Μηνύματα
17.437
Reaction score
3.532
Ρε Βλάσσ',sub δεν έχεις(θες και διπλές εξόδους τρομάρα σου) ηχεία στο ταβάνι δεν μπορείς να βάλεις(θες και Atmos),τι στο διάλο να τον κάνεις;


vlasis

Φωτογράφος!
Μηνύματα
11.330
Reaction score
5.801
Ρε Βλάσσ',sub δεν έχεις(θες και διπλές εξόδους τρομάρα σου) ηχεία στο ταβάνι δεν μπορείς να βάλεις(θες και Atmos),τι στο διάλο να τον κάνεις;
Ρε Βλάσσ',sub δεν έχεις(θες και διπλές εξόδους τρομάρα σου) ηχεία στο ταβάνι δεν μπορείς να βάλεις(θες και Atmos),τι στο διάλο να τον κάνεις;
Θα παρομεν και sub και ηχεια στο ταβανι θα βαλλομεν και υδρ-ατμους θα εχομεν και μπασοπαγιδες θα στησομεν και νεο ρακ θα μαστορεψομεν και και και και.......η ελπις πεθαινει τελευταια λενε........:dance2::dance2::laugh::laugh::laugh::laugh::laugh:
