Wharfedale AVR-W1330
Μετάφραση από Γιαπωνέζικα.
Technical parameters ■ Rated output power: L/R/C channel, 240W Rms/ 8Ω (THD=1%, mono, 1kHz) ■ Other channels, 120W Rms/ 8Ω (THD=1%, mono, 1kHz) ■ Distortion: ≤0.03% (A-weighted, Pure 1kHz normal working conditions) ■ Frequency response: 10-50kHz (+1/-3dB, Pure) ■ Signal-to-noise ratio: ≧95dB (A-weighted, Pure) ■ Net weight: 22kg ■ Overall machine size (including machine feet, knobs, terminals): 431×443×217mm
> Interface and configuration
AVR-W1330 is equipped with 6 HDMI inputs, 2 HDMI outputs, HDMI2.1 standard, supports HDCP2.2 protocol, and supports HDMI CEC control function to ensure that functions on various Blu-ray players/set-top boxes can be linked. One of the HDMI outputs supports eARC (Enhanced Audio Return Channel), which can directly transmit audio signals back to the AVR-W1330 through the HDMI input interface of an LCD TV (which also supports ARC). The limited 1Mbps broadband of ordinary ARC limits the sound quality of the transmission, making it impossible to send high-quality audio signals to the AV machine; while the maximum rate of eARC can reach about 37Mbps, which is enough to transmit lossless 5.1 and 7.1-channel audio, such as Dolby TrueHD and DTS-HD MA.

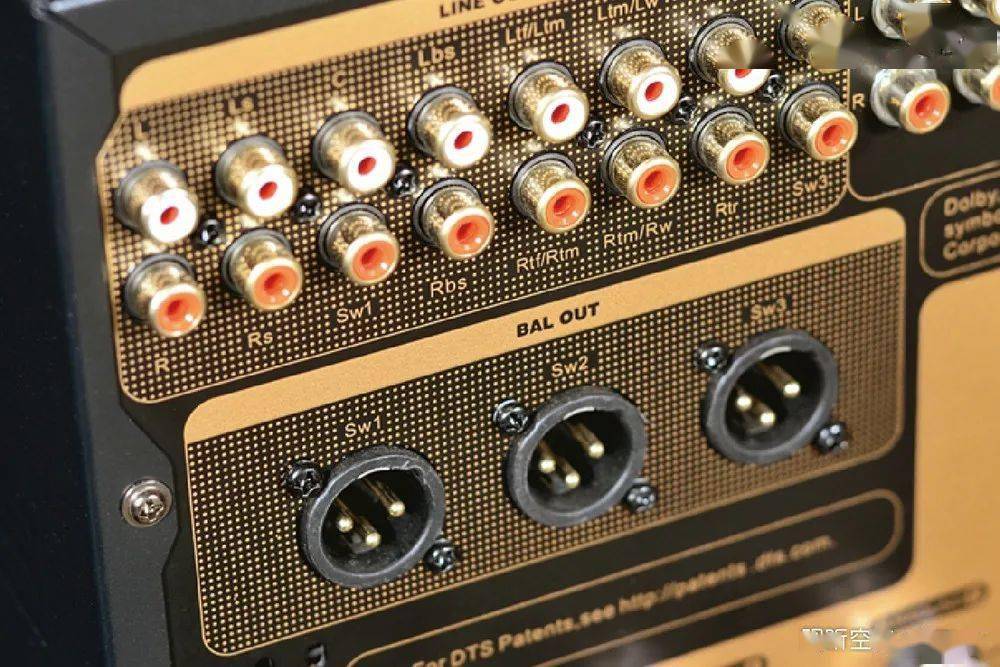

AVR-W1330 uses the latest generation dual-core DSP processor from American ADI, supports Dobly Atmos panoramic sound effects and DTS:X immersive sound effects and is backward compatible. It supports 4K video technology and is compatible with HDR10, Dolby Vision and other video formats. Supports 7.3.6 channels, configured with 13.3-channel RCA output, 11-channel amplification, LCR main channel output 240W (8Ω), and other channel outputs 120W (8Ω).
Other interfaces include 4 sets of analog inputs, 2 optical/coaxial inputs each, an external Bluetooth antenna, and a mini-USB to connect to a computer for decoding, allowing the AVR-W1330 to connect to a variety of sources, and a mini-USB to connect to a USB flash drive. The USB Type-A interface and a TF card slot can read the music files stored in it. Infrared, 12V Trigger, RS232 and other operating interfaces are also available for easy access to the theater main control.
Μετάφραση από Γιαπωνέζικα.
Technical parameters ■ Rated output power: L/R/C channel, 240W Rms/ 8Ω (THD=1%, mono, 1kHz) ■ Other channels, 120W Rms/ 8Ω (THD=1%, mono, 1kHz) ■ Distortion: ≤0.03% (A-weighted, Pure 1kHz normal working conditions) ■ Frequency response: 10-50kHz (+1/-3dB, Pure) ■ Signal-to-noise ratio: ≧95dB (A-weighted, Pure) ■ Net weight: 22kg ■ Overall machine size (including machine feet, knobs, terminals): 431×443×217mm
> Interface and configuration
AVR-W1330 is equipped with 6 HDMI inputs, 2 HDMI outputs, HDMI2.1 standard, supports HDCP2.2 protocol, and supports HDMI CEC control function to ensure that functions on various Blu-ray players/set-top boxes can be linked. One of the HDMI outputs supports eARC (Enhanced Audio Return Channel), which can directly transmit audio signals back to the AVR-W1330 through the HDMI input interface of an LCD TV (which also supports ARC). The limited 1Mbps broadband of ordinary ARC limits the sound quality of the transmission, making it impossible to send high-quality audio signals to the AV machine; while the maximum rate of eARC can reach about 37Mbps, which is enough to transmit lossless 5.1 and 7.1-channel audio, such as Dolby TrueHD and DTS-HD MA.
AVR-W1330 uses the latest generation dual-core DSP processor from American ADI, supports Dobly Atmos panoramic sound effects and DTS:X immersive sound effects and is backward compatible. It supports 4K video technology and is compatible with HDR10, Dolby Vision and other video formats. Supports 7.3.6 channels, configured with 13.3-channel RCA output, 11-channel amplification, LCR main channel output 240W (8Ω), and other channel outputs 120W (8Ω).
Other interfaces include 4 sets of analog inputs, 2 optical/coaxial inputs each, an external Bluetooth antenna, and a mini-USB to connect to a computer for decoding, allowing the AVR-W1330 to connect to a variety of sources, and a mini-USB to connect to a USB flash drive. The USB Type-A interface and a TF card slot can read the music files stored in it. Infrared, 12V Trigger, RS232 and other operating interfaces are also available for easy access to the theater main control.
