DACs - τελειωμό δεν έχουν

[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

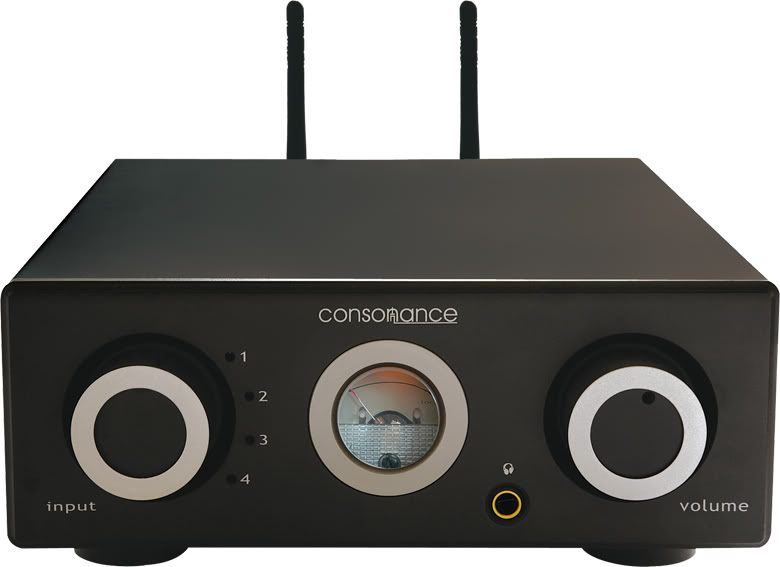

Consonance D-Linear 8C wireless DAC







Opera Consonance's new D-Linear 8C wireless DAC is an interesting alternative to Apple Airport Express and Micromega Airstream units. It can connect to a computer (PC or Mac) via wifi and stream music wirelessly. Various digital inputs are provided so the unit can function as a DAC. It even has a capable headphone amplifier. Quality parts through-out with low noise toroidal transformer and class A output stage.

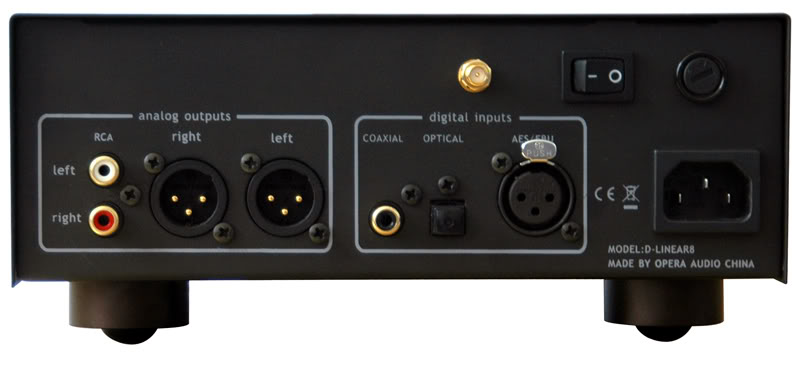

The heart of the D-Linear 8C is an Analog Devices AD1853 24-Bit chip running at a 192kHz sampling rate. There are 4 selectable digital inputs on the rear panel consisting of a coaxial RCA, AES, Toslink and Wireless. The basic signals are displayed through the front panel meter. This meter will also indicate when the signal is locked in.



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

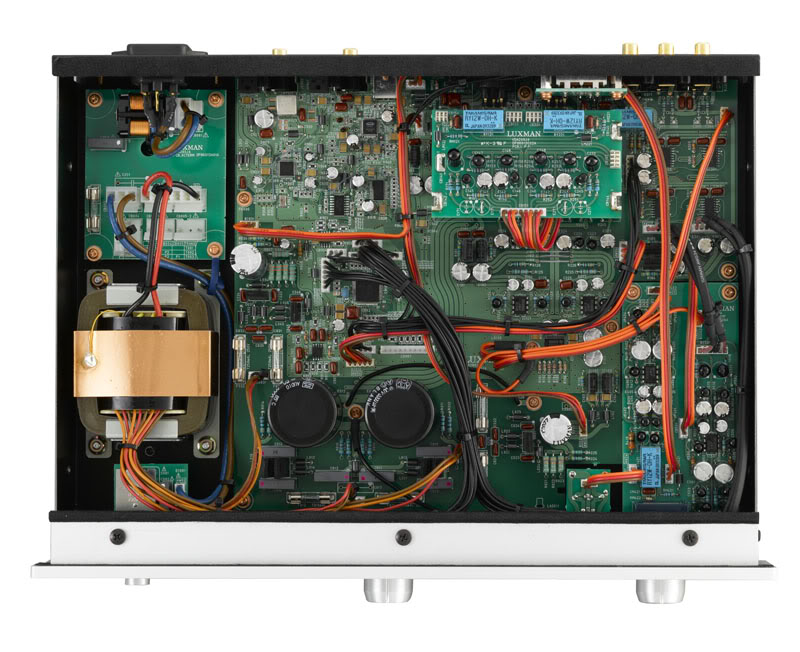

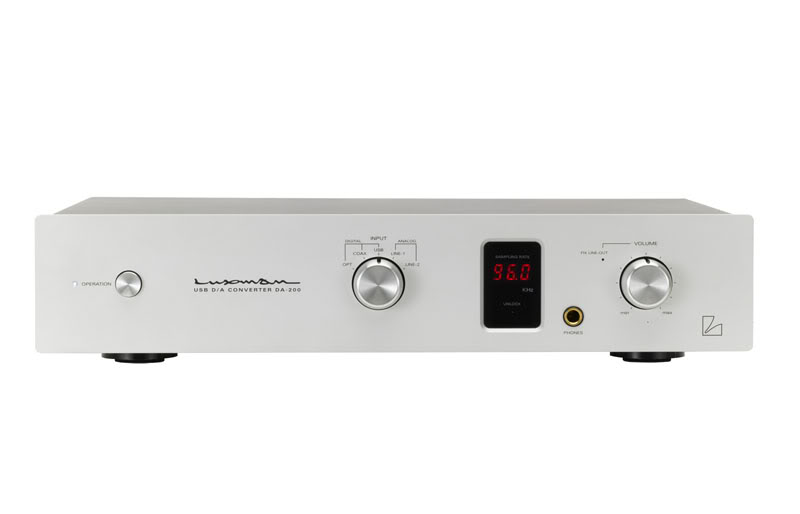

Luxman DA-200 USB DAC


Featuring Burr-Brown chip PCM1792A, the unit can accept USB digital inputs of up to 24/96 (drivers needed for PC and Mac), while the other digital inputs are up to 24/192khz. All digital inputs are up-sampled to 192kHz using internal low-jitter clock. There are provision for analog inputs, which are converted to digital for processing. Very high quality parts are used, which is typical of Luxman's product.

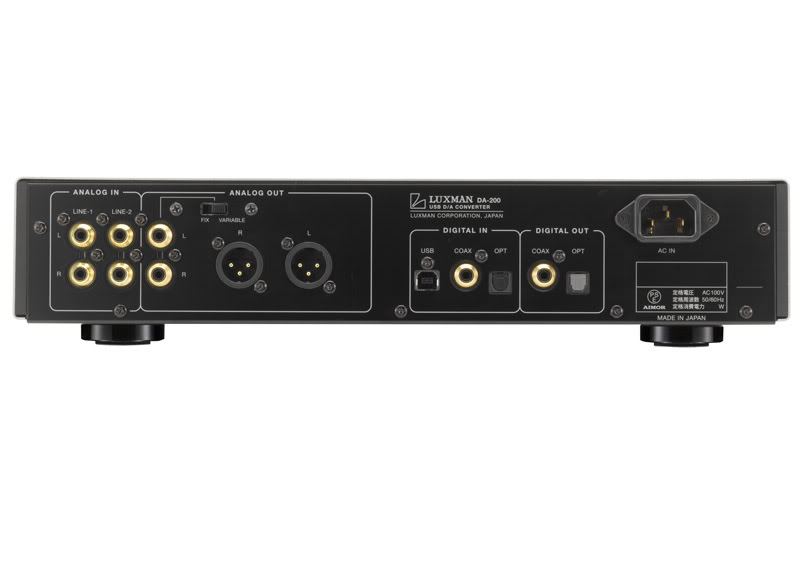

In addition to the unbalanced RCA outputs, XLR balanced outputs, headphone output, optical and coaxial S/PDIF digital outputs also provided.



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!






Pricing approximately US$2,000 in Japan, pricing elsewhere is to be confirmed.



[Manos58]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Τέλειωνε ρεεεεεεεεεεεεεεεεεεεεεεεεεεεεε
Μας κα:404:.............θήλωσες.

Και πες μας ποιό (AMR) απ'όλα αυτά θα πάρεις ?



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Ψαχνω ακομα για το ποιο βαρυ και 7 ποντους αλουμινιο στην προσοψη!!!!!!!!!!!!!!!!!!!!!!:204::410::405:



[haralas]

Re: Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

αμαν βρε βλασακο μας πεθανες τα εχω <παιξει> το μονο που ειναι σιγουρο ειναι το οτι δεν προκειται να παρω κανενα διοτι οτι και να παρω το αλλο θα παιζει καλυτερα !!



[themiloc]

Re: Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Μήπως να κατηφόριζα νότια, μόλις μπορέσω, με κάποιες σωστές αποσκευές Βλάσιε?
Λέω εγώ τώρα.
Θ.



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Φυσικα φιλε Θεμη......εισαι καλοδεχουμενος και τα ουζακια δικα μας!!!!!!:403::403:


Και τιιιιιιιιιιιιιιιιιιιι θα εχει μεσα το βαλιτσακιον?



[vlasis]

Απάντηση: Re: Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

αμαν βρε βλασακο μας πεθανες τα εχω <παιξει> το μονο που ειναι σιγουρο ειναι το οτι δεν προκειται να παρω κανενα διοτι οτι και να παρω το αλλο θα παιζει καλυτερα !!

:410::410: Αντροπη μου........γιατι εχω κι αλλα!!!!!!!!!!!!!!!:114:



[haralas]

προχωρα-προχωρα !!!!!



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

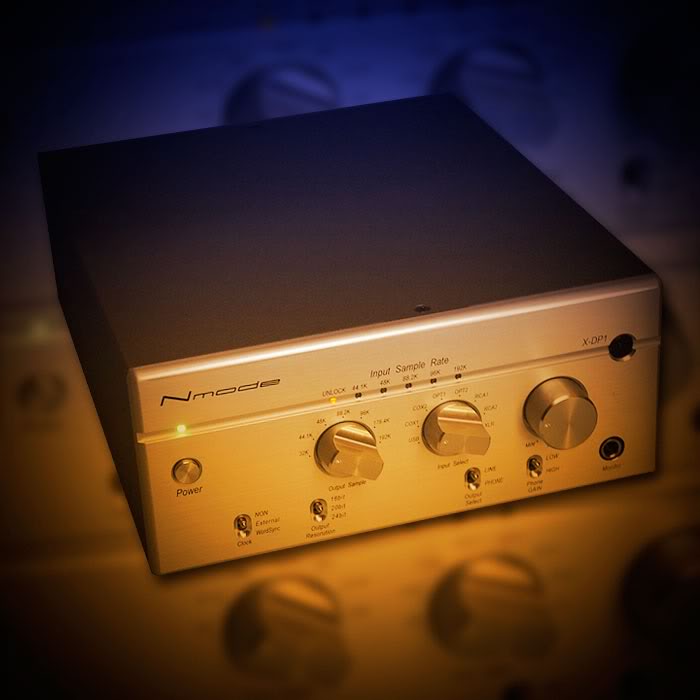

Nmode 24bit/192kHz DAC from Japan


The Nmode X-DP1 is a 24bit/192kHz DAC using the high-end Burr Brown PCM1792A DAC chip, itself capable of noise levels 130db down. Inputs are a plenty with two coaxial inputs, two optical inputs plus a single USB input limited to red book standards.

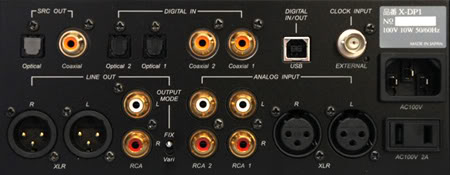

The back panel however is awash with inputs and outputs which on top of the above mentioned digital inputs include: two digital outputs, one coaxial one optical, word clock input, two analogue line levels inputs via RCA and a single balanced XLR input. Output is via balanced XLRs or unbalanced RCA, with a small switch to make those outputs fixed at line level or variable via the front panel volume control, making it also a pre-amplifier.

The X-DP1 is also a headphone amplifier with a 6.3mm headphone socket mounted on the front panel, which along with the pre-amplifier function, explains the analogue inputs on the rear.

With a signal to noise ratio of 116db, this is going to be a very good DAC that could quite easily be all you need as a digital front end with it's plethora of both analogue and digital inputs, a fine headphone amplifier capable of driving headphones with 300ohm impedance and superb 'Made in Japan' build quality, we can't wait to get our hands on this one!



[Manos58]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

USB input limited to red book standards.

Δεν τρώγονται.................



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

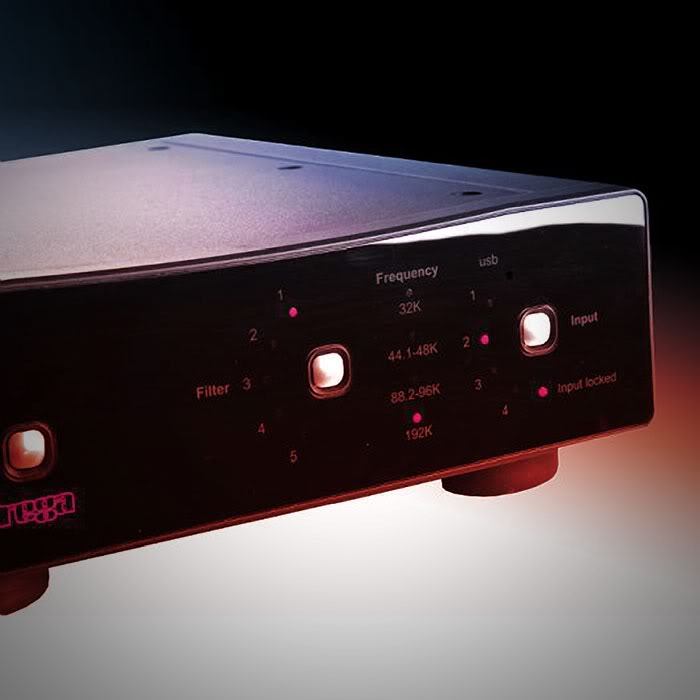

New Rega 24bit/192kHz DAC Released


Rega have announced and released (in the UK at least) their much rumoured new DAC, simply called Rega DAC, inventive stuff!
It will also be available in silver.

In terms of features, the Rega DAC has two coaxial inputs, two optical inputs, all of which are capable of receiving 24bit/192kHz signals. Like too many DAC manufacturers however, the USB input is limited to redbook standards, so 16bit/44.1 files.

I have said it before and I will say it again, why limit the USB port?

One of the biggest reasons to use a computer for playback is to access high res music files, and to be able to play those files back with this DAC will require a USB to S/PDIF converter such as the M2Tech HiFace that is capable of sending the full res files to the coaxial inputs.

Inside the DAC features a Wolfson digital receiver with a high stability low jitter clock, a pair of parallel-connected Wolfson WM8742 DAC's, which are driven via a buffer stage, a similar configuration to that used in the Isis CD player. No upsampling is offered.

Output is via unbalanced RCAs only. However unusually, there are two digital outputs included too. The front panel features a power button, an input selector, and a filter button with five different filter options. Finally, input data rate LEDs all feature on the front face.



[Manos58]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Άλλος που δεν τρώγεται.
Ουστ ρε........................
Μηχανάκι καινούργιο που δεν παίζει 24/96 απο USB σήμερα ;



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Ρε αι σιχτηρ σκατογρια......που μου εμαθες τωρα και τα 24/96 !!!!!!!!!!!!!!
Λυσσαξες.......κιαρατα.......:405::410::410:



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

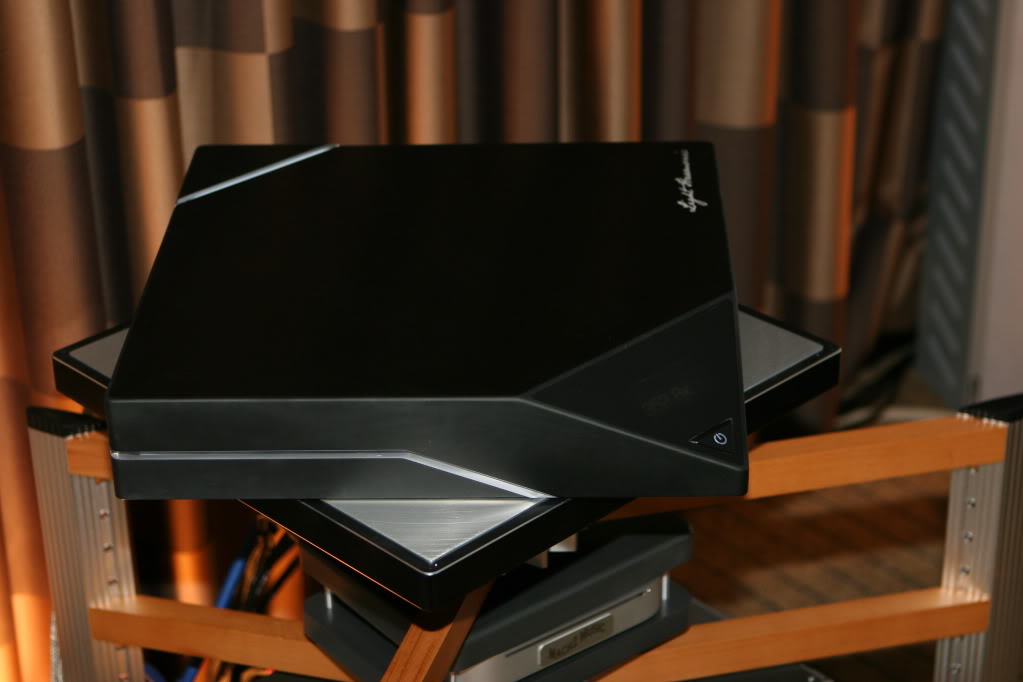

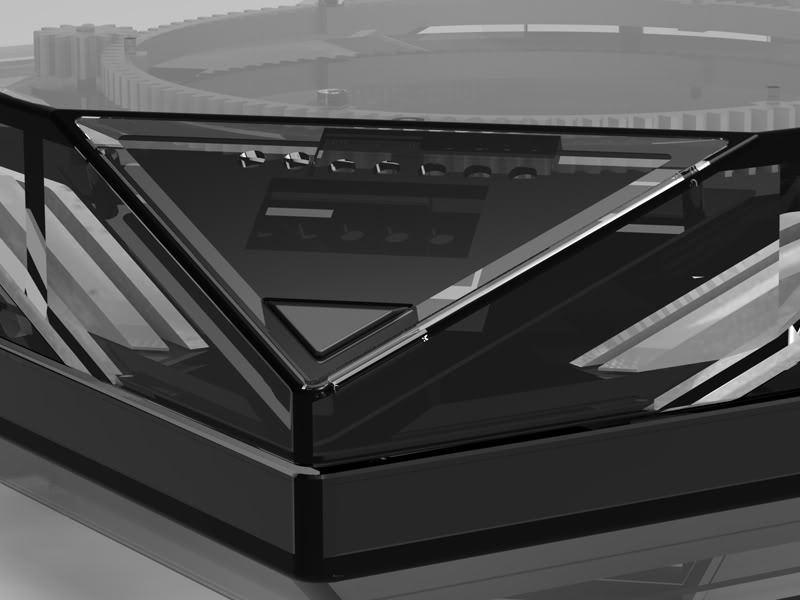

DaVinci asynchronous USB DAC



A true 384K resoluation asynchronous USB DAC DaVinci, this powerful machine combines the best in-class digital technologies with the genius work of one lengendary designer; Erno Bobley.

All discrete, non-negative feedback, complementary balanced analog output; with over 40 ultra-low-noise regulators.
This unprecedented player allows you to experience rich and crystal clear sound that embodies each musical notes with the natural frequency extension from high to low Hear DaVinci and discover the true meaning of losses high performance digital music






Patent Pending Technology

Featuring Jitter-Free Three Layer Buffer – This technology eliminate any possible jitter during the digital transmission cause by the PC USB Interface





Featuring Duet Engine – This engine uses analog interpolation to effectively doubling the low sampling rate. This technology doesn’t involved any of the known traditional notation of digital up-sampling ,over-sampling, digital noise shaping or use of digital filter; these techniques of digital “manipulation” are proven to create more harm than enhancing the sound quality. The Duet Engine uses sophisticated aligned timing to virtually doubling the effective sampling rate when listening to the old 44.1K 16bit audio files.



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

3X Clock

Light Harmonic’s has raised the bar with our innovative “3X Clock” architecture which allows each clock to operate at it’s optima performance, ensuring the lowest possible jitter. The first clock is dedicated to the USB signal transmission, the second clock dedicated to 44.1K (up to 352.8K) audio playback and the last clock is dedicated to 48K based (up to 384K) audio playback.

Each clock is comprised of temperature compensated crystal oscillator with zero Jitter introducing PLL mechanisms. The core audio module can perform on-the-fly automatic clock switching between 44.1K and 48K clock , according to the sampling rate of the input audio files.

Choosing the best in class components to reduce the phase error between two audio clock below -166db – This is 10,000 times less noisy than the clock usually found in the high-end audio equipments.





Power – the source of every excellence!

To minimize the AC and inter modulation noises. DaVinci lateralizes 8 discrete shunt regulators in our core digital conversion module; 2 nano volt regulators in the clock power circuit 12 high precision regulators in the USB module; 4 high current discrete shunt regulators for the analog output and buffer. A Total of over 40 high quality regulators in a single machine!

This design enable the listener to experience the “silence” between musical notes like being in “dark hole” of the universe. We challenge this by connecting DaVinci USB DAC to a 110dB effeciency horn speaker; not a single hizz or hum was heard – A Perfect Silence!




Duet Engine: analog interpolation to effectively doubling 44.1kHz sample rate using sophisticated aligned timing algorithm. (Light Harmonics says that this is NOT over/up sampling nor noise shaping)
3 x Clocks: one each for USB, 44.1k family and 48k family
64-bit precision volume control
No "Ring" Architecture: Minimizes pre and post ringing
8 discrete shunt regulators for digital, 2 nano volt regulators for clocks, 12 high precision regulators for USB module, 4 high current shunt regulators for analog
Option to disable low pass filter so no filters all the way to 100kHz when playing a 192k or 384kHz file where one does not have to worry about aliases and noises
1 x USB 2.0 input
1 x SPDIF input
24-bit, up to 384kHz
SNR 111dB unweighted
Available Fall 2011



Με 12 000 δολλαρς....στο ρακ σας............//

Για τον Μανωλη ρε γαμωτο που μου παραπονιεται .......παρε τωρα 384K resolution...........



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

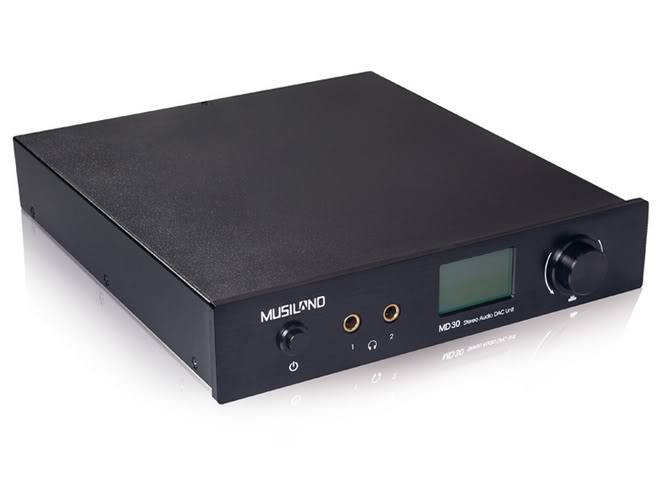

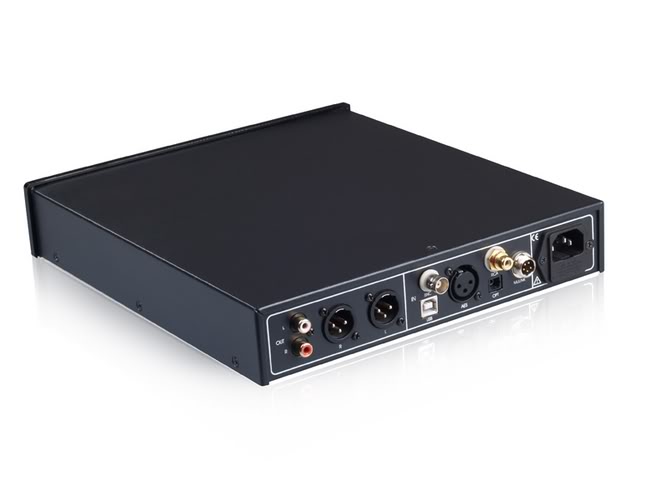

Musiland MD30 DAC/Headphone amp


China's Musiland has gained quite a following especially in the headphone enthusiast circles. Its MD10 is considered one of the best in terms of price/performance ratio. Its new DAC/Headphone amp, the MD30 features USB2.0 high speed asynchronous interface at up to 32bit/192kHz. At its core, a FPGA audio processing technology promise lower jitter and more accurate sound. Also new is an asynchronous high-speed cache and DDS re-clocking scheme via is 1ps high precision programmable clock.










Specifications

1. Digital input:

USB 2.0 High Speed ​​Interface: 16, 24, 32Bit sampling depth up to 192kHz
Coaxial RCA, BNC coaxial, fiber optic, AES: 16, 24Bit sampling depth up to 192kHz. Support MMDI instruction
MULINK high-definition digital interface (proprietary i2s): 16, 24, 32Bit sampling depth up to 192kHz. Support MMDI instruction.
Clock jitter (44.1kHz): S/PDIF less than 30PS, USB, MULINK less than 20PS

2. Line output

XLR balanced and RCA unbalanced
Dynamic range: greater than 120dB
SNR (A weighted): greater than 120dB
Total harmonic distortion: less than 0.0005%
Frequency Response (20Hz ~ 20KHz): +-0.2dB
Max Level: RCA Line 2V rms; XLR line 6V rms
Output Impedance: 10KΩ



[vlasis]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

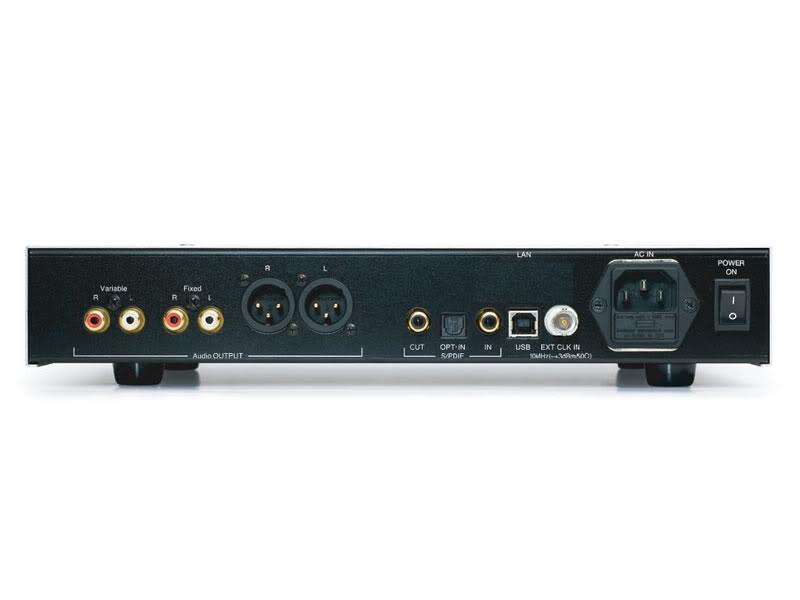

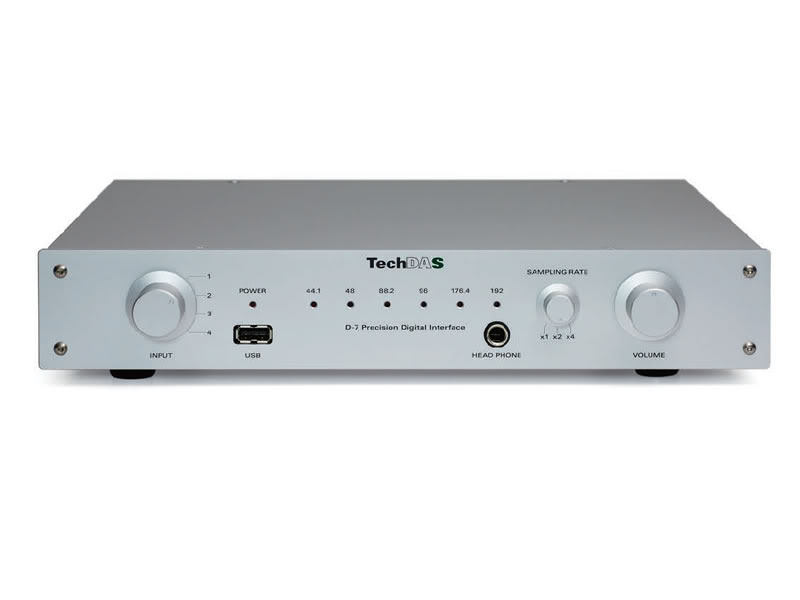

Stellavox Japan,--TechDAS D-7 DAC






The D-7 sports a Wolfson DAC chip (up to 24/192), and the galvanically isolated USB connection is of asynchronous type. Adjustable upsampling rate (1x, 2x, 4x) accessible from the front panel. So via digital output, the unit can be used as an asynchronous USB to S/PDIF converter, and also asynchronous sample rate converter. Unit seems to be very well-made and styling is clearly influenced by Goldmund SRM models from the 1990s, of which the company has close relationship with.

Digital input RCA, Toslink, USB (up to 24/96)
USB host port for USB drives
RCA digital output
Word clock input
Fixed analog output (RCA and XLR)
Adjustable analog outputs (RCA)
Headphone amplifier

Future enhancements would include upgraded USB input to allow for 192kHz sample rate and possibly a LAN network support.






US$3,000



[Manos58]

Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Για τον Μανωλη ρε γαμωτο που μου παραπονιεται .......παρε τωρα 384K resolution...........

Τι να το κάνεις το 384...... το 16/44,1 να παίζει σωστά:105::105::105:
