Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Τι να το κάνεις το 384...... το 16/44,1 να παίζει σωστά:105:

Aντε παγαινε βρε τσογλανι........σπασικλα !!!!!!!!
:623::617:



vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

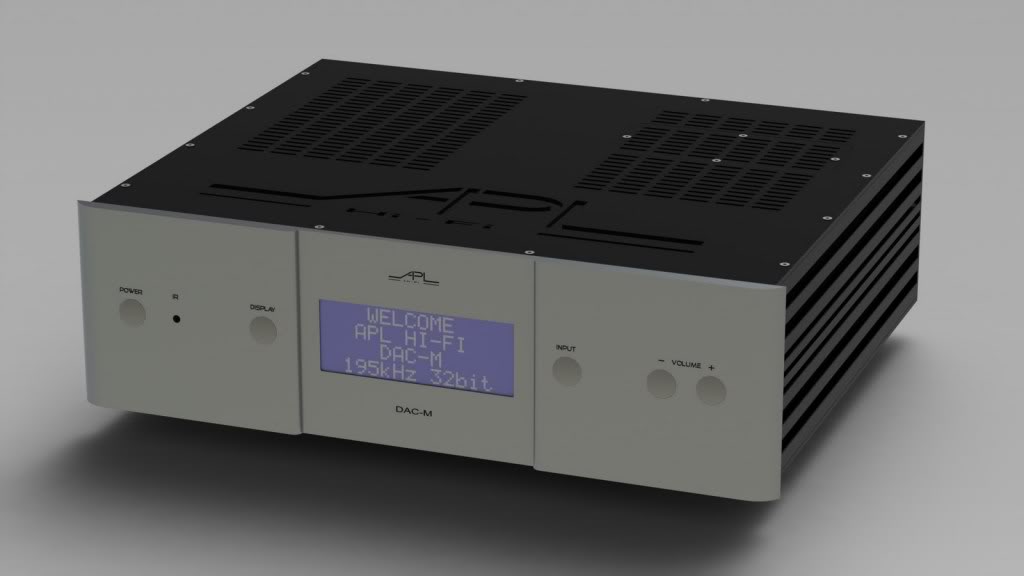

APL Hifi DAC-M


Alex Peychev's APL Hifi is finalizing his state-of-the-art digital to analog converter. The new DAC-M has obviously very impressive specs. Enhancing on the DAC-S, which we previously covered. It comes with AES/EBU input, asynchronous USB and two Coaxial S/PDIF inputs. Sporting unprecedented 20 AKM AK4399s 32-bit DACs per channel. It has a transformer-coupled tube output stage featuring special custom Oxygen Free Copper Lundahl audio transformers, and pair of the vintage new old stock E182CC tubes. The unique remote controlled H-Attenuator with 0.5dB step is also intact negating the need of a preamplifier. All-aluminum IR remote is included.





The DAC-M is an all-hand-made with point-to-point wiring. The Italian made aluminum enclosure is 17x12x3.5 inches. Special, custom, oversized P-Core transformer is specifically hand-made for the DAC-M. Introductory price is $19,500 including 5 years warranty and shipping.





vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

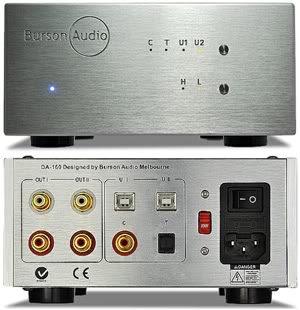

Burson Audio DAC-160


Australian Burson Audio's claim to fame was its excellent HA-160D headphone amp+preamp+DAC which uses Burson's proprietary discrete operational amplifiers (not IC OpAmps, also available as upgrade modules for other products). Burson is back with a stand alone digital to analog converter dubbed the DAC-160 which is based roughly on the DAC section of the HA-160D, housed in a handsome machined aluminum case.






* 2 x 24/96 USB inputs
* 10ppm low-jitter clock
* 1 x each 24/192 Coaxial and Toslink SPDIF inputs
* 2 x fixed analog RCA outputs with high/low gain switch.
* All voltage regulators and OpAmps are built up from discrete components
* Output stage operates in Class A with constant current source power supply
* Two low noise power transformers
* Input impedance is 52 Kohms
* S/N ratio is >101dB at 0dB gain
* THD is <0.001% at 6mW/300 ohms
* Channel separation is >95dB/10kHz
* Output impedance is 25/45 ohms selectable
* Power dissipation is <25W
* Dimensions are 180 x 250 x 80mm, 5kg


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

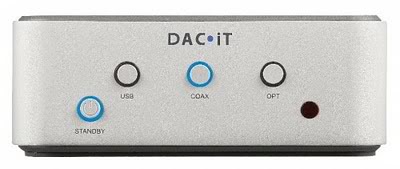

Peachtree Audio DAC●iT


Peachtree Audio the maker of popular iNova and iDecco digital-ready integrated amplifiers announced a new model - DAC●iT which slots-in under the company's current iDac at a lower price point of US$449. The unit is based on the ESS Sabre ES9022 chip with three digital inputs: USB (24/96 adaptive), Coax SPDIF (24/192), and Toslink optical (24/96). The digital inputs are transformer-coupled for ground isolation, USB input also features galvanic isolation. Dimensions are 2.42" H x 6.5" W x 6.5" D, which is the same foot print as previous generation Mac Mini.





vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

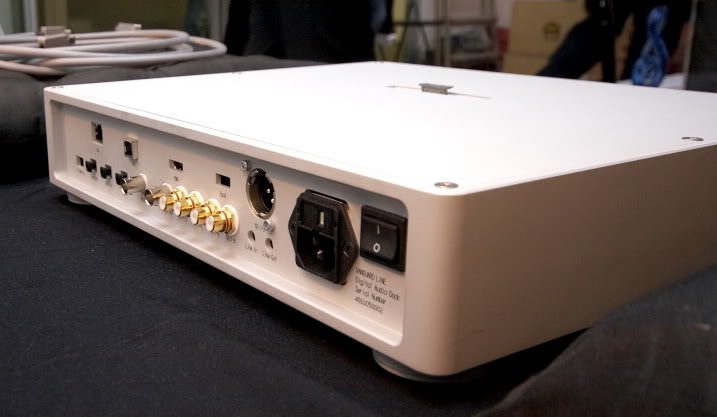

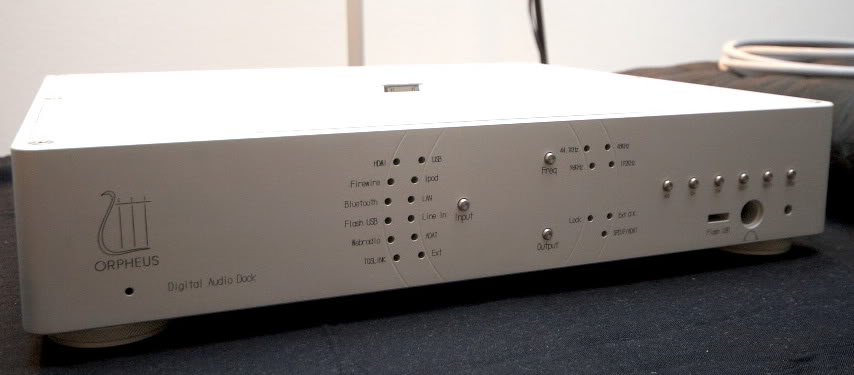

Orpheus Lab Vanguard Digital Audio Dock


Orpheus Lab's swiss-made "Vanguard" Digital Audio Dock (DAD) has all the inputs you'll ever need. Allowing connection to any digital audio sources compatible with S/PDIF and ADAT Lightpipe formats.





A large number of connection ports are provided in the DAD including USB 2.0, FireWire 400, Bluetooth AD2P, LAN and USB Flash. The DAD is able to work in multichannel mode with the USB, FireWire and ADAT modules. It also comes with licensed iPod and iPhone digital transfer compatibility, in a dock which not only enables playback of your iPod/iPhone content but also the recharging of the devices.







Inputs

* Word clock IN / OUT (44.1KHz/48KHz/96KHz/192KHz)
* Firewire multichannel: 8 Channels 24Bits @ 192kHz
* USB 2.0 multichannel: 8 Channels 24Bits @ 192kHz
* LAN/Ethernet: UPnP Compliant, Configurable WebRadio
* iPod and iPhone Dock.
* Bluetooth 2.1+ EDR A2DP (iPhone compliant)
* USB Flash Direct playback
* HDMI not HDCP Compliant
* Optical ADAT: Up to 8 Channels 24Bits @ 48kHz
* Toslink: 1 Channel 24Bits @ 192kHz

Digital Outputs

* 4 x SPDIF channels
* 1 x ADAT

Analog Input

* 1 x Line In over jack

Analog Output

* Headphone
* 1 x Line Out over jack


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

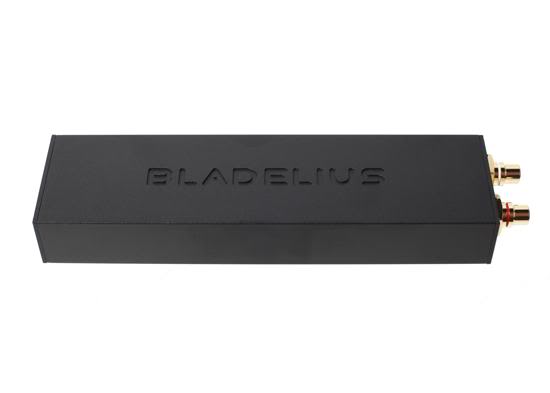

Bladelius USB DAC


Swedish Bladelius Design Group's first in a series of mini accessory products is a USB-only DAC. The Asynchronous USB DAC is 24/192kHz capable and is powered by the USB port but signals are galvanically isolated. It uses a minimum phase type filter with no pre-ringing to achieve a more natural sound with less digital harshness.







* 24 bit/192 kHz
* Asynchronous USB transfer, re-clocking with a fixed low jitter crystal clock
* Galvanic isolation between USB and the analog circuits
* Super low noise power supply with multistage regulation and filtering
* Low order modulator for low out of band noise
* Digital filter with minimum phase
* Analog output stage is a high performance / high drive (output 2.5v)


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

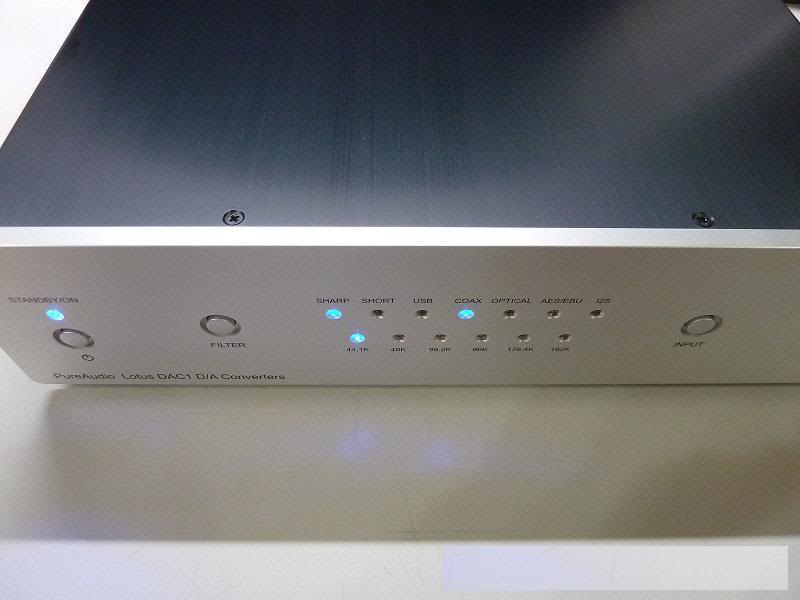

PureAudio Lotus DAC1



A division of Vintage Audio Lab ("VALAB"), PureAudio's Lotus DAC1 uses top of the line AKM 4399 32-bit chip and is can accept up to 24/192 over its SPDIF and I2S inputs while USB is 24/96kHz capable. Pricing is very competitive at circa US$600.






High grade parts usage:

* Resistors used on audio circuit are Dale military precision metal film resistors.
* Wima mkp and Philips 036 electrolytical capacitors used for chips decouping.
* Japanese Rubacon capacitors used for main power filtering.
* 1n5062 diodes based rectifiers.
* SMD parts and profession circuit layput for high freqnency circuits to get best performance.
* Matal can Sealed transformer to get lowest EMI interference.



Digital Inputs:
USB - Support 16bit and 24bit 44.1K/48K/96K sampling rate (Native 24bit 96k supported, not by ASRC sample rate converter)

COAX、OPTICAL、AES/EBU、I2S - support 16bit and 24bit 44.1K/48K/88.2K/96K/176.4K/192K sampling rate


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

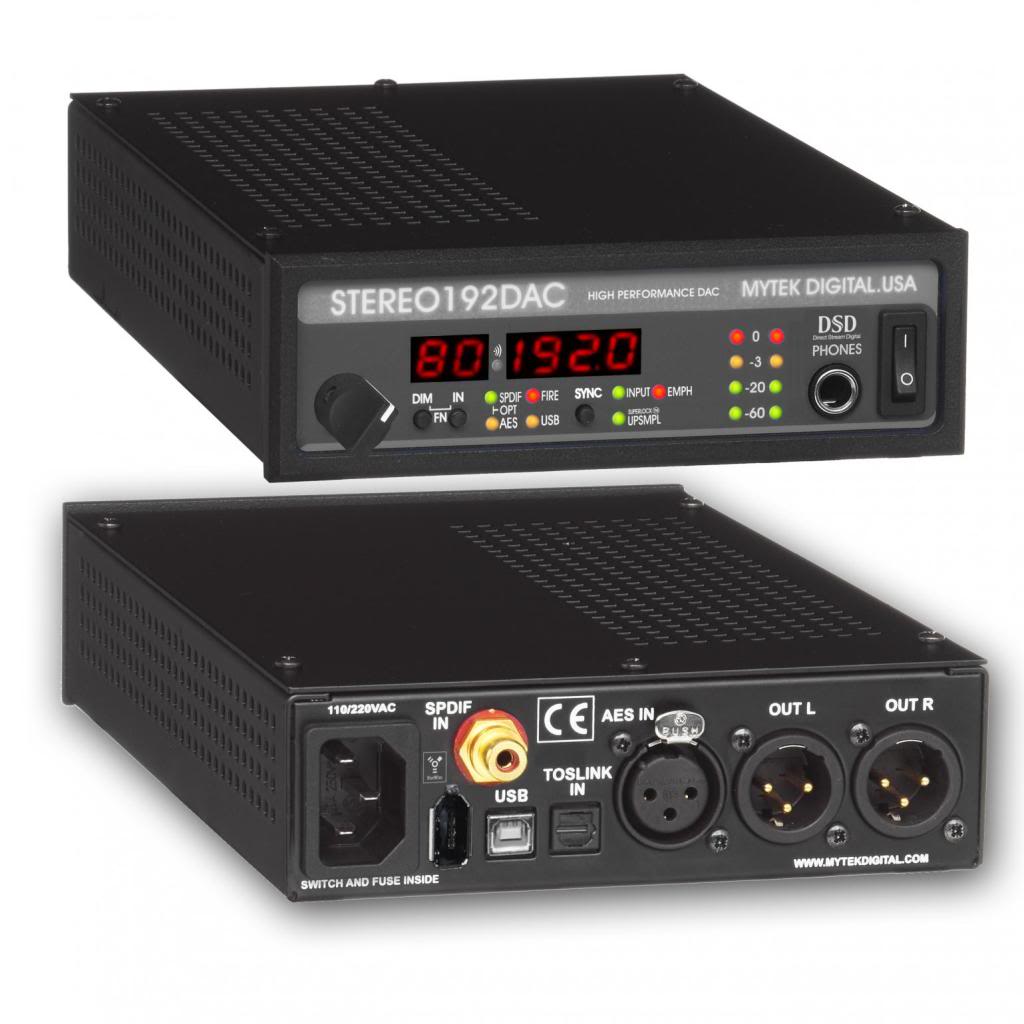

MYTEK DIGITAL


MYTEK DIGITAL ANNOUNCES NEW HI-END USB/FIREWIRE DAC

Mytek Digital of New York City, manufacturer of high end mastering audio converters announced at AES Convention in New York, in October 2009, a brand new Stereo 192 DAC, top performance 192k PCM and DSD Digital to Analog Converter. The new DAC features USB and Firewire, as well as standard AES, SPDIF and Toslink inputs, capable of handling stereo PCM playback of up to 24 bit 192k as well as playback of DSD files with absolute state of the art accuracy and transparency.

Numerous features include: high end headphone amplifier, precision volume control with memory (separate for phones and main output), selectable upsampling to 192k and optional remote control.

The DAC will be available in Q1 2010, in both industrial and hi-fi 1/3 rack highly portable enclosure, at Mytek dealers worldwide. It's priced at $1595 for industrial version and $1695 for black or silver Hi-Fi version with RCA outputs.

MYTEK DIGITAL USA , please email mihow2008@mytekdigital with any QQ. Regards, Michal, Mytek New York

MYTEK DIGITAL USA





vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

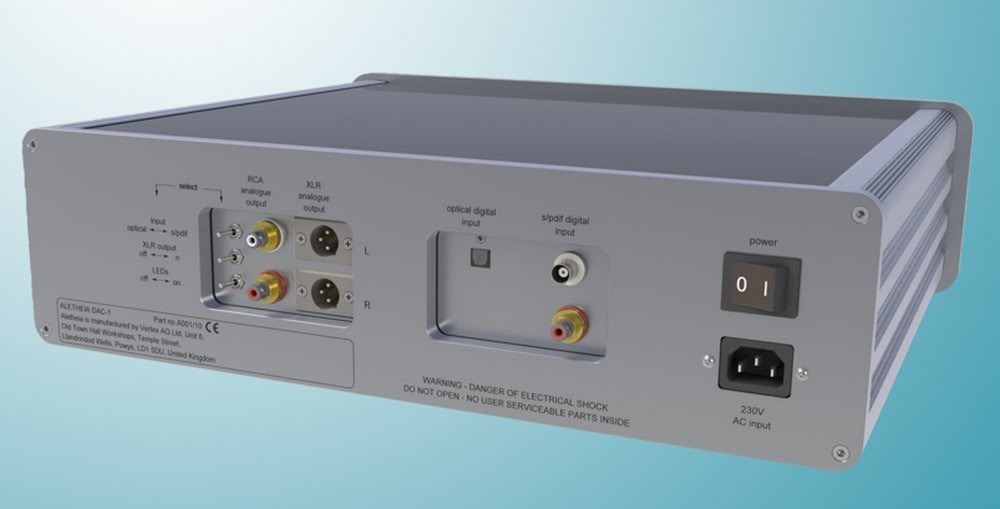

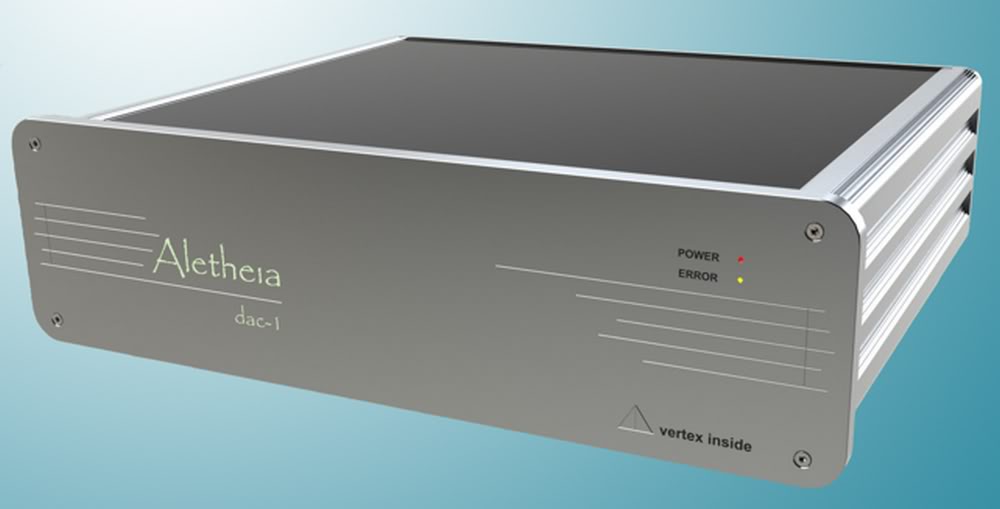

Vertex AQ Aletheia Dac-1




The Aletheia brand will be a range of electronics with a fundamentally different approach - the fusion of outstanding electronics design with all the Vertex principles of RFI and microphony control, right down to a component-by-component level (ie each chip, capacitor, resistor and so on.....).





1. A completely modularised design with very high levels of process separation, with extensive anti-vibration and anti-RFI/EMI techniques throughout.
2. 16-bit d to a conversion with no oversampling or filtering. DAC circuitry housed in EM absorptive box.
3. Passive I to V output stage using Vishay resistors and Mundorf supreme silver/gold/oil caps.
4. Ultra-high quality quad-stage power supply topology using mains pre-filtering, fully enclosed (EMI absorptive) 100 VA transformer on decoupling mounts, a discrete component pre-regulator and 4 second-stage discrete component regulators. The regulators are Pauly Hynes Design items, heavily modified with the application of anti-RFI/EMI and anti-microphony techniques.
5. All wiring downstream of mains transformer is solid-core silver with EMI absorptive tubing.
6. Digital input - s/pdif BNC, RCA and optical.
7. Analogue outputs RCA and XLR.
8. All signal sockets mounted on decoupled sub panels.






vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

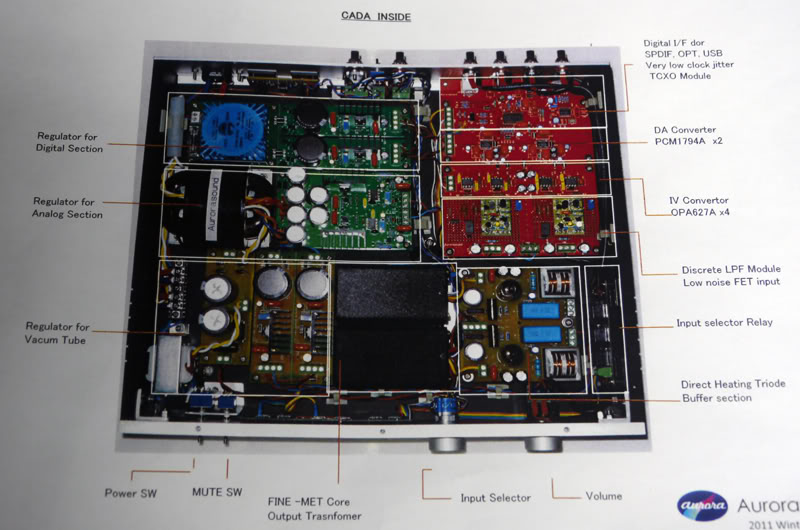

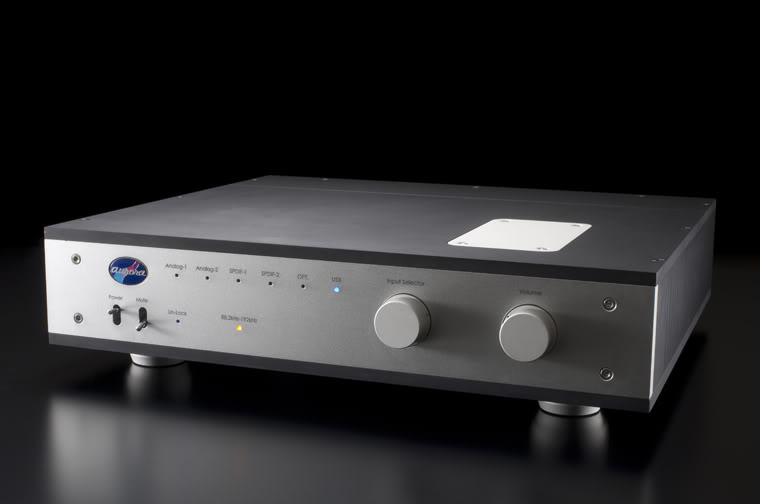

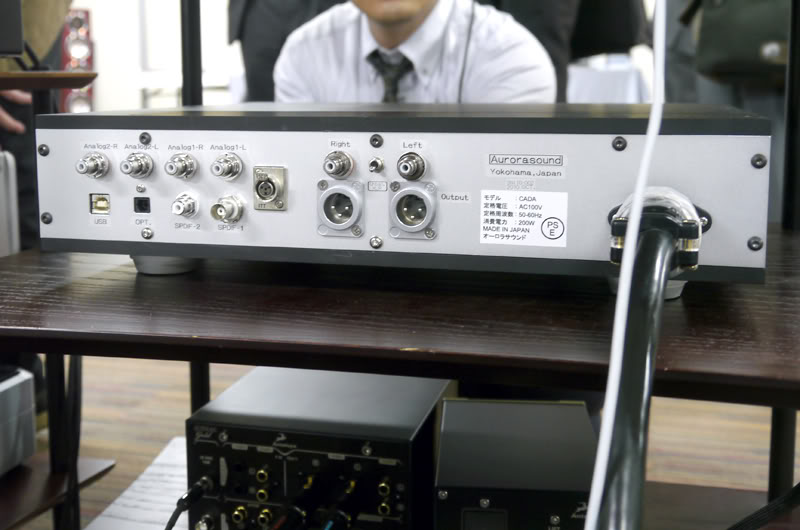

Aurorasound CADA










vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

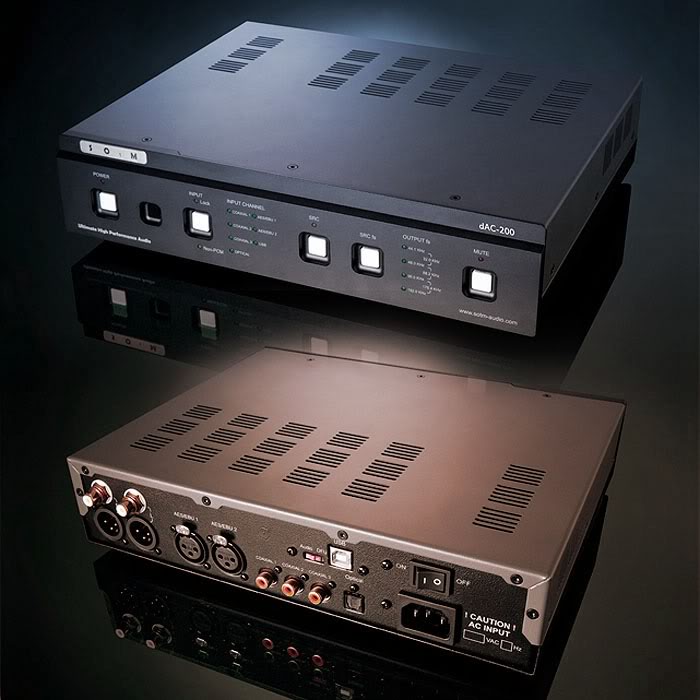

SOtM dAC-200 24bit DAC



Another day, another DAC hits the market, but this one is a little more interesting that most releases, primarily because it doesn't use the more common DAC chipsets from Burr Brown, Wolfsen or even the ESS Sabre. The SOtM uses a 32bit Japanese AKM chip as found in the high-end and very costly Esoteric DA converters.

The dAC-200 itself is no low end option as it retails for US$2000, but it has quite a bit to offer for the money, including remote control and a plethora of inputs including 2 x AES/EBU, 3 x Coaxial, 1 x Optical and 1 x USB. Should be enough for most setups. Output is via high quality unbalanced RCAs or balanced Neutrik XLR connectors.

Internally it uses dual power supplies with heavy filtration, and uses audio grade components throughout. The dAC-200 also has a sample rate converter, which the user can chose the upsampled frequency, or bypass altogether. The optical and USB ports support 24bit/96kHz data rates, while all other inputs support 24bit/192kHz. Line out frequency response is quoted as 10Hz ~ 100KHz (-3db).

We have a sample unit on the way to us now for evaluation, along with their dx-USB HD, a USB to S/PDIF converter in the vein of the M2Tech HiFace EVO.





vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

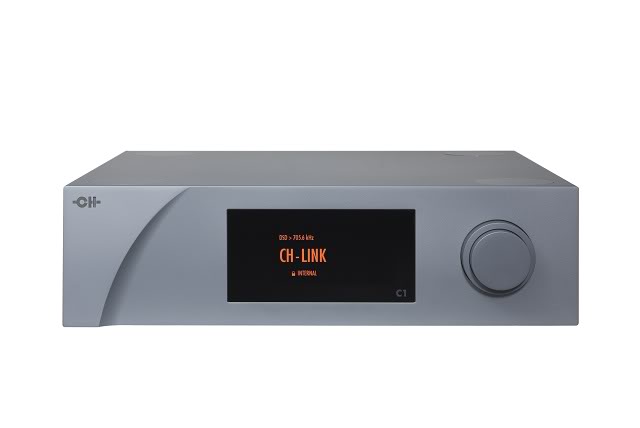

CH Precision C1 Digital to Analog Controller



The C1 is based on a fully modular, future-proof architecture. Inputs boards (up to 3) include standard digital inputs complemented by the proprietary CH-Link interface. The CH-Link interface allows for synchronized transfer of High Definition audio content and control over a single connection and is the optimal link between the C1 and the matching D1.
Based on a DSP assisted multiple R2R topology, the C1 Digital to Analog Controller embodies state-of-the-art digital to analog to conversion combined with advanced digital volume control and innovative clocking schemes.







HD link, PCM (up to 768kHz/32bits) / DSD (cyphered)
XLR, 5Vpp, 110Ohms, up to 24bits/192kHz
RCA, 0.5Vpp, 75Ohms, up to 24bits/192kHz
Optical, up to 24bits/192kHz


Network audio streaming board (clock master, up to 24/192)
USB audio streaming board (asynchronous mode, up to 24/192)
Analog input board with both balanced and single-ended inputs


Linearized R2R, 4x PCM1704 per channel, 705.6/768kHz
CH-HiD up-sampler, DSD to PCM and resolution enhancer
Ultra low noise, high slew rate, zero global feedback, full discrete


2x RCA (75Ohms SE), 2x XLR (Balanced), 2x BNC (50Ohms darT)
Better than 120dB
Less 0.001%

http://www.ch-precision.com/site/in...c1-specification-article&catid=6:c1&Itemid=30


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

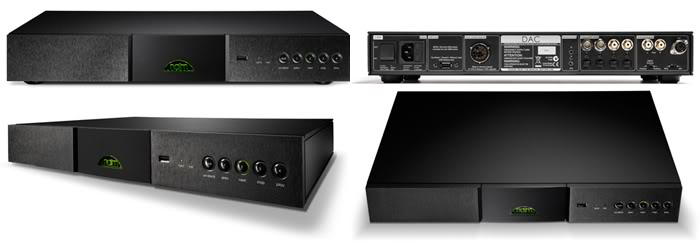

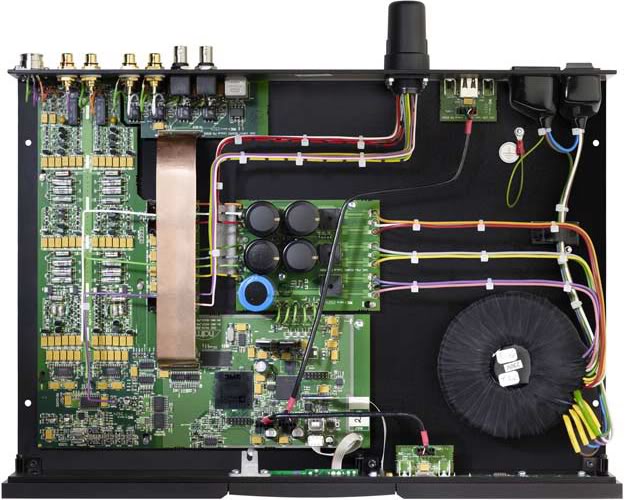

Naim Dac



Post buffer Naim relies on proprietary software for their digital filter, then a Burr Brown PCM1704K chip per channel just as their flagship CD555 player does. I/V conversion is discrete and borrowed from the output stages of Naim’s preamps. There are four twinned inputs, i.e. each is both coaxial (2 x RCA/BNC each) and Toslink. Control is via panel switches or remote. As with the firm’s preamps, volume control is also possible via Apple remote. Potential mates aren’t just CD players or transports but also satellite receivers and game consoles.







Two more digital inputs, one front one back, are USB. These accept USB sticks or iPods/iPhones but not computers or external drives as are reserved for Naim’s NDX. Acceptable USB data formats are WAV or FLAC. The rear panel also sports the so-called Link Plug, a multi-pin socket. In hallowed Naim tradition, removing it allows adding the €4.178 external XPS power supply or the €7.498 555PS either of which obviously push the DAC into far pricier strata.







# The Naim DAC offers 4 S/PDIF inputs (2 x BNC, 2 x RCA) duplicated by 4 Toslink sockets. Two USB sockets are reserved for USB sticks with WAV/FLAC data. Hard disks may not apply.
# Sonically there’s less light than with many other converters and the tonal center of gravity is lower and centered on the lower midrange. The treble is believable but less prominent. Staging is very stable without image drift.
# Vocals and instrument have realistic color but so-called air isn’t a forté to make the presentation more compact than elsewhere.
# Core strengths are dynamic constrast, musical structure and rhythm. This machine follows company reputation for excellent PRaT.


Μηνύματα
4.881
Reaction score
3.983
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Μπραβο Βλαση, αυτα ρε συ κινδυνευουν να γινουν περισσοτερα κι απο ....τα πικαπ!!


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

:119::116::135:


Μηνύματα
27.472
Reaction score
25.652
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

Αλήθεια Βλάσση πότε θα πάρεις πικάπιον?:204:


vlasis

Φωτογράφος!
Μηνύματα
11.736
Reaction score
7.528
Απάντηση: DACS....και τελειωμο δεν εχουν !!!!!!!!!!!!!!!

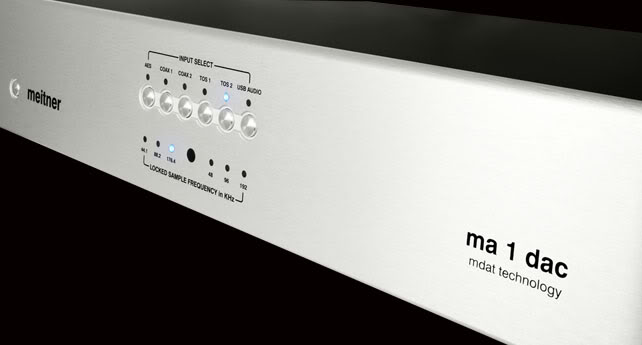

Meitner Audio MA-1 DAC



Uses MFAST™ asynchronous technology
Feed the MA-1 through any of its six inputs and the Meitner Frequency Acquisition System (MFAST™) instantly acquires the signal, buffers it, then strips jitter out completely. A high-speed asynchronous system,
it decouples input from output. MFAST™ ensures that you’ll enjoy pristine sonic clarity whether the incoming data stream is pure or anything but.

MDAT™: 2x DSD upsampling
From there, the signal goes straight into the Meitner Digital Audio Translator (MDAT™) which upsamples digital audio to 5.6 MHz, double the SACD standard sampling rate.


Our MA-1 features the standard-setting MDAC™ dual differential discrete D-to-A and MCLK™ high-purity master clock modules. Together, they’re music to our ears. Yours too, as an audition will quickly prove.
