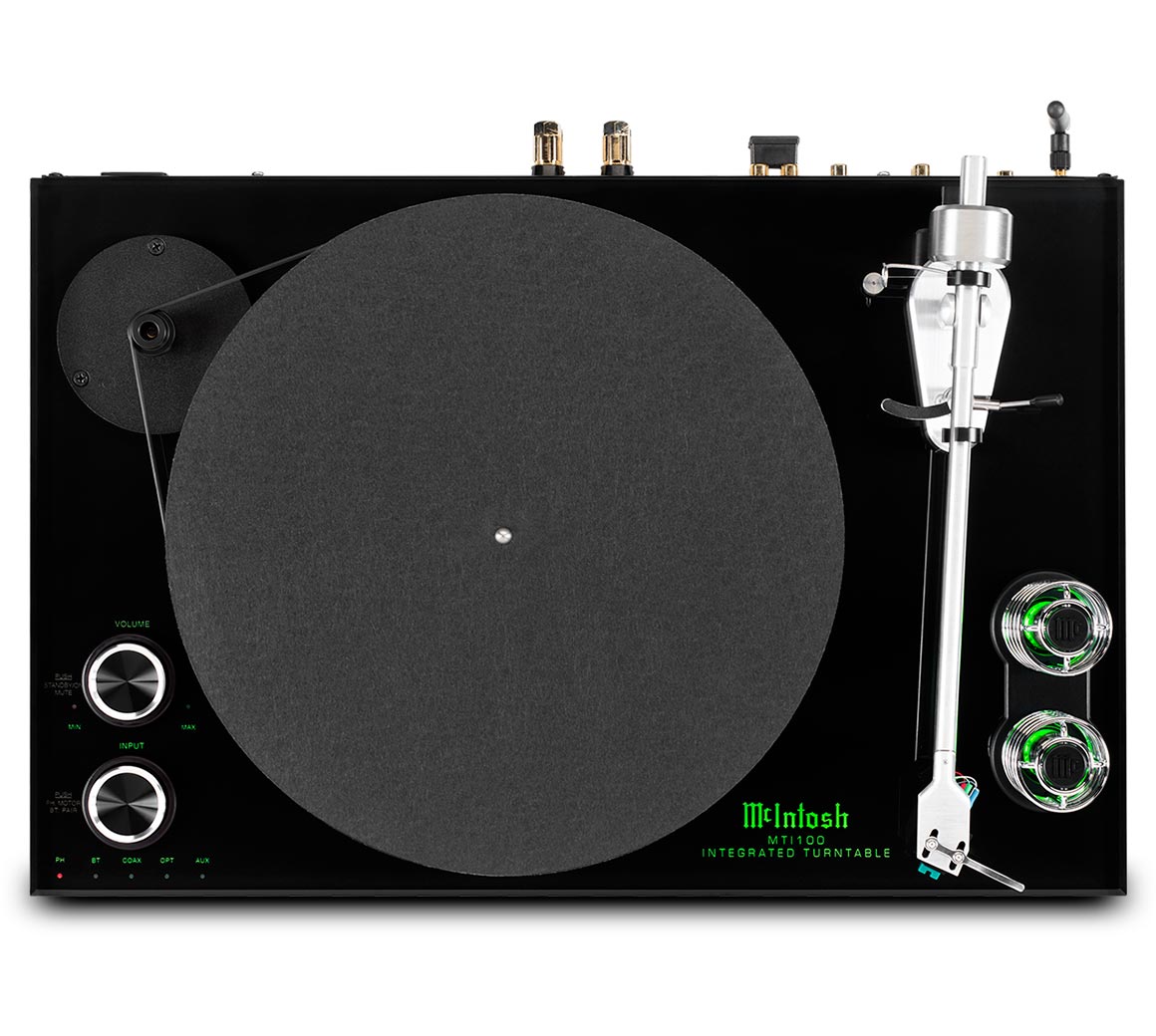

Απλά ηχεία χρειάζεται για να ακούσουμε το νέο πικάπ της McIntosh που εμπεριέχει ενισχυτή, λαμπάτο προενισχυτή και Bluetooth.
Aν πάλι δεν έχετε ηχεία μπορείτε να το ακούσετε με ακουστικά, αφού έχει τέτοια υποδοχή.
Επιπλέον διαθέτει έξοδο sub-out για σύνδεση υπογούφερ. Είναι ένα πικάπ με πλατό αλουμινίου βάρους 3,18 κιλών, βραχίονα επίσης από αλουμίνιο και κινητήρα AC. H κεφαλή του πικάπ είναι η κινητού μαγνήτη Olympia της Sumiko και ο ενισχυτής φθάνει τα 80W τάξης Δ στα 4Ω.

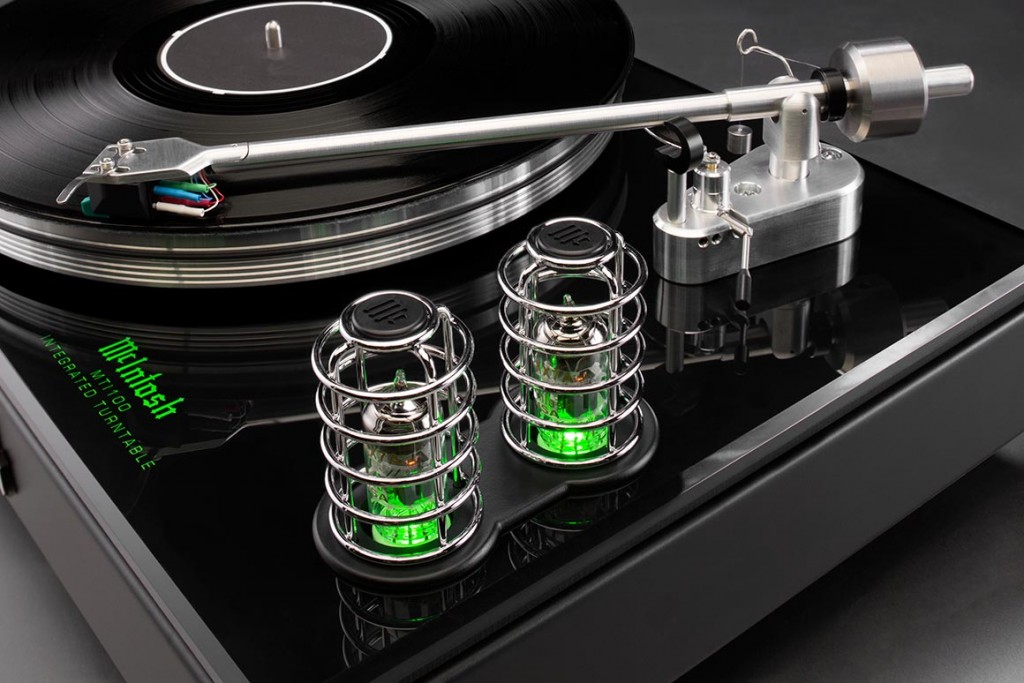

Οι λυχνίες του προενισχυτή είναι δύο 12ΑΧ7 οι οποίες μάλιστα ξεχωρίζουν στο επάνω μέρος του πλαισίου του πικάπ. Το Bluetooth είναι μόνο είσοδος ώστε να μπορούμε να χρησιμοποιούμε το σύστημα MTI100 με αντίστοιχες πηγές.

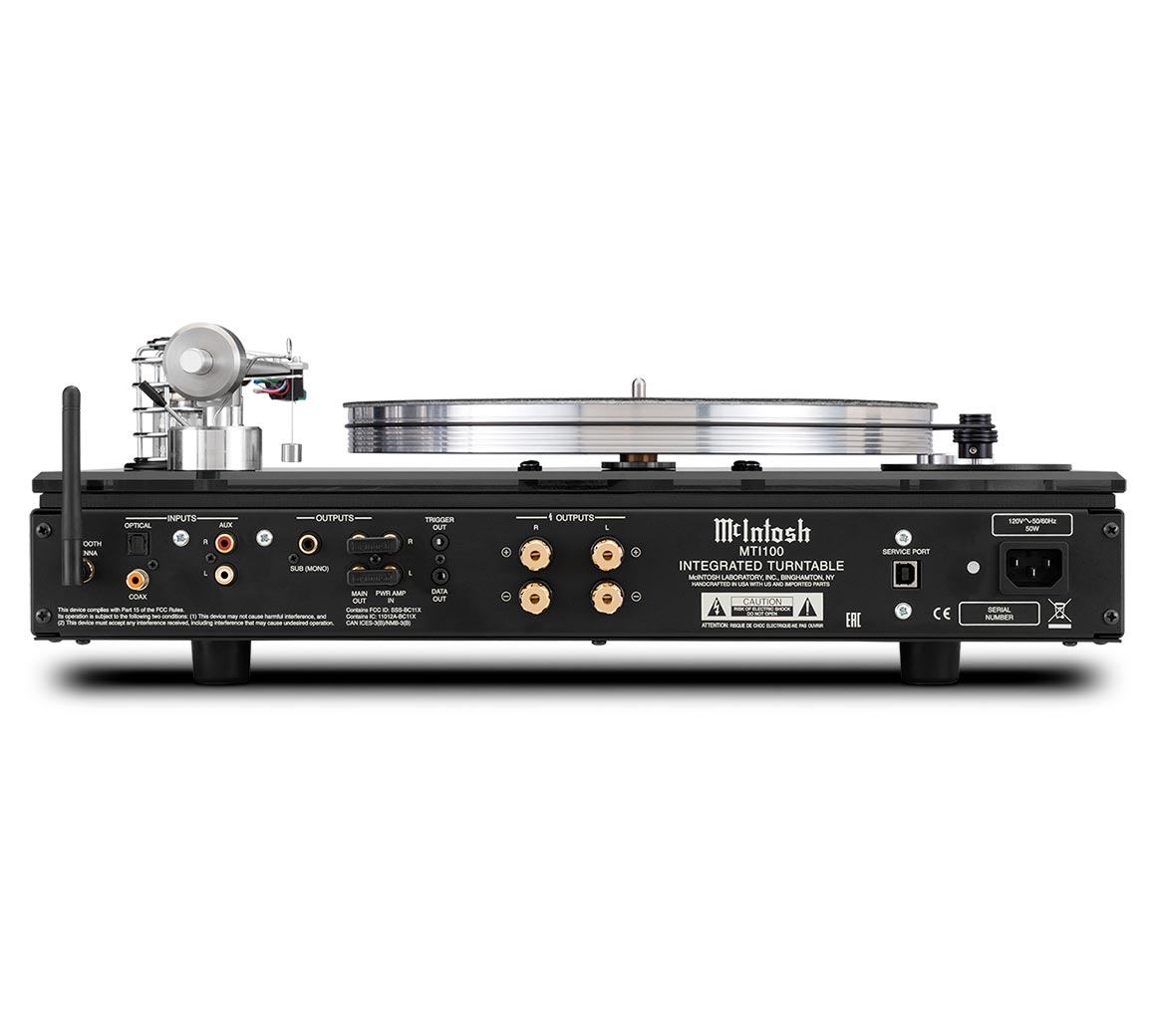

Υπάρχει μια ψηφιακή ομοαξονική και μια οπτική είσοδος, μια αναλογική RCA γραμμής και ακροδέκτες για τα καλώδια των ηχείων.
Πάνω από όλα όμως είναι ένα πανέμορφο σύστημα με τους γνωστούς τόνους και το γυαλί που χαρακτηρίζει τα προϊόντα της McIntosh
http://www.hxoseikona.gr/nea/6904-mcintosh-mti100.html
Specifications
CARTRIDGE SPECIFICATIONS
- Cartridge Type
Moving Magnet - Output Level
4mV at 1kHz - Load Impedance
47k Ohms - Frequency Response
12Hz to 30kHz - Channel Separation
30dB at 1kHz - Compliance
12 x 10-6 cm/dyne - Recommended Tracking Force
2.0 g - Channel Difference
Less than 1dB at 1kHz - Total Mass
6.5 g - Stylus
Elliptical - Cantilever Material
Aluminum
- Bearing
Lateral type bearing - Arm Tube
Damped machined aluminum - Counterweight
Concentric - Adjustments
None
- Playback Speeds
33-1/3 and 45 rpm - Motor Type
Permanent magnet AC synchronous - Speed Control
Manual speed change via a 2 speed pulley - Platter
Aluminum - Platter Bearing
Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings
- Stereo Outputs Unbalanced
1 (bridged to AMP IN) - Stereo Inputs Unbalanced
1 - Digital Coaxial Input
1 - Digital Optical Input
1 - Subwoofer Output
1 - Wireless Input
High Definition Bluetooth 4.2
- Power Control Input
0 - Power Control Output
1 - Platter Light
N/A - Speed Control Fine Adjustment
No
- Power Output per Channel
50 Watts into 8 Ohms
80 Watts into 4 Ohms - Number of Channels
2 - Speaker Impedance
4 or 8 Ohms - Rated Power Band
20Hz to 20kHz - Total Harmonic Distortion
0.5% (Amplifier)
0.2% (Preamplifier) - Dynamic Headroom
1.0dB (8 Ohms)
1.3dB (4 Ohms) - Signal To Noise Ratio (Moving Magnet)
75dB - Signal To Noise Ratio (High Level)
90dB - Damping Factor
8 Ohms: >200
4 Ohms: >100 - Maximum Output (Balanced / Unbalanced)
9V Unbalanced
https://www.mcintoshlabs.com/products/lifestyle/MTI100
