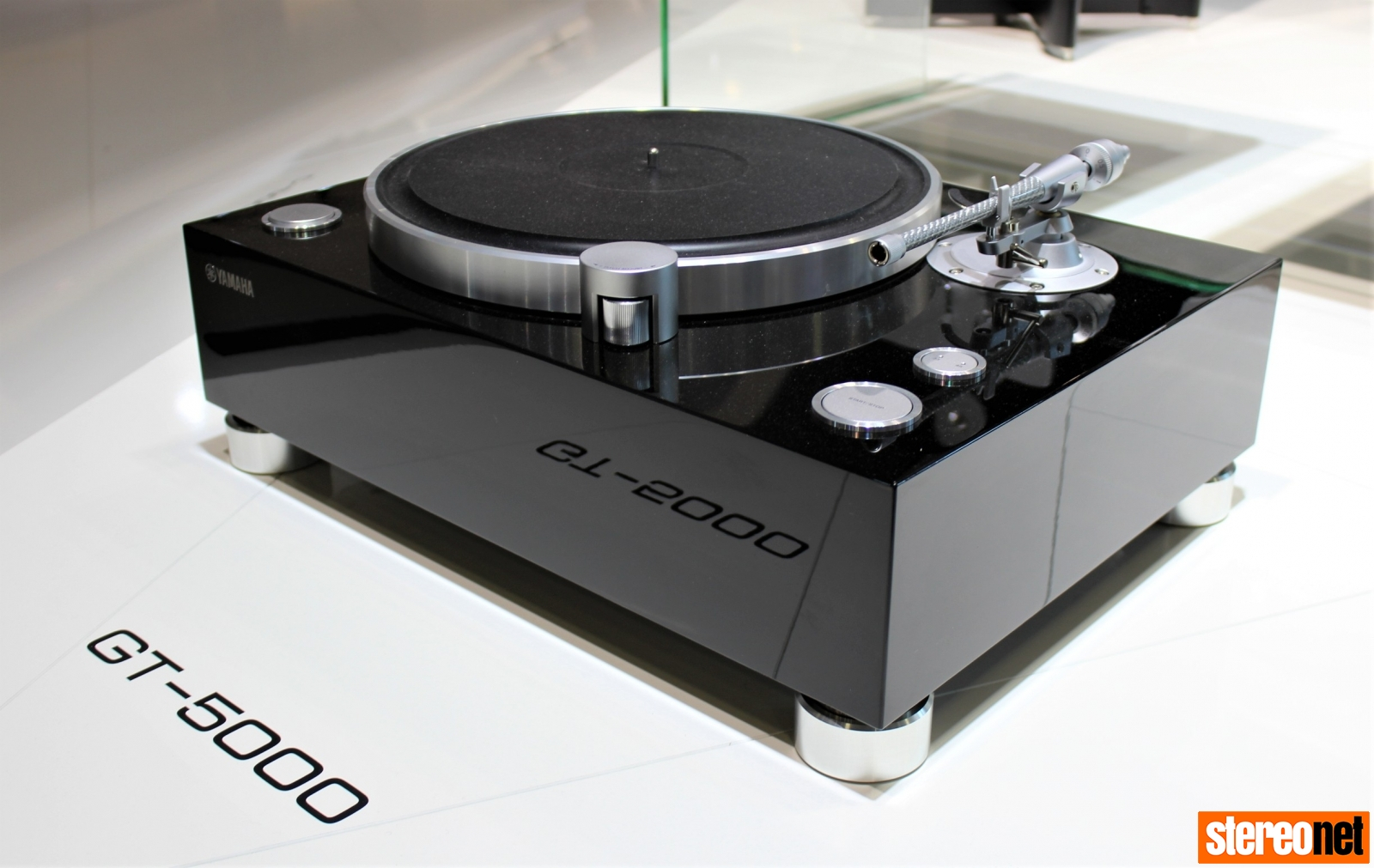

GT-5000 TURNTABLE
The new GT-5000 Turntable draws inspiration and design characteristics from the acclaimed Yamaha GT (Gigantic and Tremendous) series and presents a new era of Hi-Fi from Yamaha. A custom belt-drive system with quartz timing minimizes the influence of the motor for an open, smooth sound. A short, straight tonearm made of carbon fiber and copper-plated aluminum delivers superior rigidity, weight balance and mechanics resulting in improved traceability.

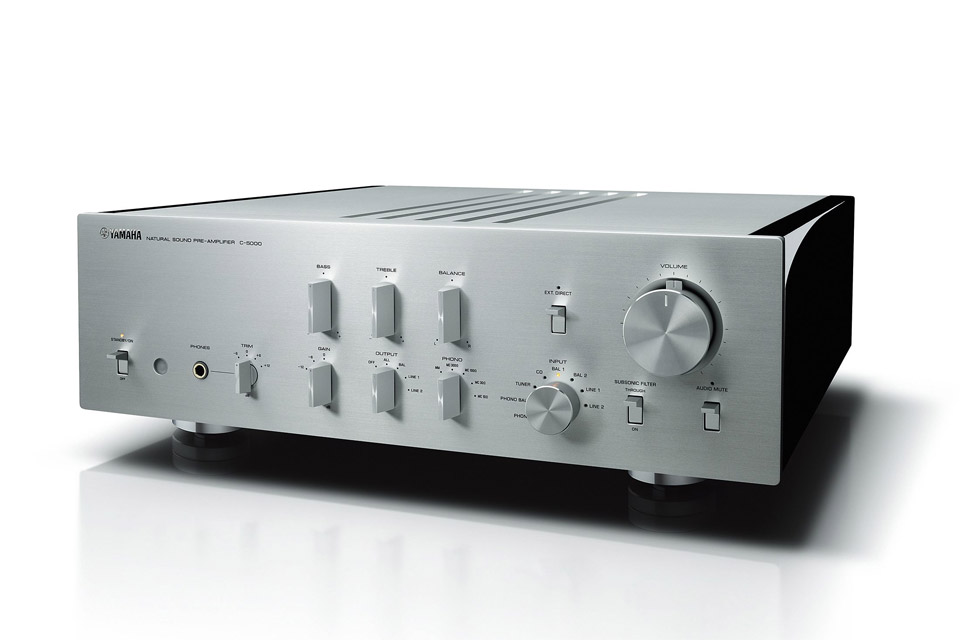

C-5000 PRE-AMPLIFIER
The C-5000 Pre-Amplifier features fully balanced discrete circuits, with each channel resembling a mirror image of the other, allowing all signal transmission, power supply and ground connections to be minimized in a revolutionary way. Independent, dual toroidal transformers for the right and left channels deliver excellent channel separation and voltage stability. A patented design “floats” the phono EQ, input amp and line amp stages – removing the influence of ground noise from the signal.

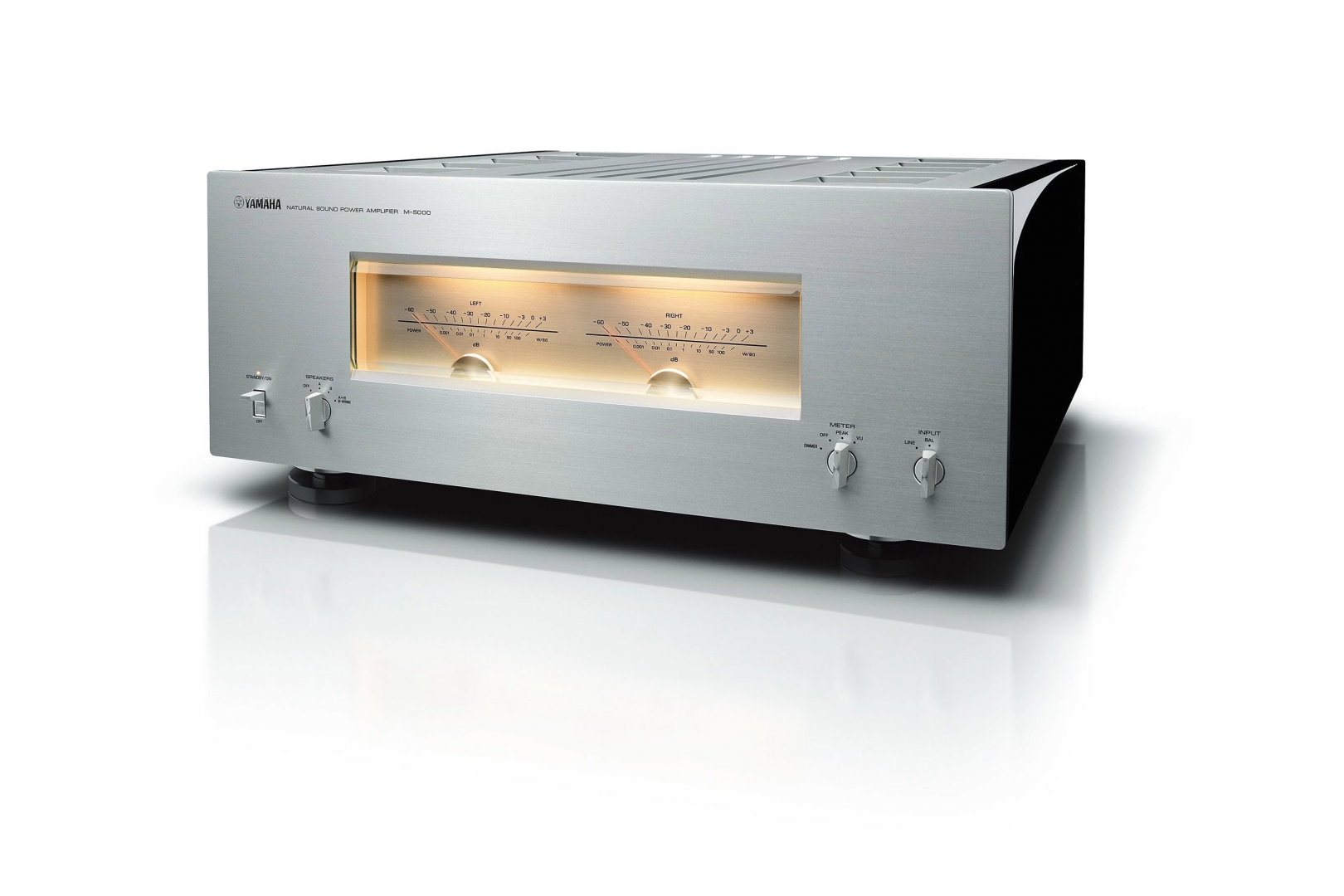

M-5000 POWER AMPLIFIER
The M-5000 Power Amplifier features a patented floating and balanced amplifier design, which reduces the signal path as much as possible, minimizing energy loss and achieving lower impedance for high-fidelity performance. Unlike conventional power amplifier designs, the power supply of the M-5000 “floats” from the ground which removes undesirable impacts of minute voltage fluctuations or ground noise.

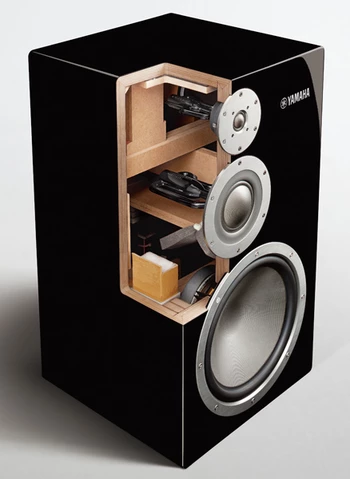

NS-5000 SPEAKERS
The NS-5000 Speakers are designed to reproduce sound in the purest and most realistic way. They incorporate tweeter, midrange and woofer diaphragms made of Zylon, a high-strength and lightweight synthetic fiber providing exceptional acoustic velocity and the ability to reproduce the most delicate details of audio without the sharp resonance peak inherent of harder materials.

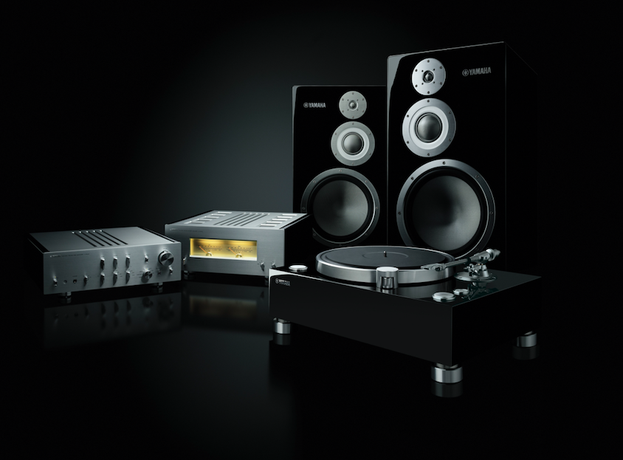

Yamaha Announces New 5000 Series
The following is a press release issued by Yamaha. Buena Park, California | October 23, 2019 - Yamaha is making the biggest statement in the Hi-Fi market
www.theabsolutesound.com
| Specifications | |
|---|---|
| NS-5000 | |
| Type | 3 way Bookshelf Bass-reflex Type |
| Woofers | 30 cm (12") cone type |
| MidRange Driver | 8 cm (3-1/4") dome type |
| Tweeter | 3 cm (1-1/4") dome type |
| Frequency Response | 26 Hz-40 kHz (-10dB), -100 kHz (-30dB) |
| Nominal Input Power | 200 W |
| Maximum Input Power | 600 W |
| Sensitivity | 88 dB / 2.83 V/1 m |
| Crossover Frequencies | 750 Hz / 4.5 kHz |
| Impedance | 6 ohms (minimum 3.5 ohms) |
| Dimensions (W x H x D) | 395 x 690 x 381 cm; 15-1/2” x 27-1/8” x 15” (with speaker terminals) |
| Weight | 35.0 kg; 77.2 lbs. / unit |
| C-5000 |
|---|
| Stereo Amplifier / Receiver | ||
|---|---|---|
| C-5000 | ||
| Audio Specifications | Input Terminal | RCA:6 (PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN), BAL:4 (PHONO, BAL 1, BAL 2, EXT IN), TRIGGER IN: 1 (Slave mode), REMOTE IN:1 |
| Output Terminal | RCA:3 (LINE 2 OUT, LINE 1, LINE 2), BAL:1 (BAL), TRIGGER OUT: 2 (Master mode), REMOTE OUT:1 | |
| Rated Output Voltage | [Input 200 mV, 20 Hz-20 kHz, 0.01% THD] (BAL BYPASS) 2 Vrms / 150 ohm, (BAL ATT) 1 Vrms / 150 ohm, (LINE 1 / LINE 2) 1 Vrms / 150 ohm), (LINE 2 RECOUT) 200 mVrms / 1.2 kohm | |
| Maximum Output Voltage | [1 kHz, 0.05% THD] (BAL) 6 Vrms, (LINE 1 / LINE 2) 3 Vrms, (LINE 2 RECOUT) 3Vrms | |
| Input Sensitivity / Input Impedance | [BAL / LINEOUT: 1 V] (BAL) 200 mVrms / 52 kohm, (LINE,etc) 200 mVrms / 47 kohm, [LINE 2 RECOUT, 150mV (1 kHz) ] (PHONO MC 300 ohms) 100 uVrms / 300 ohms, (PHONO MC 100 ohm) 100 uVrms / 100 ohms, (PHONO MC 30 ohm) 100 uVrms / 30 ohm, (PHONO MC 10 ohm) 100 uVrms / 10 ohm, (PHONO MM BAL(UNBAL)) 2.5 mVrms / 52 k(47 kohm), (EXT IN) 1 Vrms / 20 kohm | |
| Maximum Input Signal Voltage | [LINE2 REC (1kHz, 0.05% THD)] (BAL) 2.8 Vrms, (BAL ATT) 5.6 Vrms, (LINE,etc) 2.8 Vrms,(PHONO MC) 2 mVrms, (PHONO MM) 50 mVrms, ［BAL/LINEOUT (1kHz 0.05% THD)］(EXT IN) 5.6 Vrms | |
| Frequency Response | [JEITA, Load 22 kohm] (BAL/LINE, etc) +0 / -3 dB (10 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz) | |
| Total Harmonic Distortion Plus Noise | [JEITA, Input: 0.5 V] 0.0100% (BAL [LINE, etc.] to BAL [LINE], 20 Hz-20 kHz), 0.0200% (MM / MC BAL [UNBAL] to LINE 2 RECOUT, 20 Hz-20 kHz) | |
| Channnel Separation | [JEITA, Input 1.0 kohm terminated, 1 kHz / 10 kHz] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL) | |
| Function Separation | [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 75 dB or higher (MC, BAL / UNBAL), 95 dB or higher (MM, BAL / UNBAL) | |
| Signal-to-Noise Ratio | [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, 300 ohms, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL) | |
| Residual Noise | [IHF-A network] 3 uV (BAL / LINE OUT) | |
| Tone Control Characteristics | (BASS) Boost / Cut [30 Hz] ±9 dB, Turnover Frequency 350 Hz, (TREBLE) Boost / Cut [20 Hz] ±9 dB, Turnover Frequency 3.5 kHz | |
| Headphone Jack Rated Output Power | 35 mW + 35 mW (CD, etc. [1 kHz, 32 ohm, 0.2% THD]) | |
| Deviations from RIAA Equalizer | ±0.5 dB (MC / MM BAL [UNBAL]) | |
| Subsonic Filter | 15 Hz: -3 dB (MC / MM BAL [UNBAL]) | |
| General | Power Consumption | 60 W |
| Standby Power Consumption | 0.2 W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimension (W×H×D) | 435 x 142 x 451 mm; 17-1/8” x 5-5/8” x 17-3/4” | |
| Weight | 19.1 kg; 42.11 lbs. |
Post automatically merged:
| Stereo Amplifier / Receiver | ||
|---|---|---|
| M-5000 | ||
| Audio Specifications | Input Terminal | RCA: 1, BAL: 1, TRIGGER IN: 1 |
| Output Terminal | TRIGGER OUT: 1 | |
| Rated Output Power | 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven) | |
| Dynamic Power Per Channel | [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm) | |
| Dynamic Headroom | 0.97 dB (8 ohm) | |
| Maximum Output Power | 220 W + 220 W (4 ohm, 1 kHz, 0.7% THD) | |
| IEC Output Power | 125 W + 125 W (8 ohm, 1 kHz, 0.02% THD) | |
| Maximum Effective Output Power | [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm) | |
| Power Bandwidth | 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W) | |
| Damping Factor | 300 or higher (8 ohm, 1 kHz) | |
| Input Sensitivity / Input Impedance | (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion] | |
| Maximum Input Signal Voltage | (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD] | |
| Frequency Response | +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz) | |
| Total Harmonic Distortion Plus Noise | 2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms) | |
| Channnel Separation | 90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated) | |
| Signal-to-Noise Ratio | [IHF-A network, Input 1 kohm shorted] 110 dB | |
| Residual Noise | [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms | |
| Meter Class | The 2.5th class | |
| General | Power Consumption | 400 W |
| Standby Power Consumption | Off Mode: 0.1 W, Standby Mode: 0.2 W | |
| Maximum Power Consumption | 800 W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimension (W×H×D) | 435 x 180 x 464 mm; 17-1/8” x 7-1/8” x 18-1/4” | |
| Weight | 26.9 kg; 59.3 lbs. |
